Using this amplifier with a Pioneer
plasma television
If you have a Pioneer plasma television, you can use an
SR+ cable
1
to connect it to this unit and take advantage
of various convenient features, such as automatic video
input switching of the plasma television when the input
is changed.
2
Important
• You can’t use the SR+ features when HDMI Control
is set to ON. Make sure to set HDMI Control to OFF
when you use the SR+ features (page 92).
• If you connect to a Pioneer plasma television using
an SR+ cable, you will need to point the remote
control at the plasma television remote sensor to
control the amplifier. In this case, you won’t be able
to control the amplifier using the remote control if
you switch the plasma television off.
• Before you can use the extra SR+ features, you need
to make a few settings in the amplifier. See
The Input
Setup menu on page 94 and SR+ Setup for Pioneer
plasma televisions on page 97 for detailed
instructions.
•

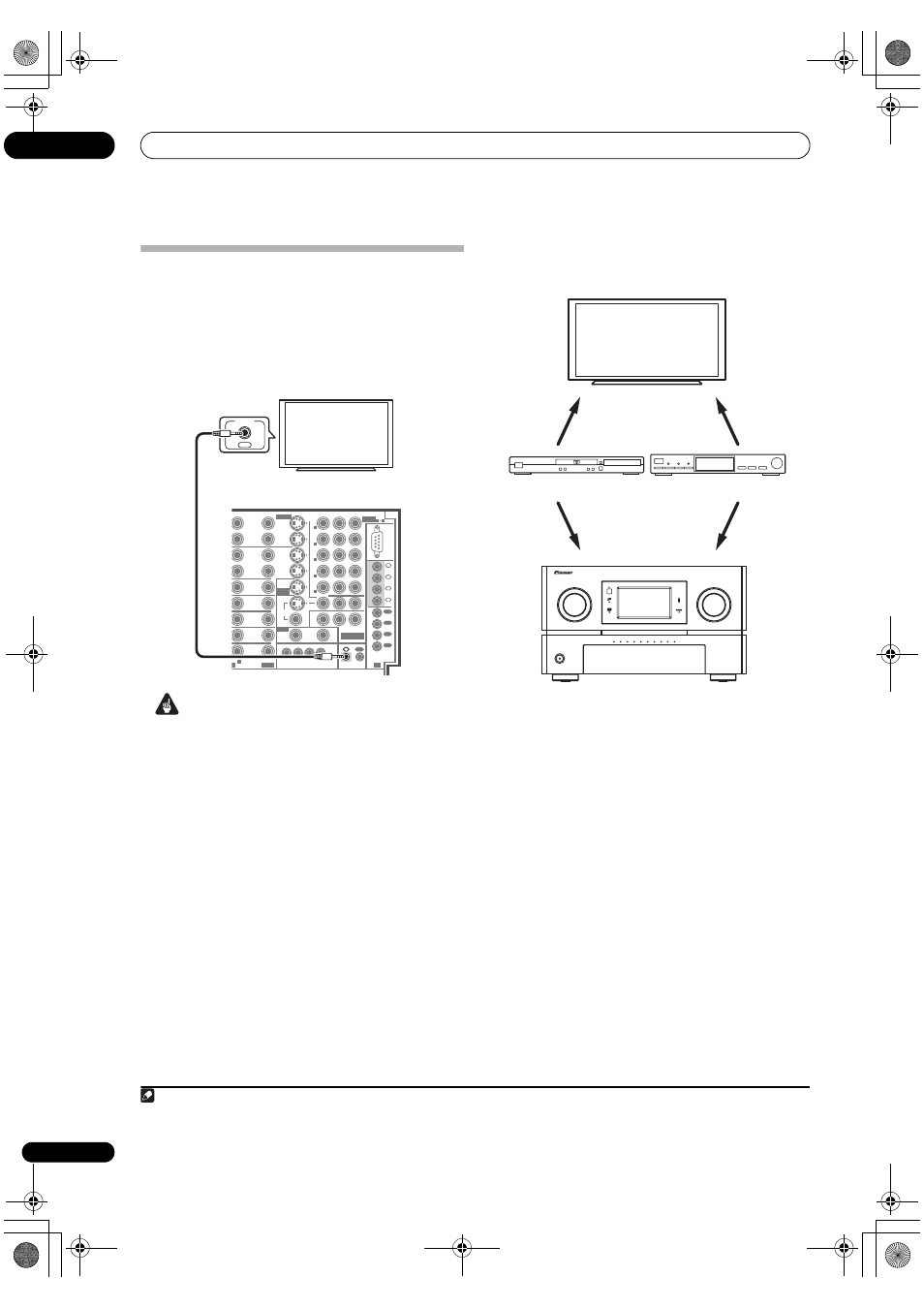

Use a 3-ringed miniplug SR+ cable to connect the
CONTROL IN jack of this amplifier with the CONTROL
OUT jack of your plasma television.
To make the most of the SR+ features, you should
connect your source components (DVD player, etc.) in a
slightly different way to that described in this chapter. For
each component, connect the video output directly to the
plasma television, and just connect the audio (analog
and/or digital) to this amplifier.
Note
1 The 3-ringed SR+ cable from Pioneer is commercially available under the part number ADE7095. Contact the Pioneer Customer Support division for
more information on obtaining an SR+ cable (you can also use a commercially available 3-ringed mini phone plug for the connection).
2 This amplifier is compatible with all SR+ equipped Pioneer plasma televisions from 2003 onward.
