Connecting your equipment 03
21
En
Connecting your Blu-ray disc player

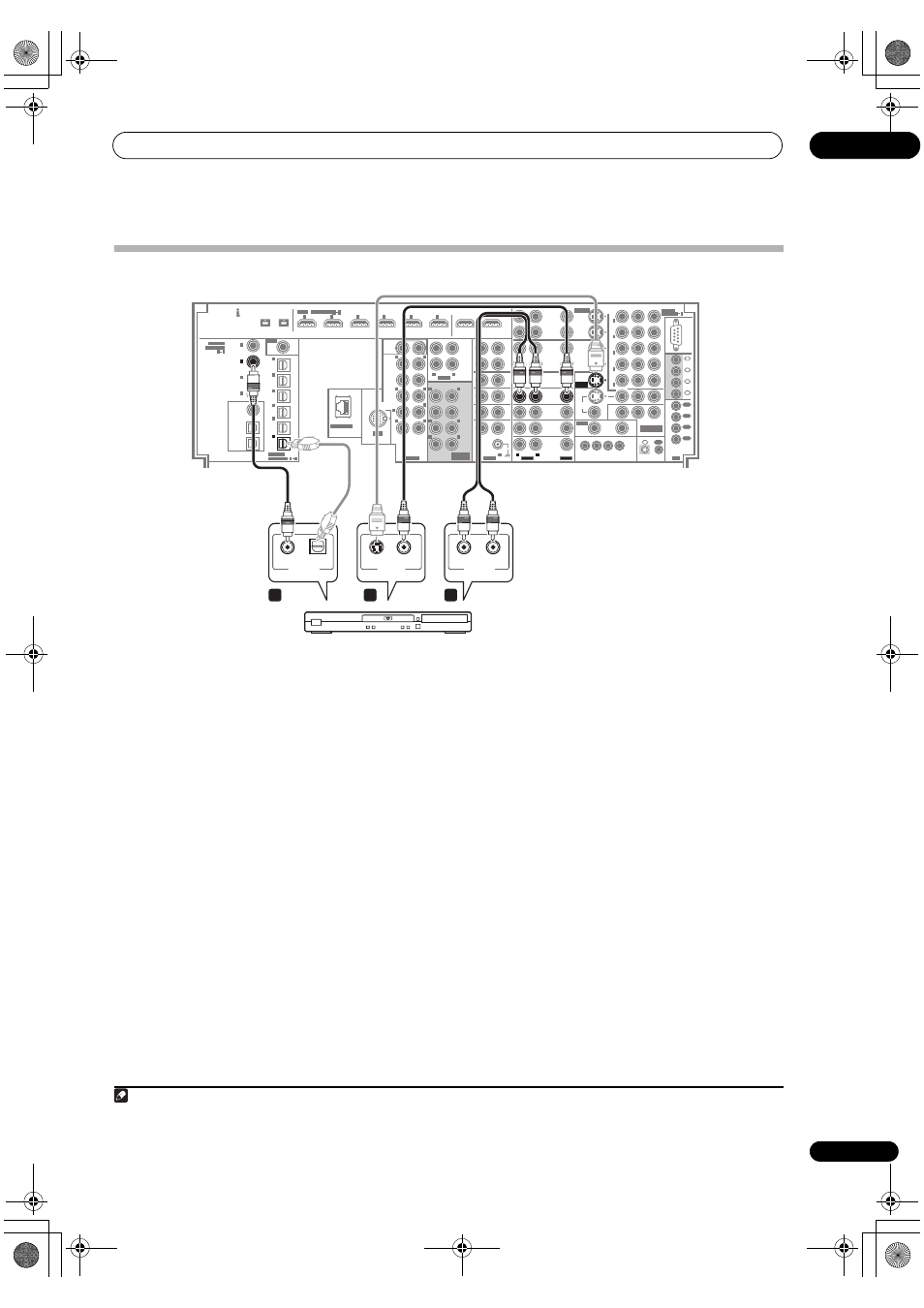

The diagram shows a basic setup of this amplifier
together with a Blu-ray disc player, with S-Video or
composite video connections. See also
Using the
component video jacks on page 24 if your Blu-ray disc
player has component video inputs/outputs. If your Blu-
ray disc player offers multi-channel analog audio
outputs, see
Connecting the multichannel analog inputs
on page 60.
1 Connect a composite video output on your Blu-ray
disc player to the BD VIDEO input.
Connect using a standard video cable or an S-Video
1
cable.
2 Connect an coaxial-type 2 digital audio output on
your Blu-ray disc player to the COAXIAL IN 2 (BD)
input.
Use a coaxial cable designed for digital audio.
3 Connect the stereo audio outputs on your Blu-ray
disc player to the BD AUDIO inputs.
Connect using a stereo RCA/phono jack cable.
• If your Blu-ray disc player has multi-channel analog
outputs, you can connect these instead. See also
Connecting the multichannel analog inputs on
page 60.
S400 S400
(AUDIO)
(For LD)
ASSIGNABLE 6 1
ASSIGNABLE
L R VIDEO AUDIO L R AUDIO
L
L
L
R
R
L R
R
L
L
R
R
L R
L R
AUDIO
ZONE3 OUT
ZONE2 OUT
ZONE2 OUT
ZONE3 OUT
MONITOR OUT OUT
IN
1
IN
2
IN
3
IN
4
1
OUT
2
OUT
3
OUT
4
IR
CONTROL
COMPONENT
VIDEO
ASSIGN-
ABLE
ASSIGN-
ABLE
VIDEO
IN OUT
SUB
WOOFER
FRONT
CENTER
1 2
1 2
EXTRA
SUR- ROUND
(Single) SUB W.
FRONT
CENTER
SUR- ROUND
SUR- ROUND BACK
SURROUND
BACK
PRE OUT MULTI CH IN
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 OUT1
(HDMI CTRL) OUT2
HDMI
RF IN
IN
(TV) 1
IN
(SAT)
2
IN (DVR/
VCR 1) 3
IN (DVR/
VCR 2)
4
IN
(VIDEO/ GAME
1)
5
IN (CD-R/
TAPE/
MD)
6
(DVD/LD)
2 IN 1
(BD)
IN 2
(CD) IN 3
(SACD)
IN 4
COAXIAL
1 4
ASSIGNABLE
OPTICAL
1 6
ZONE2
OUT
SOURCE
OUT
ZONE3
/SOURCE
OUT
1 2 3 4
12 V TRIGGER
(DC OUT 12V TOTAL 250 mA MAX)
RS-
232C
VIDEO/
GAME 1
IN
SAT IN IN
IN
TUNER
IN
IN
IN
CD-R/ TAPE/ MD
REC SEL OUT
CD
SACD
PHONO
TV IN
BD IN
DVD/LD IN
IN IN
IN
(DVD/LD)
IN (DVD/LD)
1
1 5
IN
(VIDEO/
GAME 1)
3
IN
(BD) 2
IN
(DVR/VCR 1) 4
IN
(DVR/VCR 2) 5
IN
ZONE2 OUT
DVR/ VCR 2
DVR/ VCR 1
REC SEL OUT REC SEL OUT
IN
REC SEL OUT REC SEL OUT
S-VIDEO Y P B P R
LAN (10/100)
IN
iPod
ASSIGN-
ABLE
IN (DVD/LD)
BD IN
L R VIDEO AUDIO
(BD)
IN 2
IN (CD-R/
TAPE/
MD)
6
S-VIDEO OPTICAL
DIGITAL OUT VIDEO OUT
COAXIAL AUDIO R L
ANALOG OUT
3 2 4
SC-LX90
Blu-ray disc player
Note
1 See The Input Setup menu on page 94 to assign the S-VIDEO input to the BD input function if you make this connection.
2 If your Blu-ray disc player only has an optical digital output, you can connect it to one of the optical inputs on this amplifier using an optical cable. When
you set up the amplifier, you’ll need to tell the amplifier which input you connected the player to (see
The System Setup menu on page 40).
