Page 9
www.siouxchief.com 8

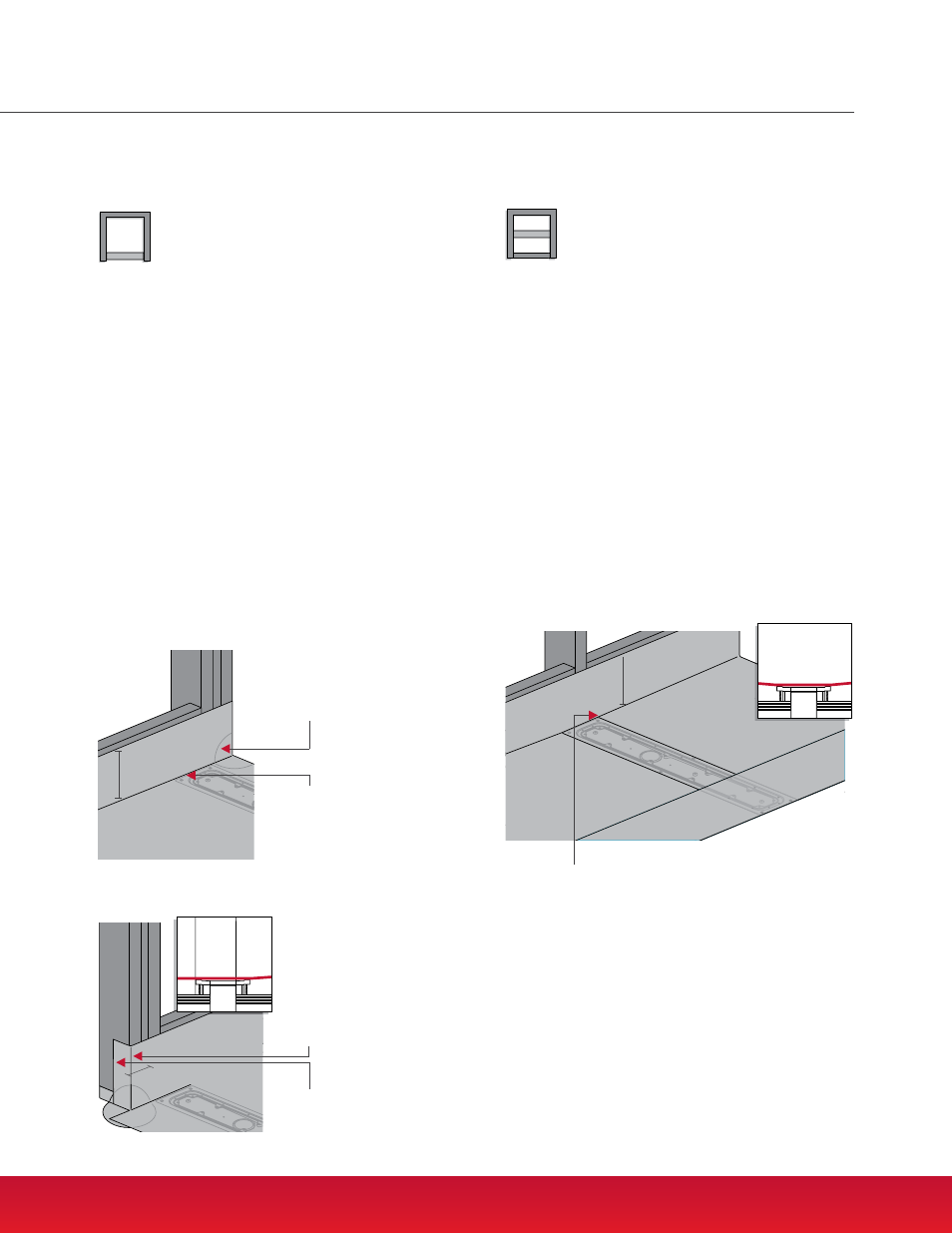

Drain at Curb-less Entry
Flashing must turn up the walls a minimum of 3"
above shower curb and 6" above floor in showers
without curbs.
Measure width of shower floor across drain base.
Lay flashing flat. Measure and mark flashing.
Cut, fold and crease to proper size and fit.
Note: Do not secure flashing at this time.
Inside Shower
7. Prepare Flashing
(cont.)
Fold
6" min.
Outside Corners
Under Flashing
Outside Shower
Fold
2" min.
Outside Corners
Under Flashing
Drain On Center
Flashing must turn up the walls a minimum of 3"
above shower curb and 6" above floor in showers
without curbs.
Measure width of shower floor across drain base.
Lay flashing flat. Measure and mark flashing.
Fold and crease for upturns.
Note: Do not secure Shower Pan Liner at this time.
Fold
6" min.
