Secure flashing – Sioux Chief Linear Shower Drain - StreamLine User Manual
Page 10
9 www.siouxchief.com

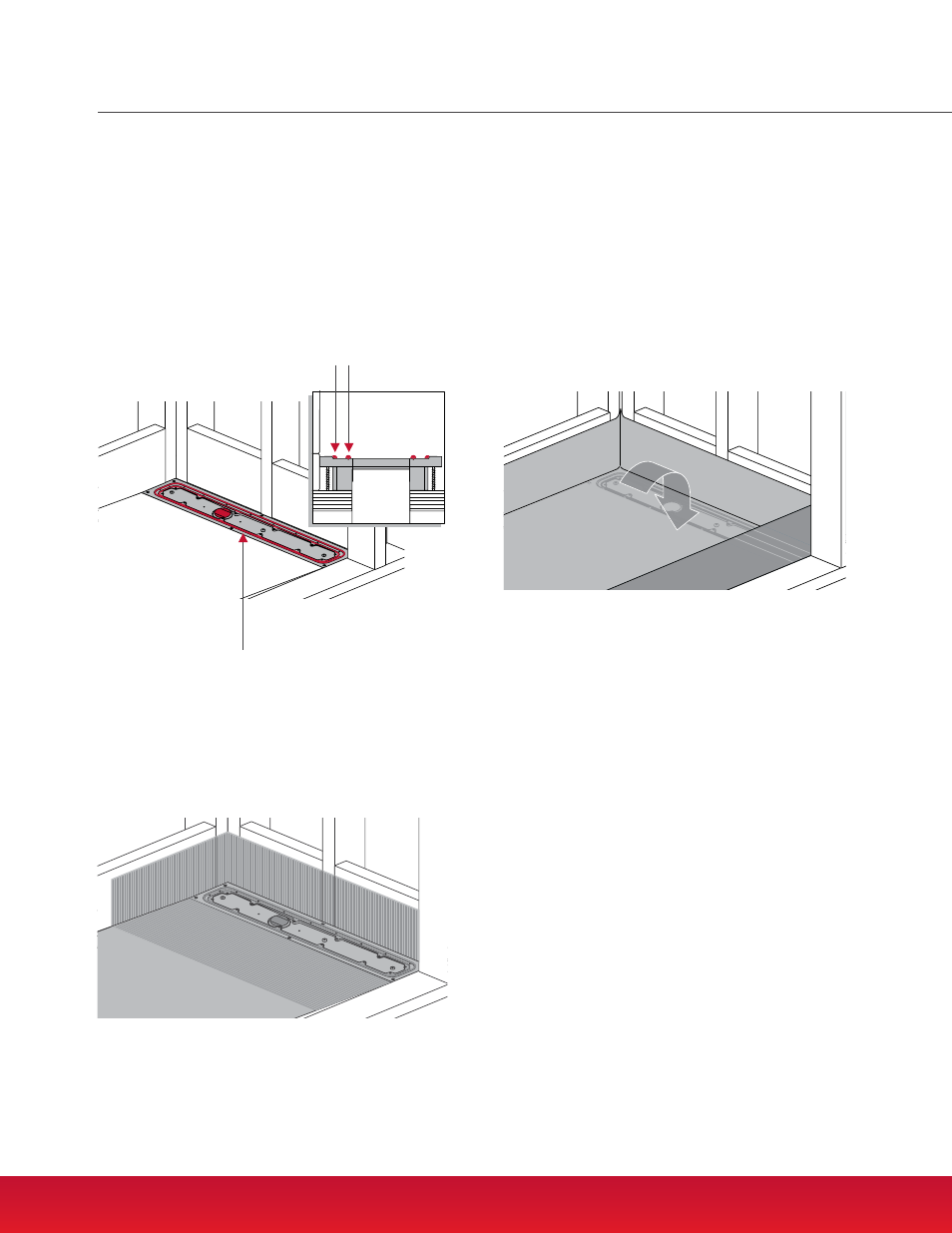

8. Secure Flashing
A. Seal Drain Base
Lift out flashing. Remove tape, leaving tape over drain
hole only.
Apply a 1/8" continuous bead of NobleSealant 150
around chamfer on base flange and another bead in
groove on drain base.
B. Apply Adhesives
Apply latex-modified thin-set to mortar bed, walls and
curb as needed. Apply NobleSealant 150 to any pre-
formed corners.
C. Press Into Sealant and Adhesive
Align membrane and firmly press all areas of membrane into
adhesive on walls, floor, curb and sealant on drain base and
any pre-formed corners.
Adhesive
2 Beads
NobleSealant 150
Chamfer
Groove
Installation Guide
