Wall preparation, Sub-floor preparation, Waste pipe – Sioux Chief Linear Shower Drain - StreamLine User Manual
Page 4
3 www.siouxchief.com

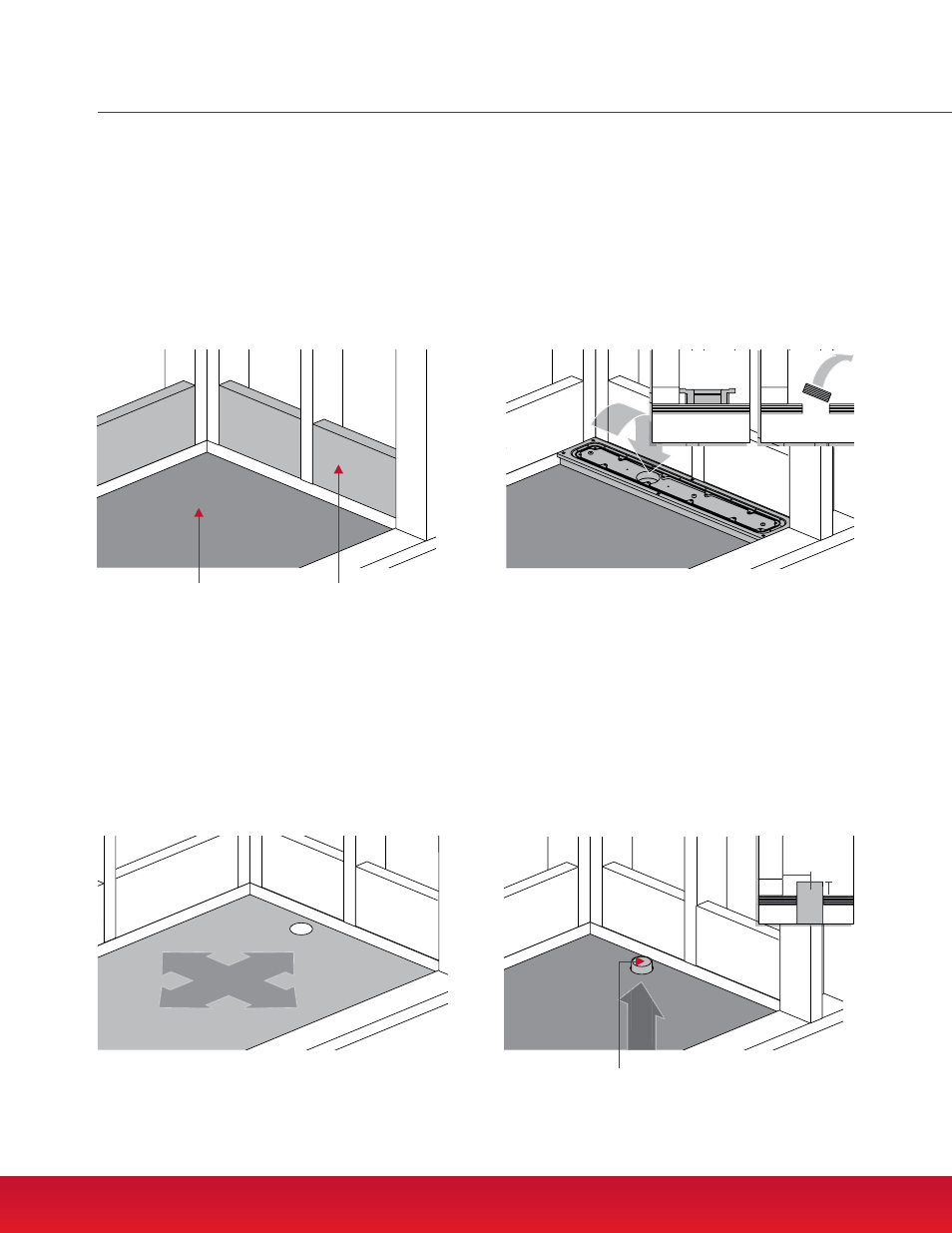

1. Wall Preparation
Blocking
Blocking between studs may be needed for flashing and
membrane attachment prior to drain installation.
2. Sub-Floor Preparation
Caution:
Confirm that sub-floor meets all local code requirements and
the Tile Council of North America’s (TCNA) guidelines.
Check for Level. Clean
Sub-floor must be smooth and level. Clean sub-floor.
Blocking
Sub-Floor
Level
3. Waste Pipe
Option A: No Waste Pipe Installed
Place, Mark and Cut
Place drain base in desired location on sub-floor. Mark
waste pipe location on sub-floor. Cut opening in sub-floor
to access plumbing below.
Install Waste Pipe
Follow local plumbing codes to properly install and
secure 2" Sch. 40 ABS or PVC waste pipe 3/4" above
sub-floor.
Note: Waste pipe may be installed after fastening drain base if
accessible from below.
Place
Mark
Cut Hole
2" Sch. 40 ABS/PVC Pipe
3/4"
2-1/4"
