Page 5
www.siouxchief.com 4
Must Fit Flush to Sub-Floor
Waste Pipe

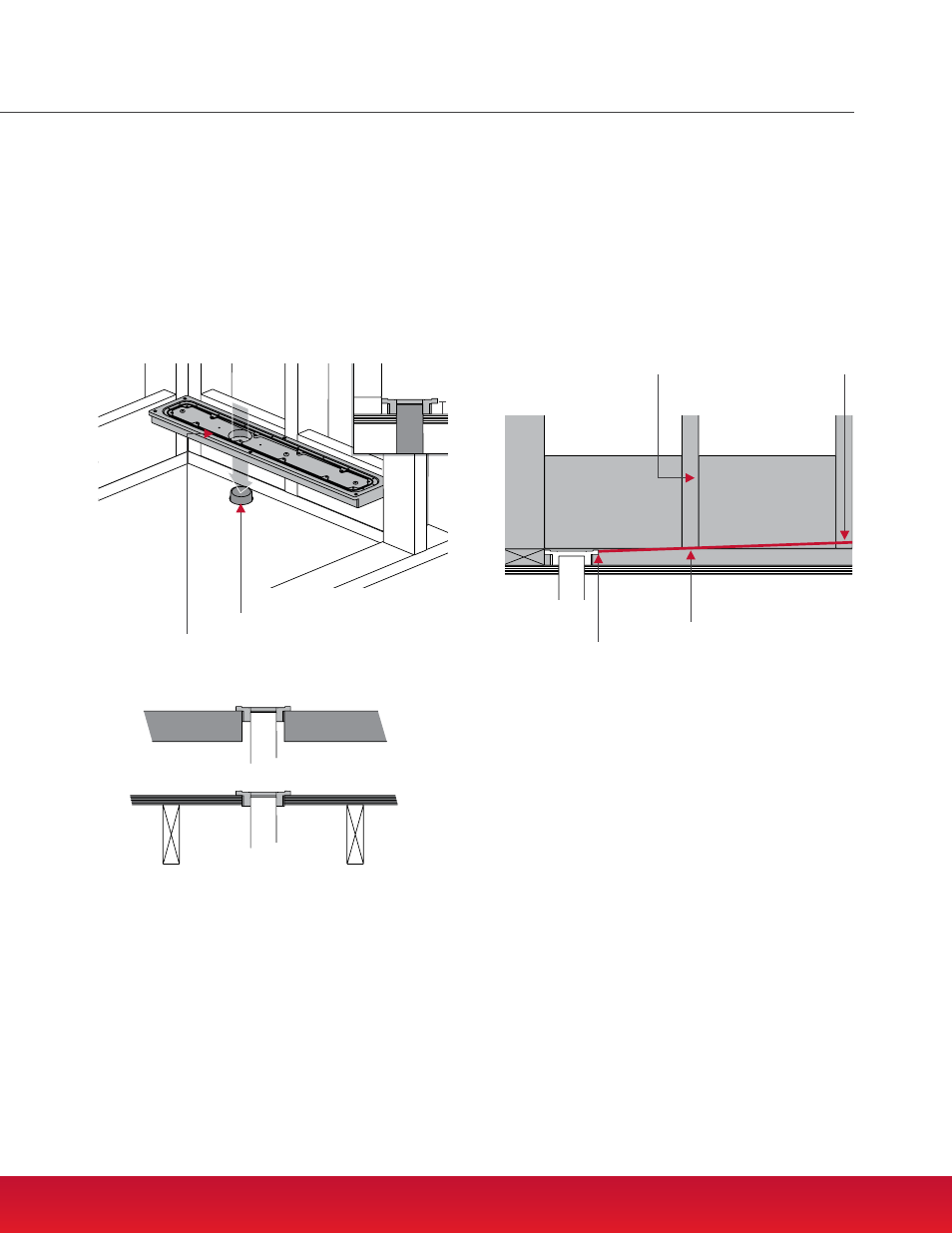

Option B: Waste Pipe Pre-Installed
Dry fit drain base over location of existing waste pipe. If
location does not allow drain base to fit flush against at
least 2 shower walls, move location of plumbing to allow
for proper installation. May also require moving existing
studs and toe plate.
Dry Fit
Alternate Drain Mounting Methods
Recessed mount in concrete substrate
Recessed mount in wood sub-floor
Note:
Any modification of substrate must comply with local building codes.
3/4"
4. Preparation for Sloped Mortar Bed
Mark Bed Slope
1/4" per foot slope to drain is required.
Front Edge of Drain Base
1/4" Per Foot Slope
Mark
Studs
Installation Guide
