Re-install strainer, Adjust strainer height, Tile and grout – Sioux Chief Linear Shower Drain - StreamLine User Manual
Page 13
www.siouxchief.com 12

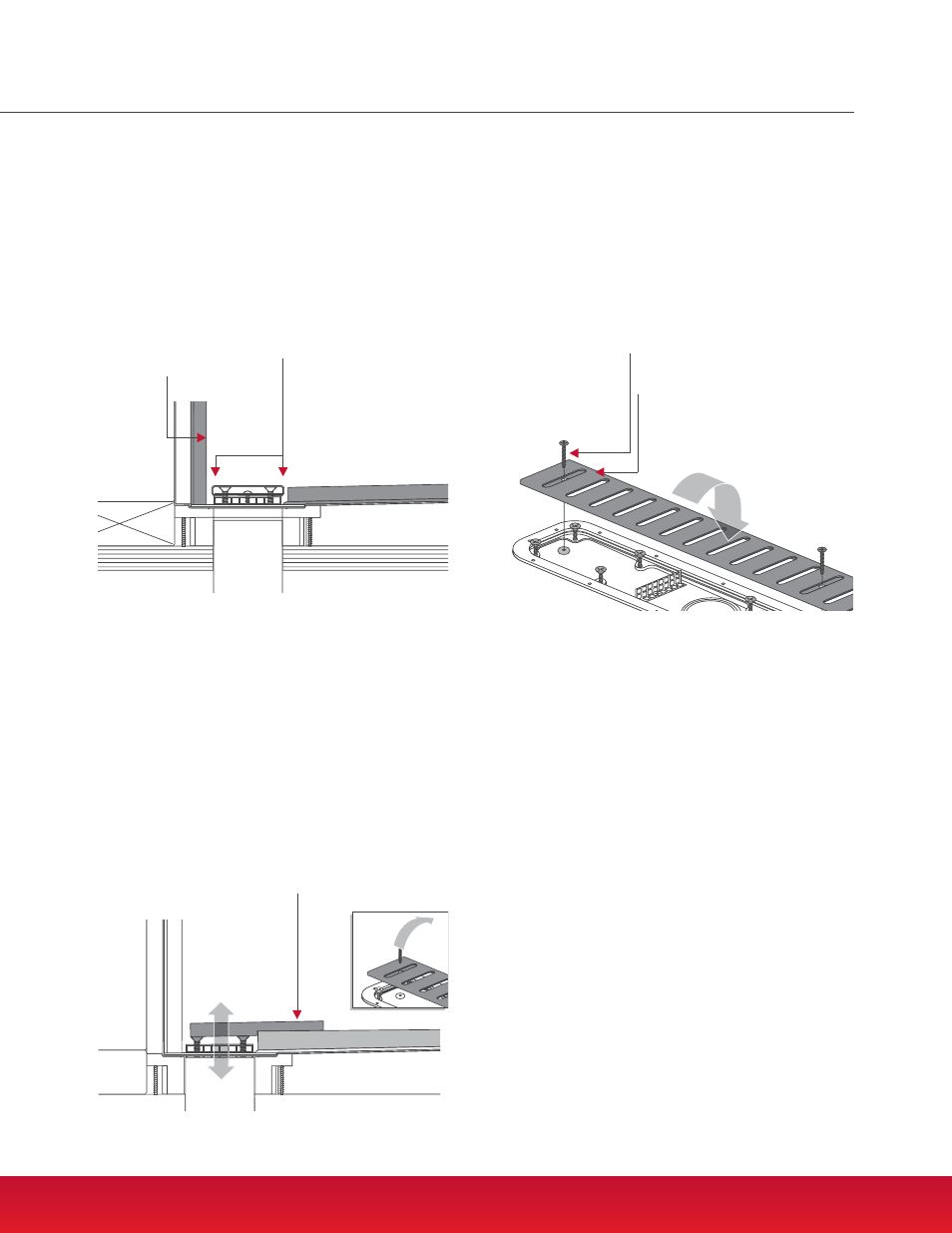

20. Re-Install Strainer
Note: Strainer attachment holes are not symmetrical. If screws do not
align with holes in drain base, turn strainer end-to-end.
Place strainer over height adjustment screws. Confirm
that strainer is flush with all tiles. Fasten with three 1"
pan head screws. Do not over-tighten.
19. Adjust Strainer Height
Remove strainer. Remove tape from strainer and clean
any remaining residue.
Place thin end of height adjustment tool on tile and rest
other end on height adjustment screw. Adjust screw for
level. Repeat for all height adjustment screws.
Height Adjustment Tool
Remove Strainer
Adjust Screws
Strainer
1" Screws
18. Tile and Grout
Be certain strainer is protected with tape. Allow for
1/16" clearance between strainer and tile.
Caution: Do not grout or seal this space.
Tile and grout all surfaces following manufacturers
instructions and TCNA guidelines.
1/16" Clearance
Do Not Seal Or Grout
Tile
Installation Guide
