Set drain on fl at surface with outlet
facing up.
Flip the sump receiver and set it
over the bottom of the drain, face
down - fl ange of drain will align with
recess of sump receiver.
Align the four shallow cut-outs in
the opening of the sump receiver
with the four threaded lugs on the
underside of the drain.
Install and tighten threaded studs in
each of the four lugs.
1-800-821-3944 www.siouxchief.com
868 ANGLE CLIP INSTRUCTION SHEET - 10/10
© 2010 SIOUX CHIEF MFG.
Installation Instructions
• Clips allow the drain to be pre-installed in sump receiver.
• Drain is fastened to sump receiver - No under-deck clamp necessary.
• Assembly mounts from top-side of the roof deck.
Always be aware of, and follow local plumbing codes
Failure to follow these instructions could result in personal injury or property damage
Sump
Receiver

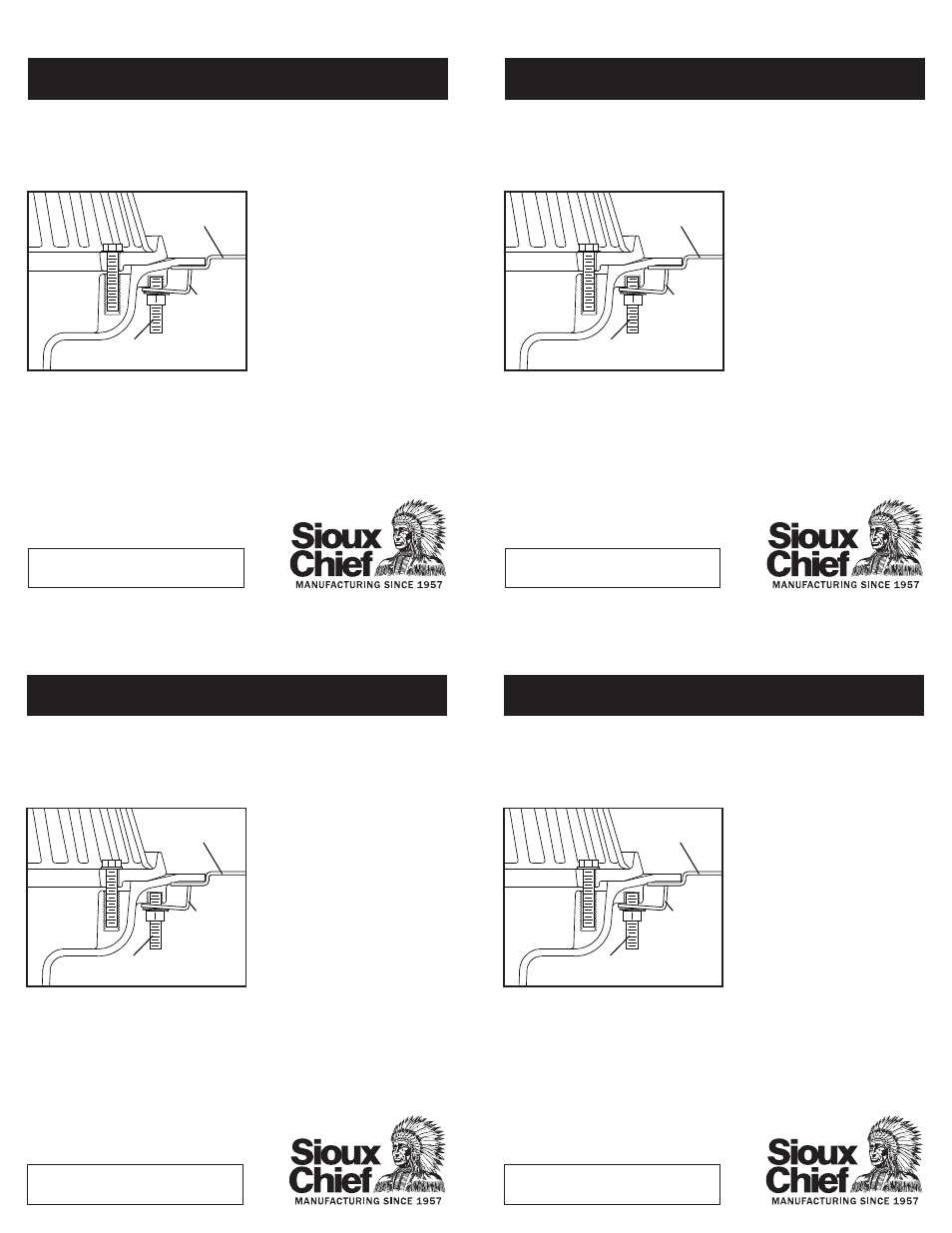

Slide the angled clips over the threaded studs with leg facing down toward
sump receiver
Install washer then nut on each stud and tighten alternately until sump
receiver is secured in place.
Install drain and sump receiver assembly into opening on roof and securely
attach sump receiver to roof deck.
Threaded
Stud
Angled
Clip
Set drain on fl at surface with outlet
facing up.
Flip the sump receiver and set it
over the bottom of the drain, face
down - fl ange of drain will align with
recess of sump receiver.
Align the four shallow cut-outs in
the opening of the sump receiver
with the four threaded lugs on the
underside of the drain.
Install and tighten threaded studs in
each of the four lugs.
1-800-821-3944 www.siouxchief.com
868 ANGLE CLIP INSTRUCTION SHEET - 10/10
© 2010 SIOUX CHIEF MFG.
Installation Instructions
• Clips allow the drain to be pre-installed in sump receiver.
• Drain is fastened to sump receiver - No under-deck clamp necessary.
• Assembly mounts from top-side of the roof deck.
Always be aware of, and follow local plumbing codes
Failure to follow these instructions could result in personal injury or property damage
Sump
Receiver
Slide the angled clips over the threaded studs with leg facing down toward
sump receiver
Install washer then nut on each stud and tighten alternately until sump
receiver is secured in place.
Install drain and sump receiver assembly into opening on roof and securely
attach sump receiver to roof deck.
Threaded
Stud
Angled
Clip
Set drain on fl at surface with outlet
facing up.
Flip the sump receiver and set it
over the bottom of the drain, face
down - fl ange of drain will align with
recess of sump receiver.
Align the four shallow cut-outs in
the opening of the sump receiver
with the four threaded lugs on the
underside of the drain.
Install and tighten threaded studs in
each of the four lugs.
1-800-821-3944 www.siouxchief.com
868 ANGLE CLIP INSTRUCTION SHEET - 10/10
© 2010 SIOUX CHIEF MFG.
Installation Instructions
• Clips allow the drain to be pre-installed in sump receiver.
• Drain is fastened to sump receiver - No under-deck clamp necessary.
• Assembly mounts from top-side of the roof deck.
Always be aware of, and follow local plumbing codes
Failure to follow these instructions could result in personal injury or property damage
Sump
Receiver
Slide the angled clips over the threaded studs with leg facing down toward
sump receiver
Install washer then nut on each stud and tighten alternately until sump
receiver is secured in place.
Install drain and sump receiver assembly into opening on roof and securely
attach sump receiver to roof deck.
Threaded
Stud
Angled
Clip
Set drain on fl at surface with outlet
facing up.
Flip the sump receiver and set it
over the bottom of the drain, face
down - fl ange of drain will align with
recess of sump receiver.
Align the four shallow cut-outs in
the opening of the sump receiver
with the four threaded lugs on the
underside of the drain.
Install and tighten threaded studs in
each of the four lugs.
1-800-821-3944 www.siouxchief.com
868 ANGLE CLIP INSTRUCTION SHEET - 10/10
© 2010 SIOUX CHIEF MFG.
Installation Instructions
• Clips allow the drain to be pre-installed in sump receiver.
• Drain is fastened to sump receiver - No under-deck clamp necessary.
• Assembly mounts from top-side of the roof deck.
Always be aware of, and follow local plumbing codes
Failure to follow these instructions could result in personal injury or property damage
Sump
Receiver
Slide the angled clips over the threaded studs with leg facing down toward
sump receiver
Install washer then nut on each stud and tighten alternately until sump
receiver is secured in place.
Install drain and sump receiver assembly into opening on roof and securely
attach sump receiver to roof deck.
Threaded
Stud
Angled
Clip
