Making corners, Prepare flashing – Sioux Chief Linear Shower Drain - StreamLine User Manual
Page 7
www.siouxchief.com 6

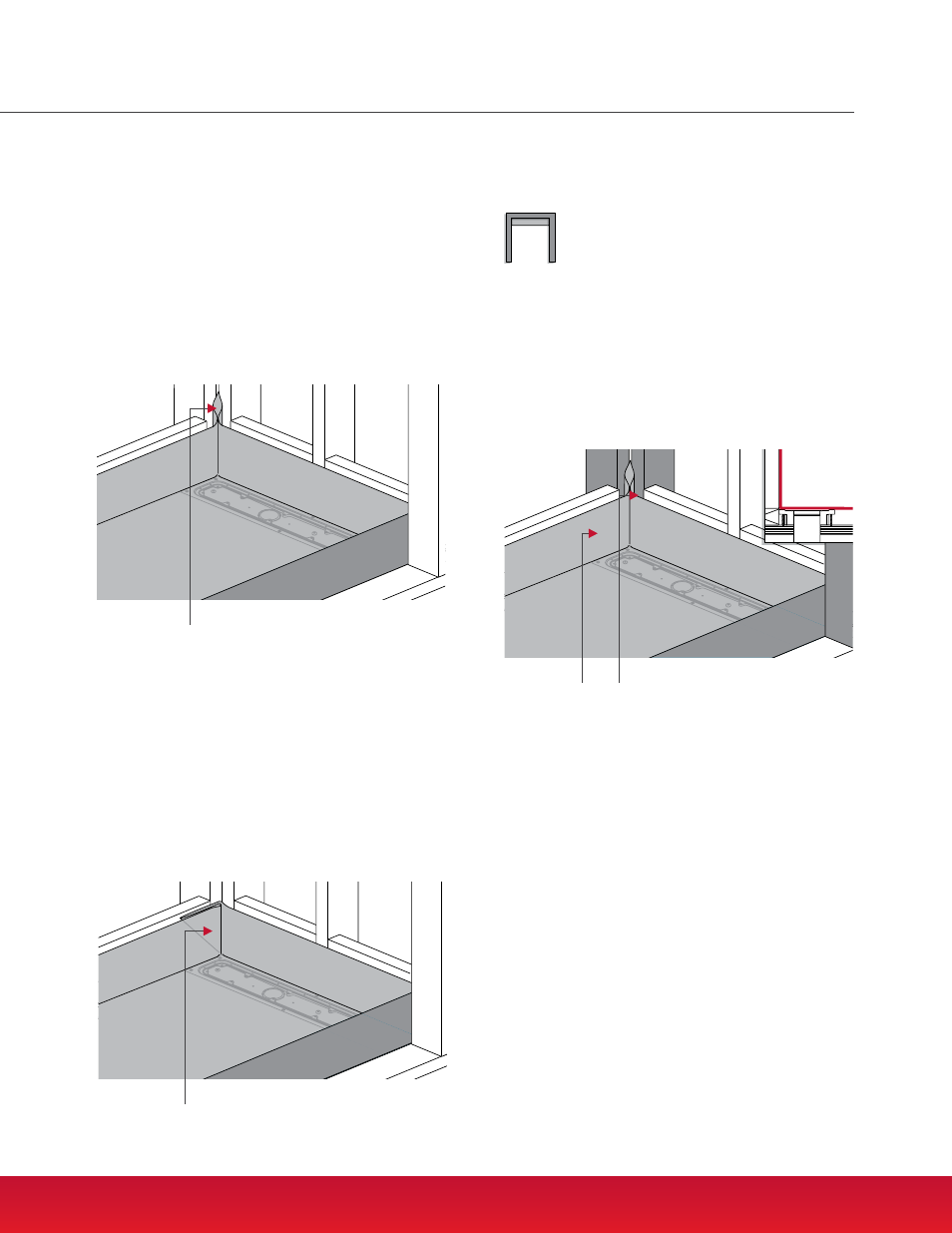

Making Corners
Tucked Corner (when space is available between studs)
Fold and crease to size. Tuck shower pan liner into
space between studs.
Folded Corner
Fold and crease to size. Fold corners behind
shower pan liner.
6"
Tuck between Studs
6"
Fold Corners Behind
7. Prepare Flashing
Drain at Back Wall
Flashing must turn up the walls a minimum of 3"
above shower curb and 6" above floor in showers
without curbs.
Measure width of shower floor across drain base. Lay
flashing flat. Measure and mark flashing. Fold and
crease for upturns and create corners.
Note: Do not secure flashing at this time.
Tuck or Fold
Fold
Installation Guide
