Page 3
www.siouxchief.com 2

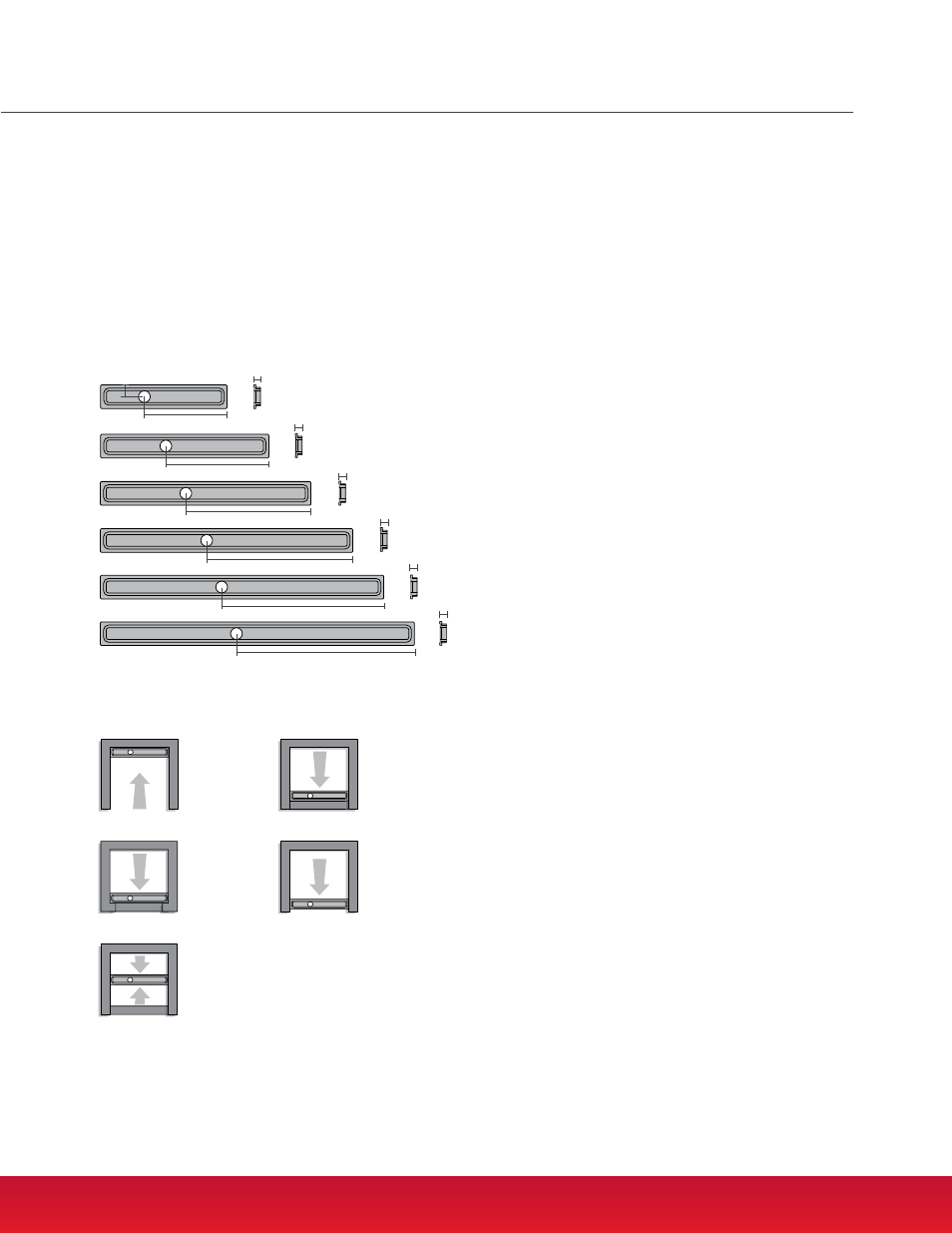

Drain Sizes
Confirm Drain Size, Waste Pipe
Type and Waste Pipe Location
Drain hole is off-set to accommodate floor joist
location. Size of shower determines size of drain
to be used, which determines location of waste
pipe through sub-floor. Match 2" I.D Schedule 40 DWV
material (PVC or ABS) to drain base material.
Typical Drain Locations
Back Wall
Flush to back
wall
Slope
Full Curb
Flush to curb
Curb-less
Flush to both
side walls
Partial Curb
Flush to curb
On Center
Flush to both
side walls
15-3/4"
24"
1-1/4"
2-1/4"
1-3/8"
1-7/16"
1-1/2"
1-9/16"
1-5/8"
19-1/2"
32"
23-3/4"
40"
27-3/4"
48"
30-3/4"
54"
33-3/4"
60"
Installation Guide
