Page 11: Fasten flashing
www.siouxchief.com 10

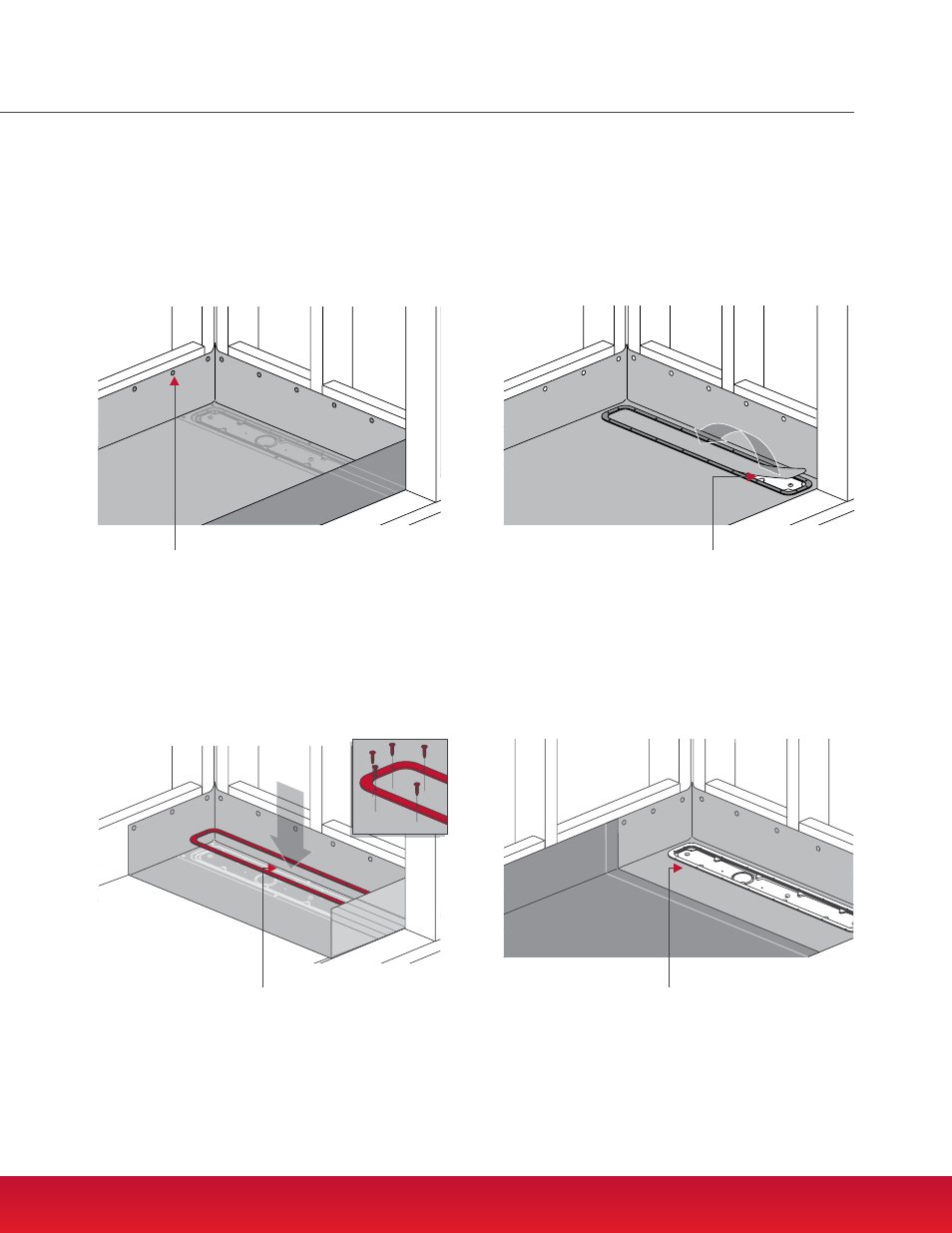

10. Install Clamping Collar
Align collar with drain base under flashing. Press firmly.
Starting at one end, insert 5/8" screw through collar,
punch through flashing and screw into base. Repeat for
all screws. Do not over-tighten.
12. Complete Floor Waterproofing
Complete installation of bonded waterproofing membrane
(ANSI A118.10) on shower floor.
11. Cut Out Flashing
With a razor knife, carefully trim out flashing from center
of collar. Remove tape from drain hole.
Caution: Do not puncture flashing outside of collar.
Cut Out Flashing
Clamping Collar
Clamping Collar
9. Fasten Flashing
Nail through top 1" of flashing to studs and/or blocking.
Nail
Installation Guide
