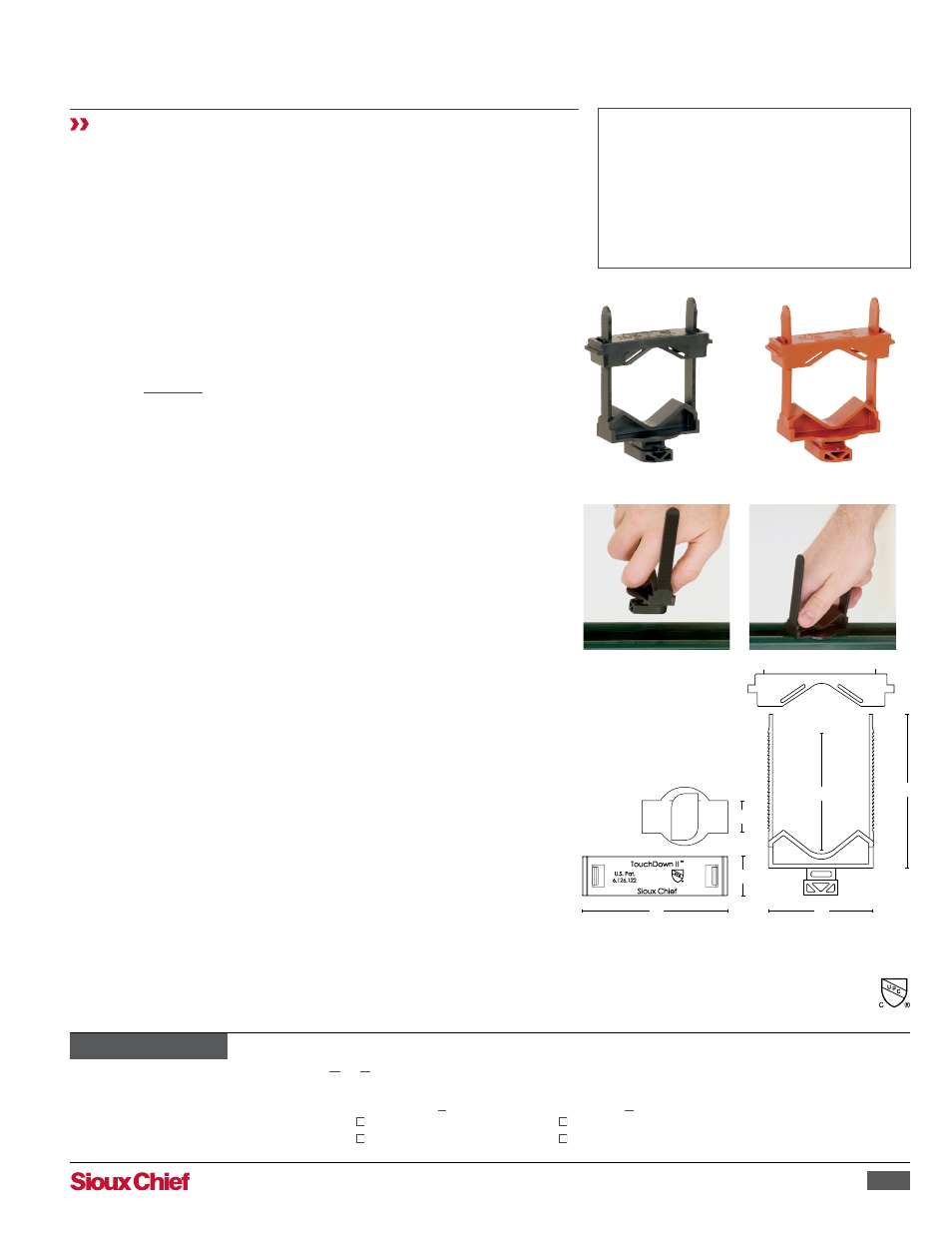

Sioux Chief 550 Series TouchDown II - Manual

550F2T
C
E
F
A
B D
550-2T
Create Item Number
LARGE UNIVERSAL CLAMP FOR STRUT
550 SERIES
550-A2TB
e.g. 550-2T: black nylon TouchDown II Strut Clamp
Made in USA
– = black nylon (dash)
F = polyvinylidene fluoride
MATERIAL A
_ = one bridge (blank)
1 = two bridges
BRIDGE B
TouchDown II
™
SPECIFICATION
Sioux Chief 550 series universal pipe clamp for channel strut is to be used where
necessary to insulate or secure any pipe, conduit or wire ranging from ½" CTS
to 2" IPS wherever channel or strut is used. Variable clamping tension allows for
expansion and contraction. Sioux Chief’s strut clamp does not require tools and
can be used in any channel strut with 1-5/8"width.
INSTALLATION
Insert strut clamp into top of channel strut and twist to lock clamp in
place. Lay pipe in base of clamp and ratchet clamp’s top bridge to secure
pipe, conduit or wire. Additional bridges may be installed as necessary
to install or isolate multiple lines. While Sioux Chief does not recommend
installations where the clamp is inverted hanging beneath the strut, in these
instances the maximum safe working load is 25 lbs.
MATERIALS
Nylon (Black): 100% corrosion proof virgin nylon 66, U.V. protected,
UL94 V-2 rated
E84 Plenum-Safe (Orange): polyvinylidene fluoride (PVDF),
meets ASTM E84 25/50 smoke/flame rating and UL94 V-O flame rating
WORKING TEMPERATURE
Nylon (Black): –10°F – 220°F
E84 Plenum-Safe (Orange): –10°F – 140°F
SAFE WORKING LOAD
Nylon (Black):
–10°F – 130°F 150 lbs.
131°F – 180°F 105 lbs.
181°F – 220°F 70 lbs.
E84 Plenum-Safe (Orange):
–10°F – 100°F 50 lbs.
101°F – 120°F 35 lbs.
121°F – 140°F 25 lbs.
DIMENSIONS
A: clamp width 2.67"
B: clamp height 3.70"
C: clamp depth 1.02"
D: variable clamping range .625" — 2.375"
E: bridge width 3.41"
F: bridge depth .97"
