SPECIFICATION

Sioux Chief 525-MB series Strong Arm with Metal Bend Support pre-
assembled bracketing system shall be used where necessary when
penetrating a wall with flexible ½" CTS stub outs. Brackets shall be
corrosion resistant with L-bend on one end and shall be secured inside
the stud cavity with approved hardware. System shall include metal bend
device that swivels 360-degrees and slides across pair of L-bent brackets
allowing installer to secure flexible ½" CTS stub out at any desired location
within the stud cavity.

MATERIALS

brackets: 16 gauge galvanized steel
metal bend support: 18 gauge electroplated galvanized steel
screw: #6 × 1" zinc-plated coarse thread

SAFE WORKING LOAD*

25 lbs. at 140°F

*Safe working load = ½ failure

INSTALLATION

Determine stub out height. Screw bent ends of each bracket inside stud
cavity on one side. Slide the metal bend support across brackets to desired

stub out location. Using pliers, pinch the rear lip of the metal bend support

in each corner of faceplate to prevent lateral movement on the brackets.
Spreading the loose bracket ends apart, anchor the loose ends of the
brackets inside opposite side of stud cavity starting with the lower bracket
to keep installation level. Install flexible ½" CTS tubing in metal bend

support. Bend support swivels to accommodate tubing coming from any
direction. For the most rigid installation, spread loose bracket ends as far
apart as possible before anchoring to stud.

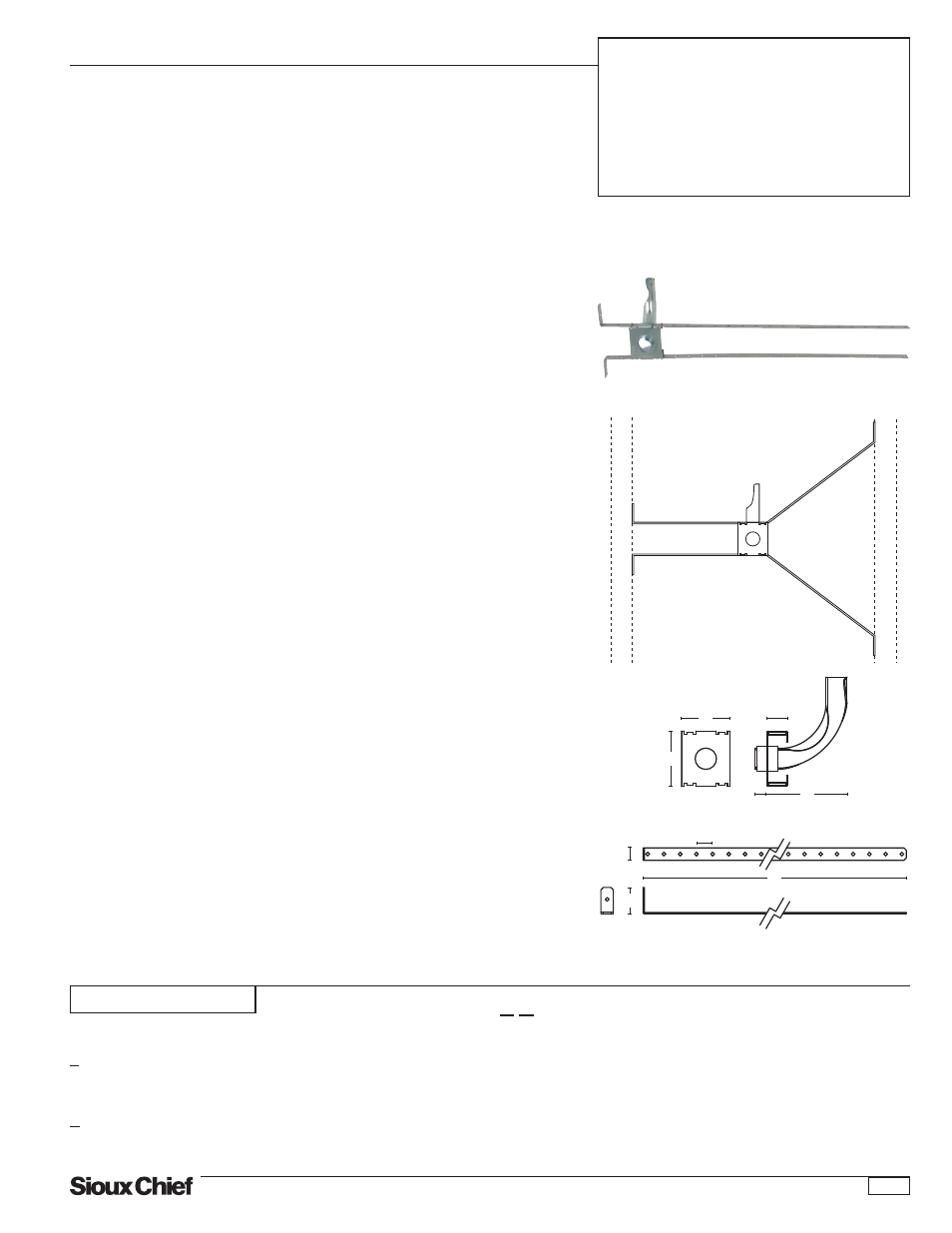

DIMENSIONS

Metal Bend Support

Height

2.067"

A:

Width

1.875"

B:

Depth

0.785"

C:

Tube support protrusion

0.46"

D:

Tube support depth

3.085"

E:
L-Bent Strong Arm

16" stud bay

24" stud bay

Hole spacing

0.812"

0.812"

F:

Tab length

1.32"

1.32"

G:

Width

0.625"

0.625"

H:

Overall length

18.32"

25.63"

I:

525-A B

525 series

Strong Arm

with Metal Bend Support

A

LengTH

16 16" stud bay

24 24" stud bay


B

meTaL BenD SUppOrTS

1MB one metal bend support

2MB two metal bend supports

InDIvIDUaL COmpOnenTS

525-20B L-Bent Strong Arm bracket

for 16" bay

525-27B L-Bent Strong arm bracket

for 24" bay

525-S2 ½" metal bend support

e.g. 525-242mB = 24" stud bay L-Bent Strong arm bracket with two ½" metal bend supports.

BRACKETING SYSTEM

525-161MB

B

C

E

D

A

I

F

G

H
