Sioux Chief Secondary Drain Funnel User Manual
Important
Installation instructions
1
Remove the 1½" knockout in the top of the box and
plumb a secondary drainage line into the drainage box.
2
Fasten a secondary drainage line or
condensate line to a permanent building
member directly above the drainage box.
3
Cut off excess drainage pipe within the box,
leaving 1" of pipe protrusion through the knockout
into the box. Do not install pipe into funnel
beyond the “Pipe Stop” marking on the unit.
4
Completely push top slotted portion of secondary
drainage funnel over the pipe protrusion and
through the top knockout within the box.
5
Attach the bottom portion of the secondary drainage
funnel to the slotted portion via the integral locking
snaps on the sides of the funnel sections.
6
Lower funnel into position onto the built-in ridges.
Install supplied clip over top cylindrical funnel section.
Installation with washing machine drain hose
1 Follow
steps
1–6
above.
2
Use a washing machine drain hose bend
support or guide for the drain line and install
in 2" drain pipe through the drain box.
Note: Washing machine drain hoses exceeding
1½" O.D. must be adjusted.
Cleaning
1
Remove clip and push funnel through
the top of the drain box ½".
2
Squeeze the funnel top section above the clips and pull
down on the lower section to separate funnel sections.
3
Rinse bottom section thoroughly.
4
Follow steps 5–6 of secondary drainage
funnel installation above.

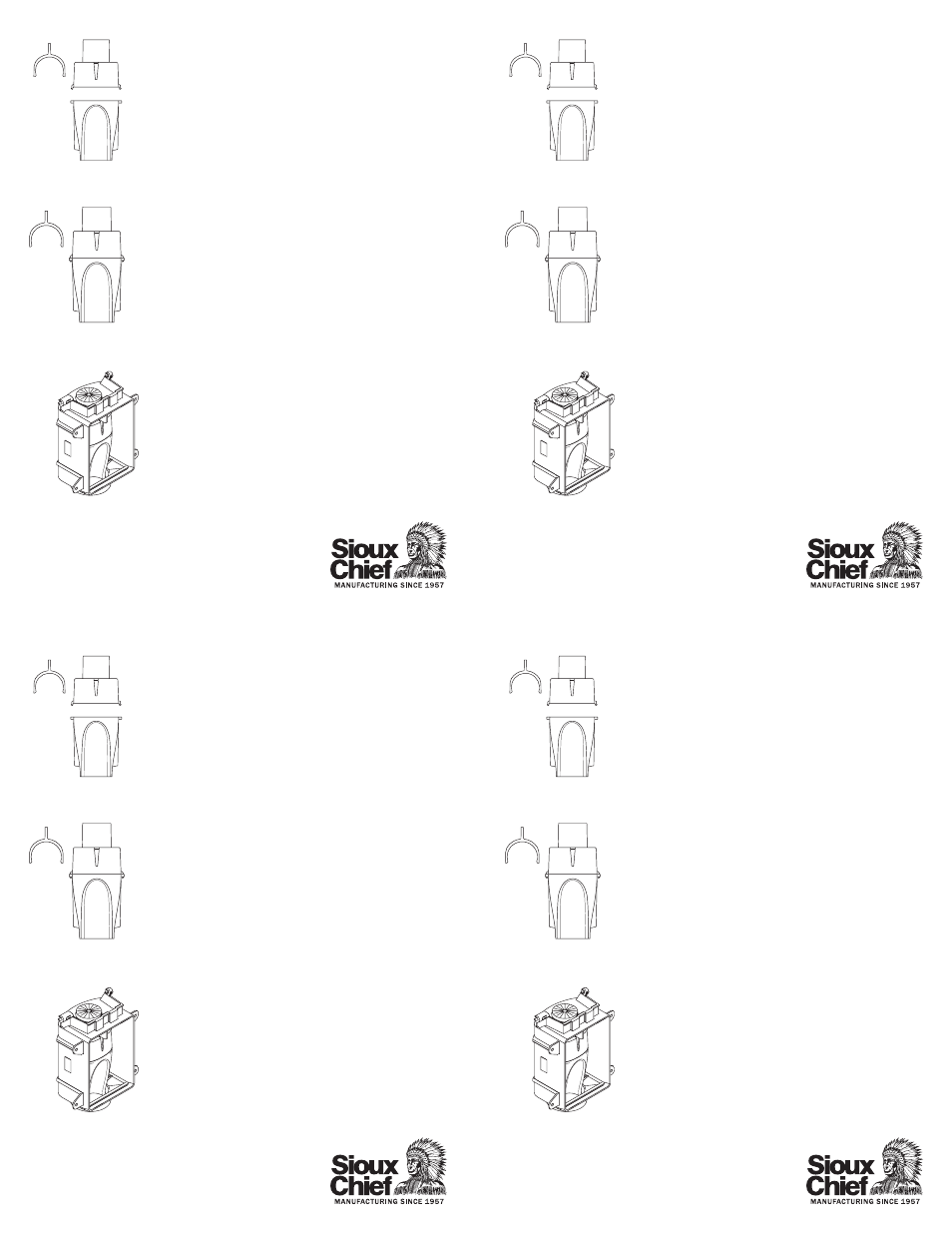

Fig. 1
Two piece design allows for easy
installation and cleaning.
Fig. 2
Top and bottom funnel
sections snap together.
Fig. 3
Installed in the Ox Box
™
outlet box.
IMPORTANT
Read installation & maintenance
instructions fi rst. Retain if necessary.
#IS-696-CF • SECONDARY DRAINAGE FUNNEL INSTRUCTION SHEET - 5-09 ©2009 SIOUX CHIEF MFG.
www.siouxchief.com • 1-800-821-3944
Flow Rate = 7 Gallons Per Minute or less
Note: Some pressure discharge devices, like
water softeners, exceed specifi ed GPM rating.
