Creating a Macro
31

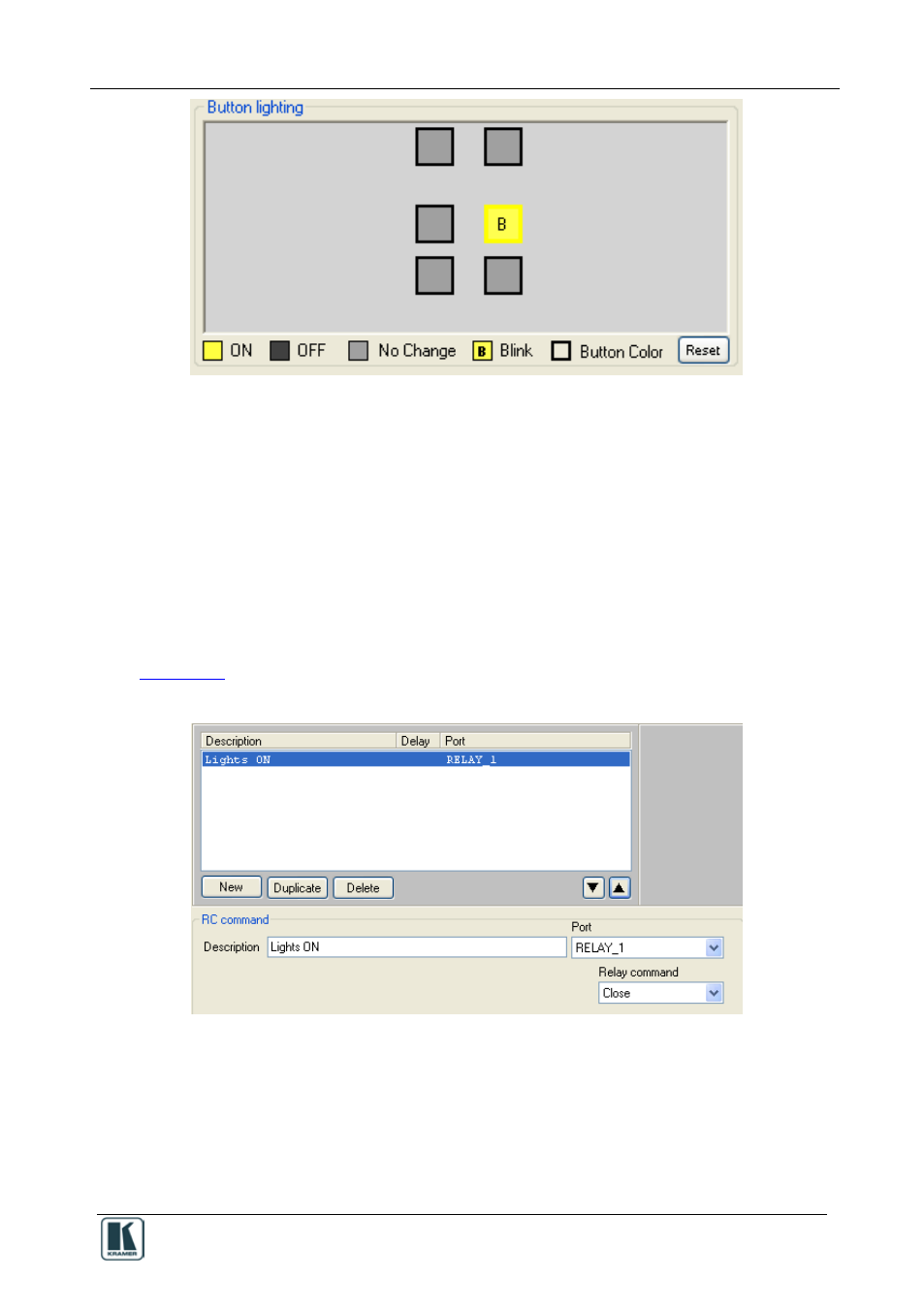

Figure 35: LIGHT Command
5.2.3
A Relay Command – Turn Lights ON
To write a relay command on an RC button (for example, turn the lights on),
do the following:
1. Select the Relay Port (for example, RELAY_1).
2. In the RC command area, write the command description (for example, Lights
ON).
3. Select the relay command (for example, Close).
illustrates the RC Command area as it appears after writing the
command:
Figure 36: Lights ON RC Command
