DNCKE-.../KEC-...
Festo DNCKE-.../KEC-... 0204NH English
24
S Select the fitting variant to suit your application.
Further fitting possibilities for Fig. 9 and the necessary accessories are de-
scribed in the Festo catalogue.

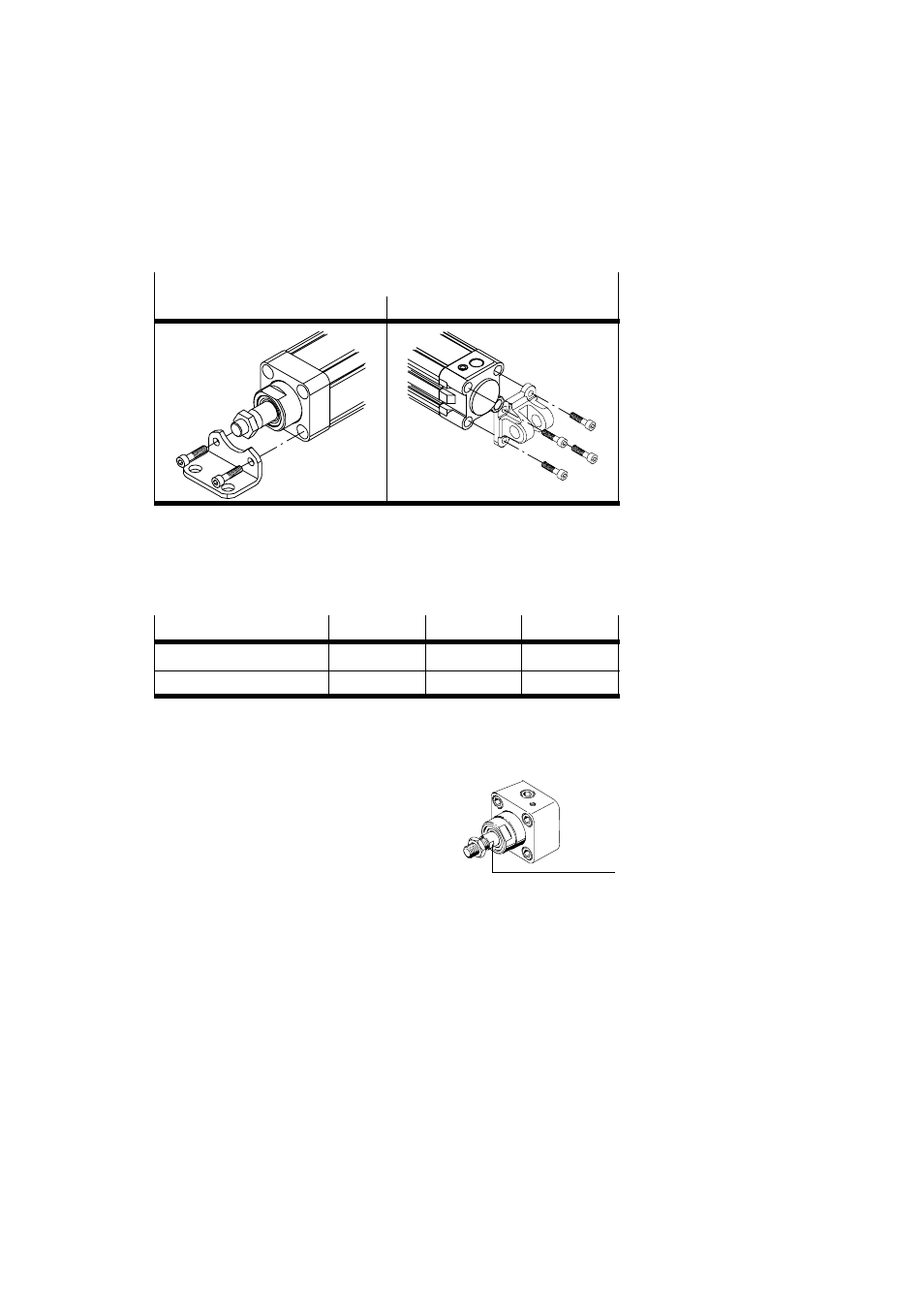

Variants (examples)
With foot fastening type HNC-... With swivel fastening type SNC-...
Fig. 9
S Place the clamping unit in the intended position.
S Tighten the fastening screws to an equal extent.
The tightening torques are shown in the table below:
Type DNCKE-40-... DNCKE-63-... DNCKE-100-...
Tightening torque 5 Nm 8 Nm 10 Nm
Size M6 M8 M10
Fig. 10
Fitting the work load to clamping cylinder
type DNCKE-... .
S Fasten the work load to the piston rod.
The spanner flat aJ on the piston rod
serves as a counterforce for the locking
nut.
Fig. 11
DNCKE-...
aJ
