Wiring diagram 4-26, Wiring diagram 4-27 – Apex Digital 5708009-C User Manual

Page 80

background image

4-34

5708009-C

Advanced Energy

®

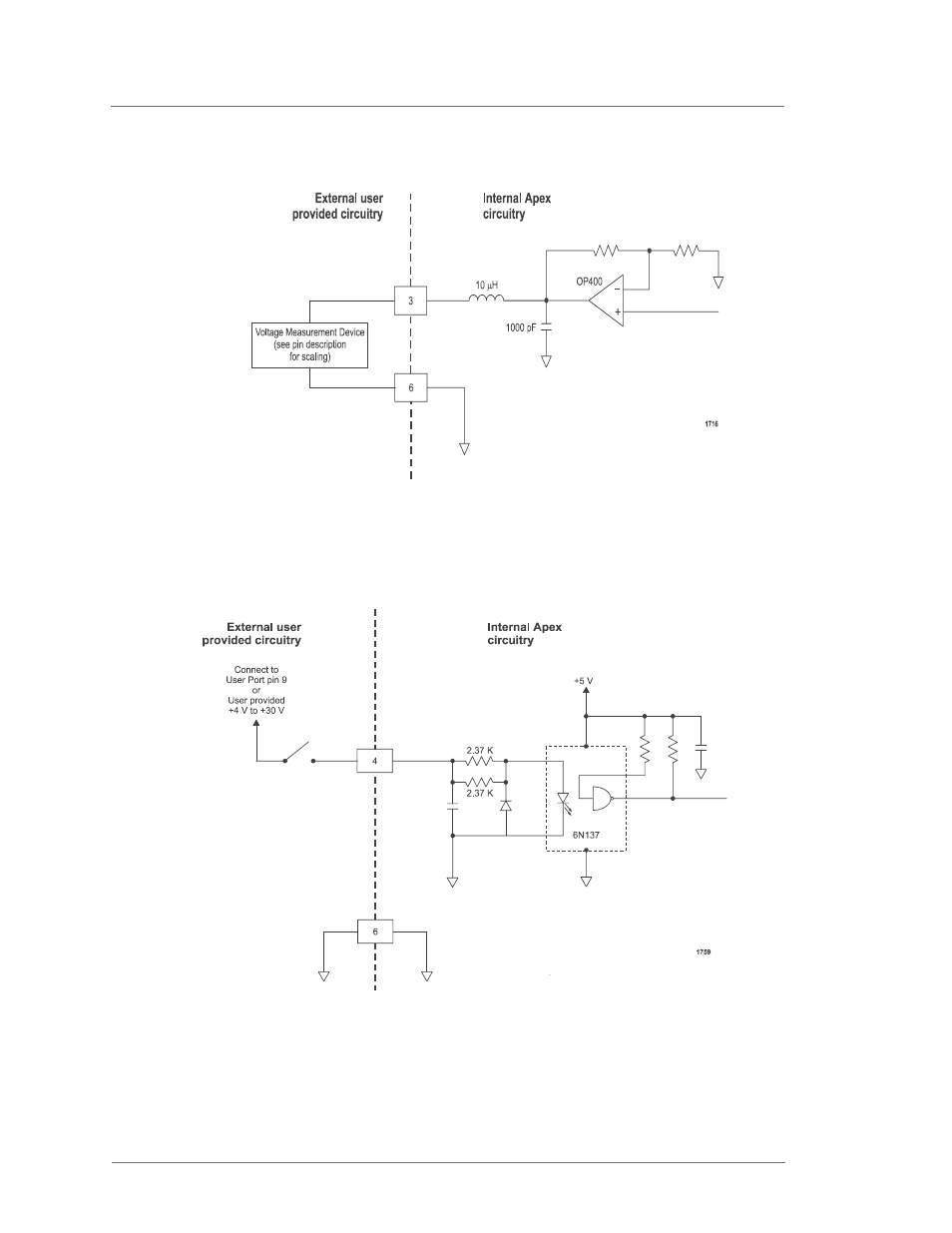

Wiring Diagram 4-26. Forward/Load Power Monitor (pins 3 and 6)

Wiring Diagram 4-27. RF Power Enable (pin 4 and 6)
