5708009-C
5-5
Apex 1 to 5.5 kW Generator
generator when the additional cooling is not required. Water flow is enabled whenever
ac is present on the input of the supply and open when ac is absent on the input of the
supply.

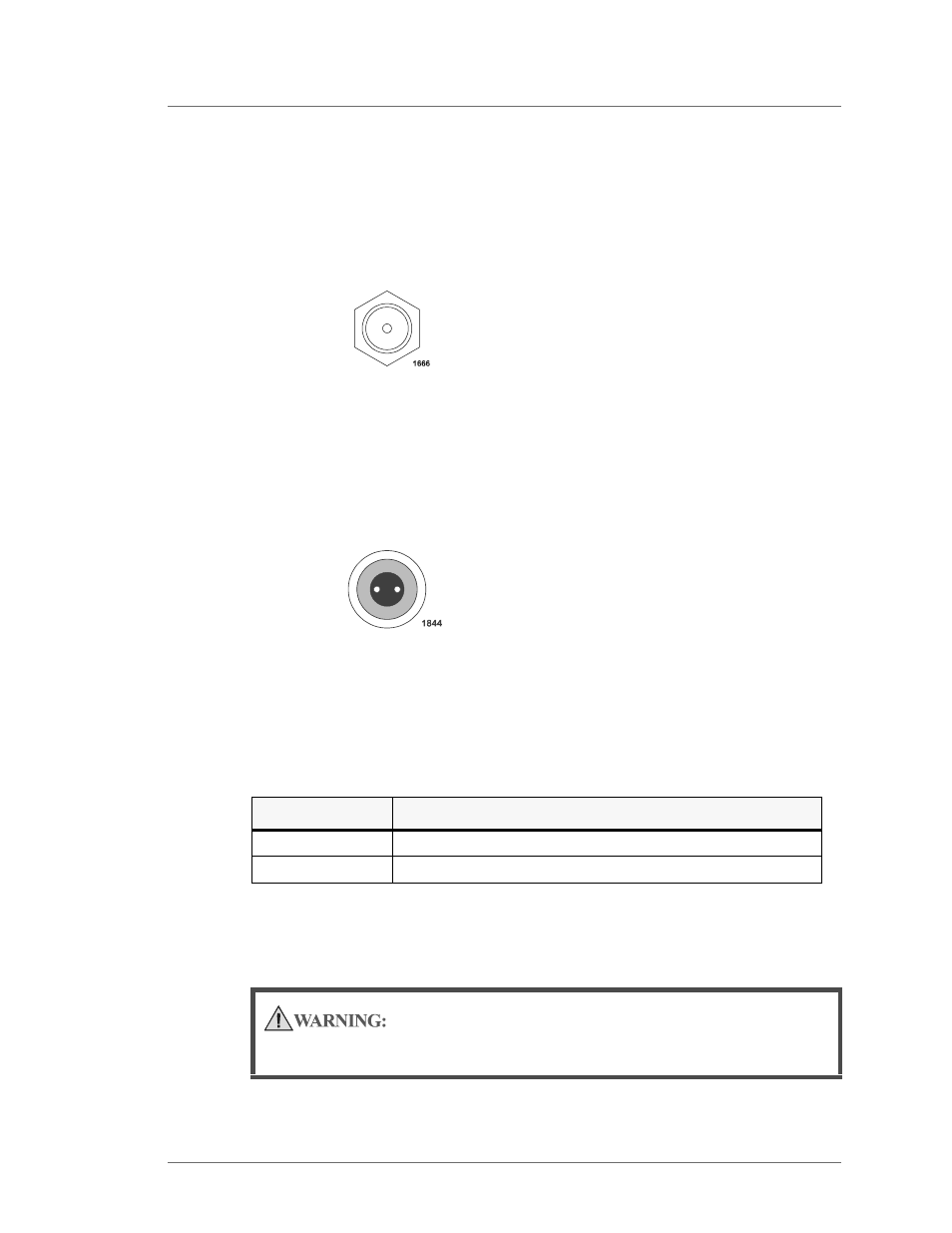

Figure 5-2. Water control connector
Figure 5-3. Optional water solenoid connector
Connecting Output Power
Table 5-1. Water Control Connector Pins
Pin
Description
1 (center pin)
+24 V/1A (switched source to enable solenoid)
2 (outer pin)
+24 V return
NEED
The generator must be installed so the output connections are
inaccessible to the user.
