4-12

5708009-C

Advanced Energy

®

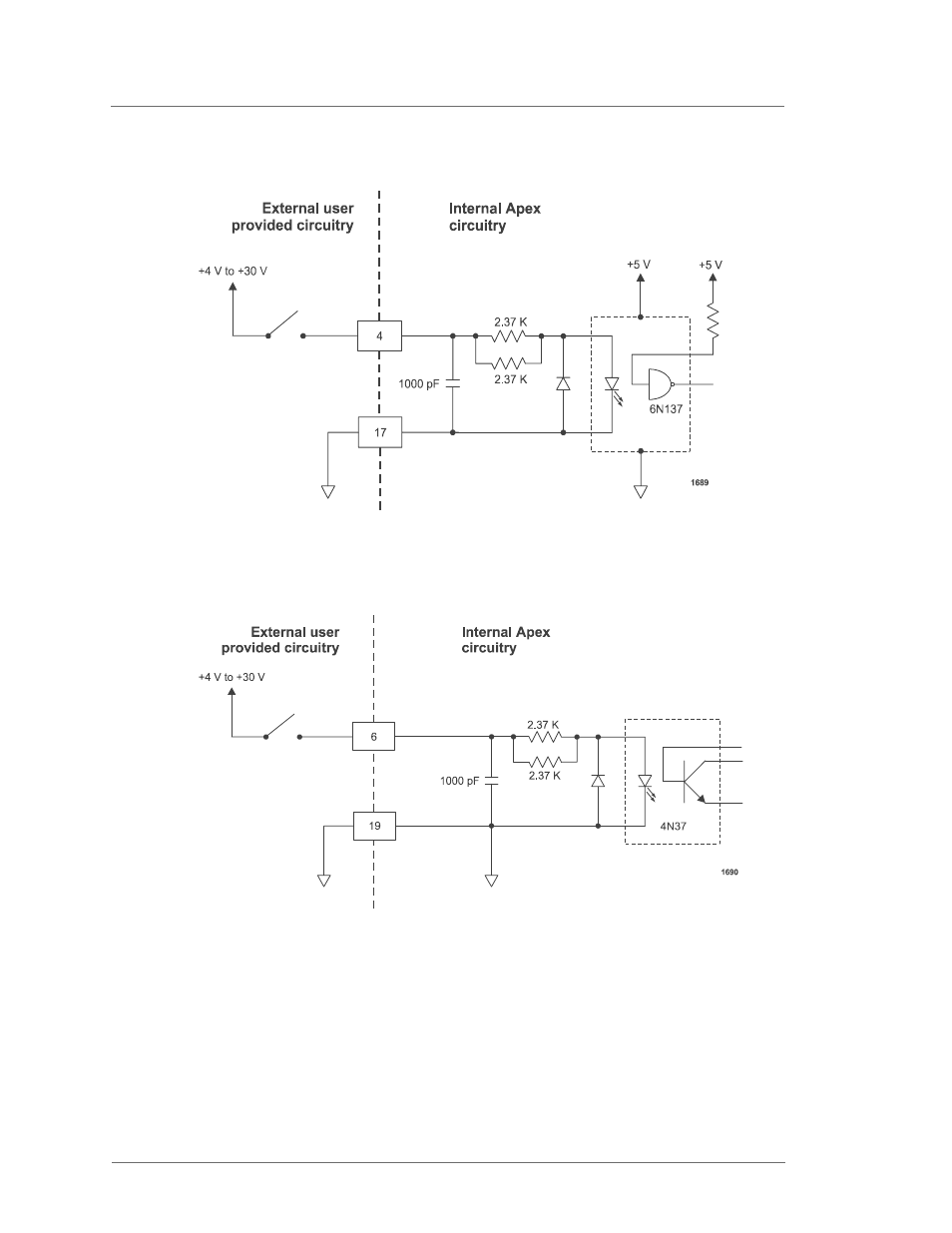

Wiring Diagram 4-5. RF Power On (pins 4 and 17)

Wiring Diagram 4-6. DC Bias/Power Regulation (pins 6 and 19)
