Pin descriptions for option d user port, Power limit status, Digital output – Apex Digital 5708009-C User Manual

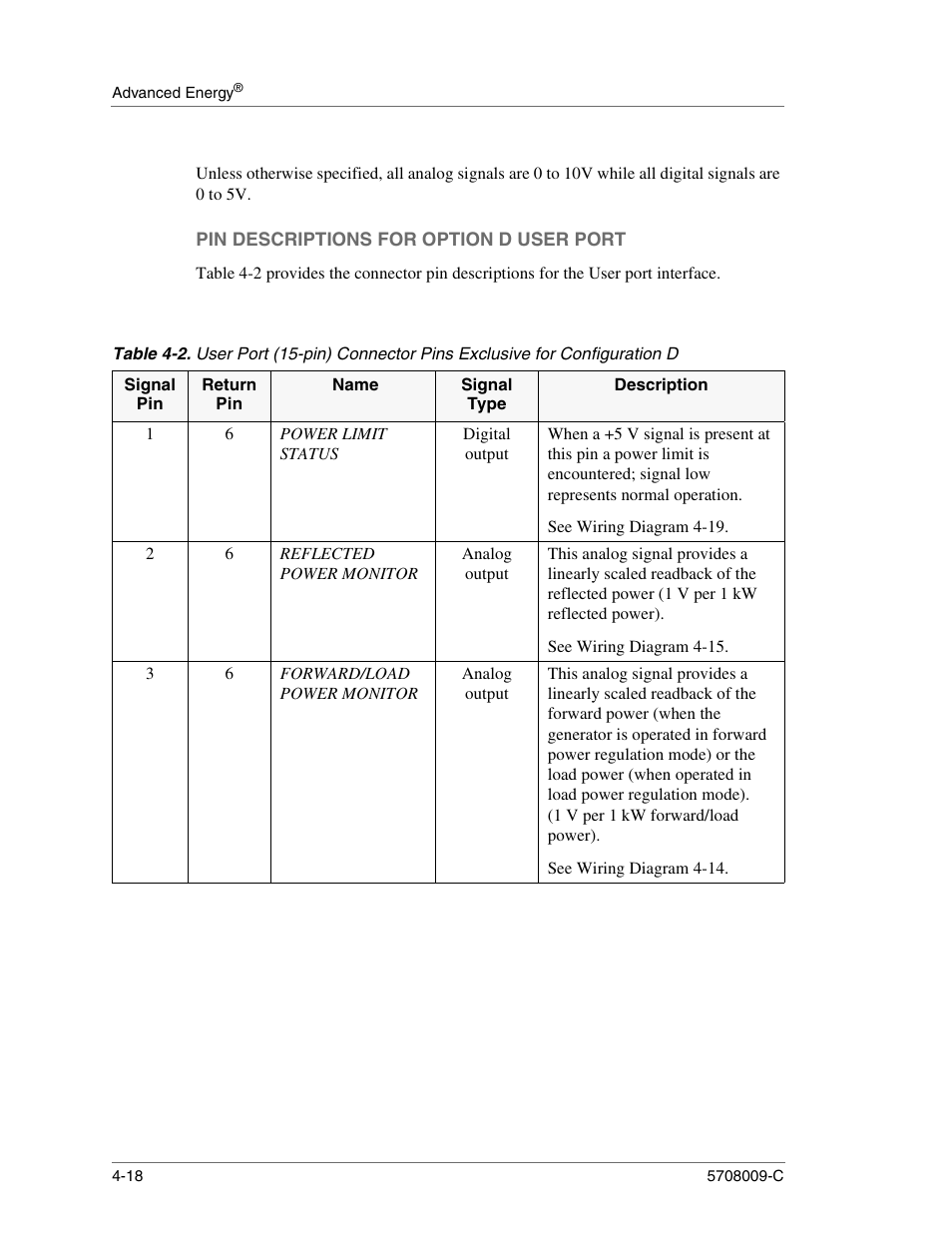

Page 64: See wiring diagram 4-19, Reflected power monitor, Analog output, See wiring diagram 4-15, Forward/load power monitor, See wiring diagram 4-14, Pin descriptions for option d user port -18

Pin descriptions for option d user port, Power limit status, Digital output | See wiring diagram 4-19, Reflected power monitor, Analog output, See wiring diagram 4-15, Forward/load power monitor, See wiring diagram 4-14, Pin descriptions for option d user port -18 | Apex Digital 5708009-C User Manual | Page 64 / 160 Pin descriptions for option d user port, Power limit status, Digital output | See wiring diagram 4-19, Reflected power monitor, Analog output, See wiring diagram 4-15, Forward/load power monitor, See wiring diagram 4-14, Pin descriptions for option d user port -18 | Apex Digital 5708009-C User Manual | Page 64 / 160
