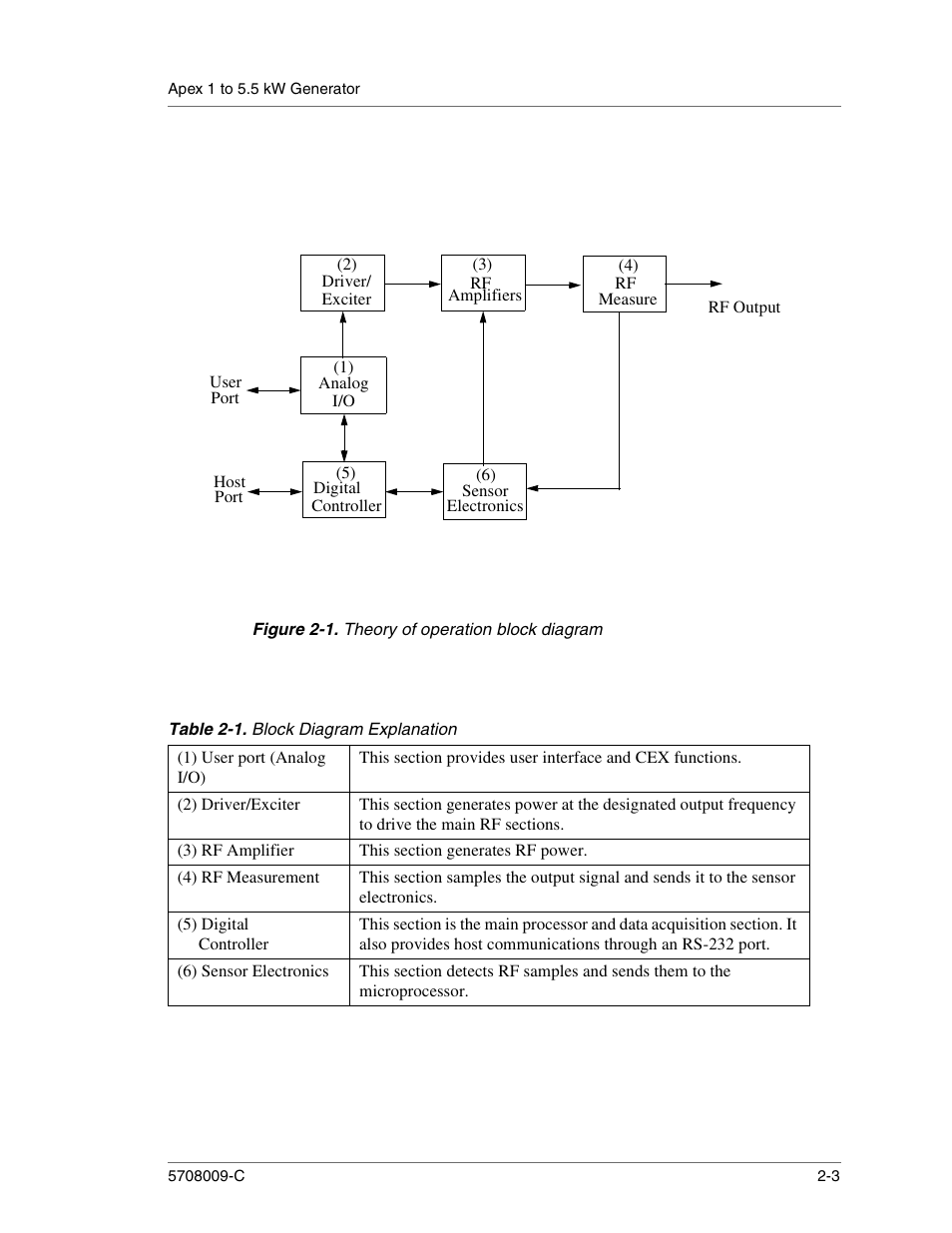

Figure 2-1. theory of operation block diagram, Table 2-1. block diagram explanation, 1) user port (analog i/o) – Apex Digital 5708009-C User Manual

Page 31: 2) driver/exciter, 3) rf amplifier, This section generates rf power, 4) rf measurement, 5) digital controller, 6) sensor electronics, Theory of operation block diagram -3

Figure 2-1. theory of operation block diagram, Table 2-1. block diagram explanation, 1) user port (analog i/o) | 2) driver/exciter, 3) rf amplifier, This section generates rf power, 4) rf measurement, 5) digital controller, 6) sensor electronics, Theory of operation block diagram -3 | Apex Digital 5708009-C User Manual | Page 31 / 160 Figure 2-1. theory of operation block diagram, Table 2-1. block diagram explanation, 1) user port (analog i/o) | 2) driver/exciter, 3) rf amplifier, This section generates rf power, 4) rf measurement, 5) digital controller, 6) sensor electronics, Theory of operation block diagram -3 | Apex Digital 5708009-C User Manual | Page 31 / 160
