Chapter 7. Windows Peer-to-Peer
Software configuration
FastPrint Server User’s Guide 50
7.5.3. Windows NT 3.51
This procedure must be carried out on every workstation requiring access to the
FastPrint’s printers. The FastPrint driver must be installed first.
Before proceeding, check the following:
•
The FastPrint Server is ON and configured (if using TCP/IP).
•
One or more printer(s) are connected to the FastPrint, and on-line.
•
The LAN is operational and using the appropriate protocol (either TCP/IP or
NetBEUI).
7.5.3.1. First port configuration
1. Go to Printer Manager. Select PrinterèCreate Printer.
2. Select the appropriate printer driver for the printer connected to the FastPrint’s first
port.
3. In the Print to dialogue box, select PrintServer.
4. Click on Settings. The Configure FastPrint Server window will appear. It will look
like one of the screens below.

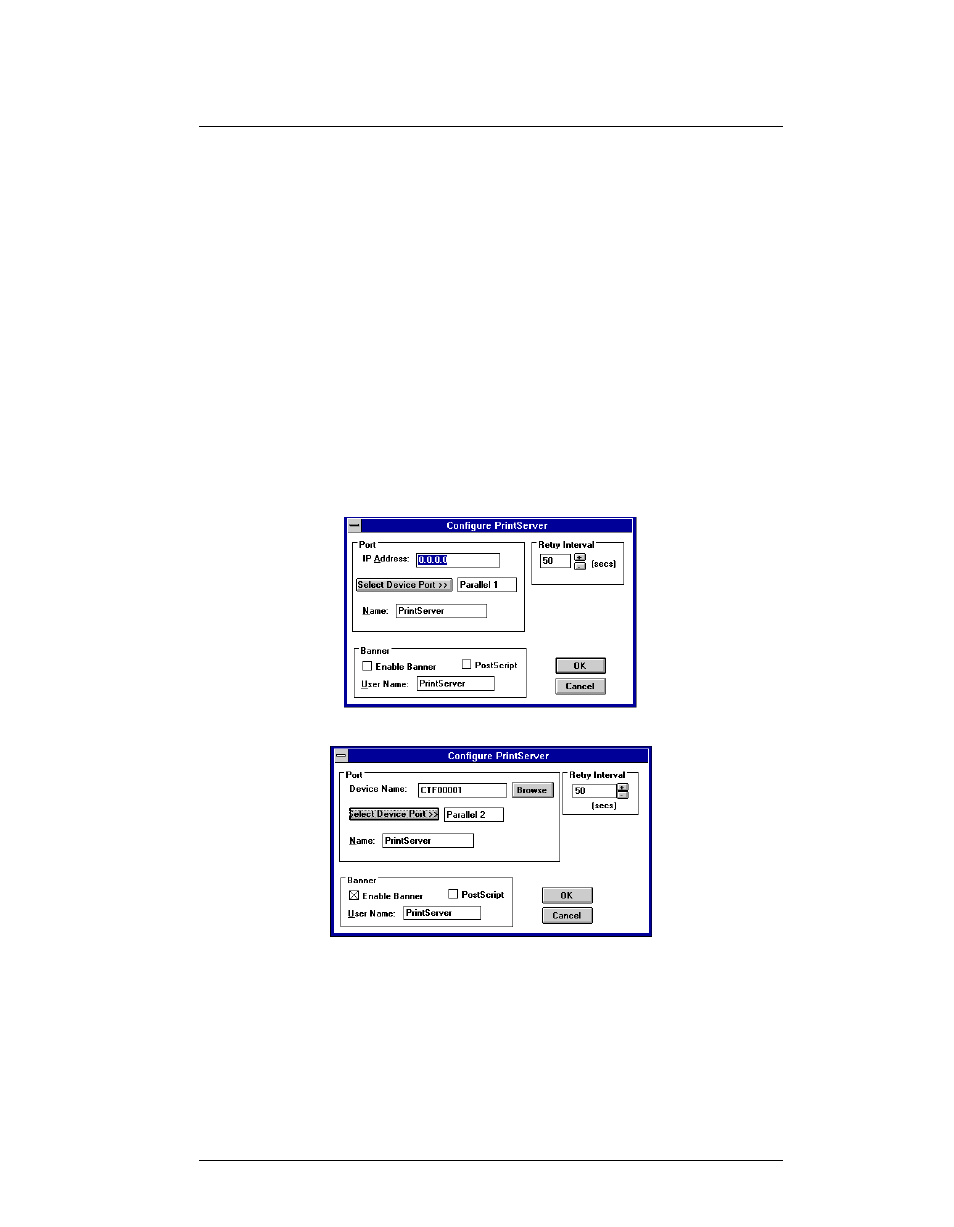

Figure 10 TCP/IP Configuration (NT 3.51 PtP)
Figure 11 NetBEUI Configuration (NT 3.51 PtP)
5. Enter the configuration information as described in Software configuration on page
47.
6. When finished, click OK and then follow the on-screen instructions to finish adding
a printer as you normally would.
