Chapter 6: Port Parameters
82 Section I: Basic Features

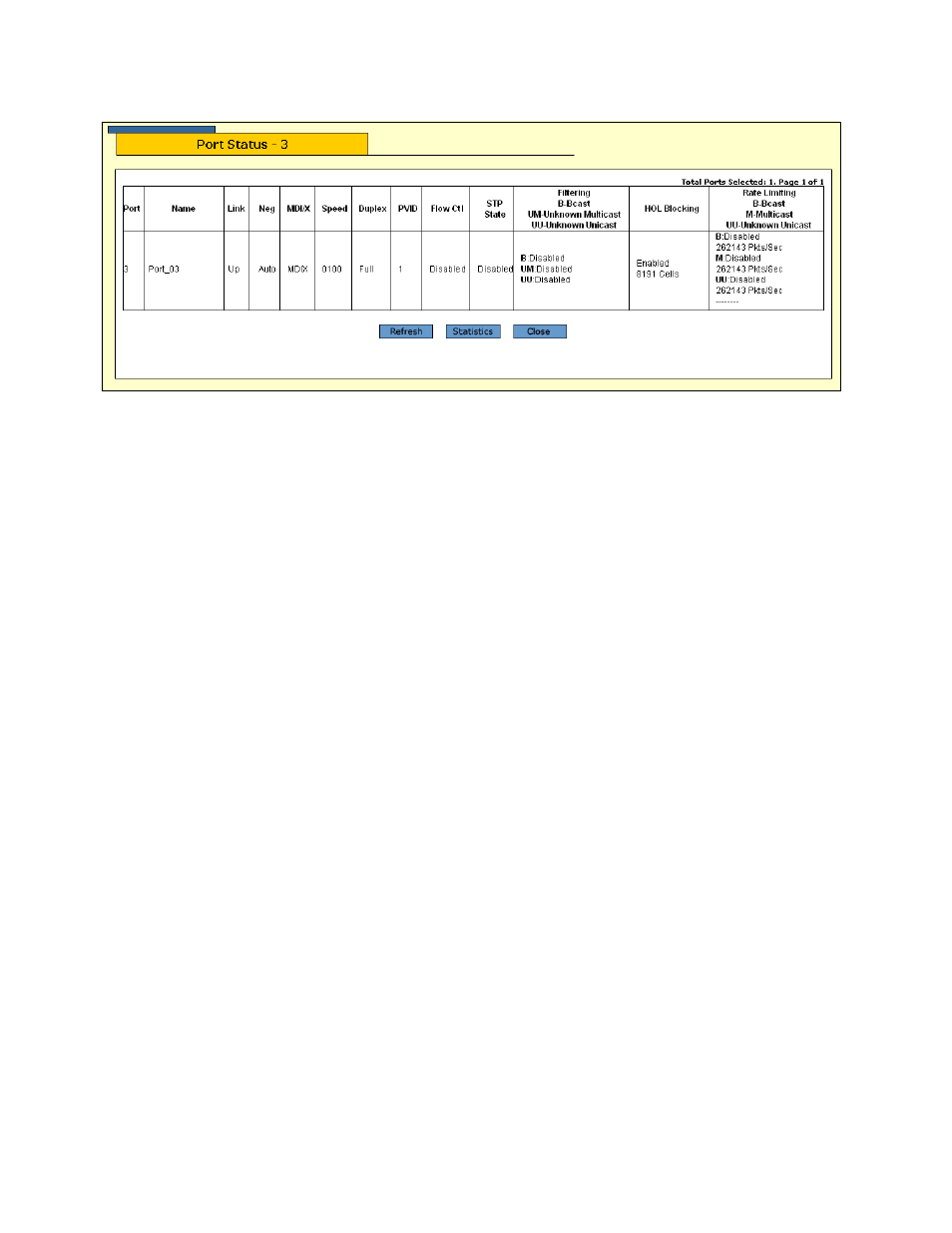

The Port Status page is shown in Figure 21.
Figure 21. Port Status Page
The Port Status page displays a table that contains the following
columns of information:
Port
The port number.
Name
The name of the port.
Link
The status of the link between the port and the end node
connected to the port. The possible settings are:
Up - A valid link exists between the port and the end node.
Down - The port and the end node have not established a valid
link.
Neg
The status of autonegotiation on the port. The possible settings
are:
Auto - Indicates that the port is using autonegotiation to set
operating speed and duplex mode.
Manua - Indicates that the operating speed and duplex mode
have been set manually.
MDI/X
The operating configuration of the port. The possible settings are
MDI and MDI-X.
