Chapter 9: Port Mirroring
116 Section I: Basic Features
Displaying the Port Mirror
To display the port mirror, perform the following procedure:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 6 on page 44
2. From the Monitoring menu, select the Layer 1 option.
The Layer 1 page is displayed with the Port Settings tab selected
by default, as shown in Figure 20 on page 81.
3. Select the Port Mirroring tab.
The Port Mirroring tab is shown in Figure 34.

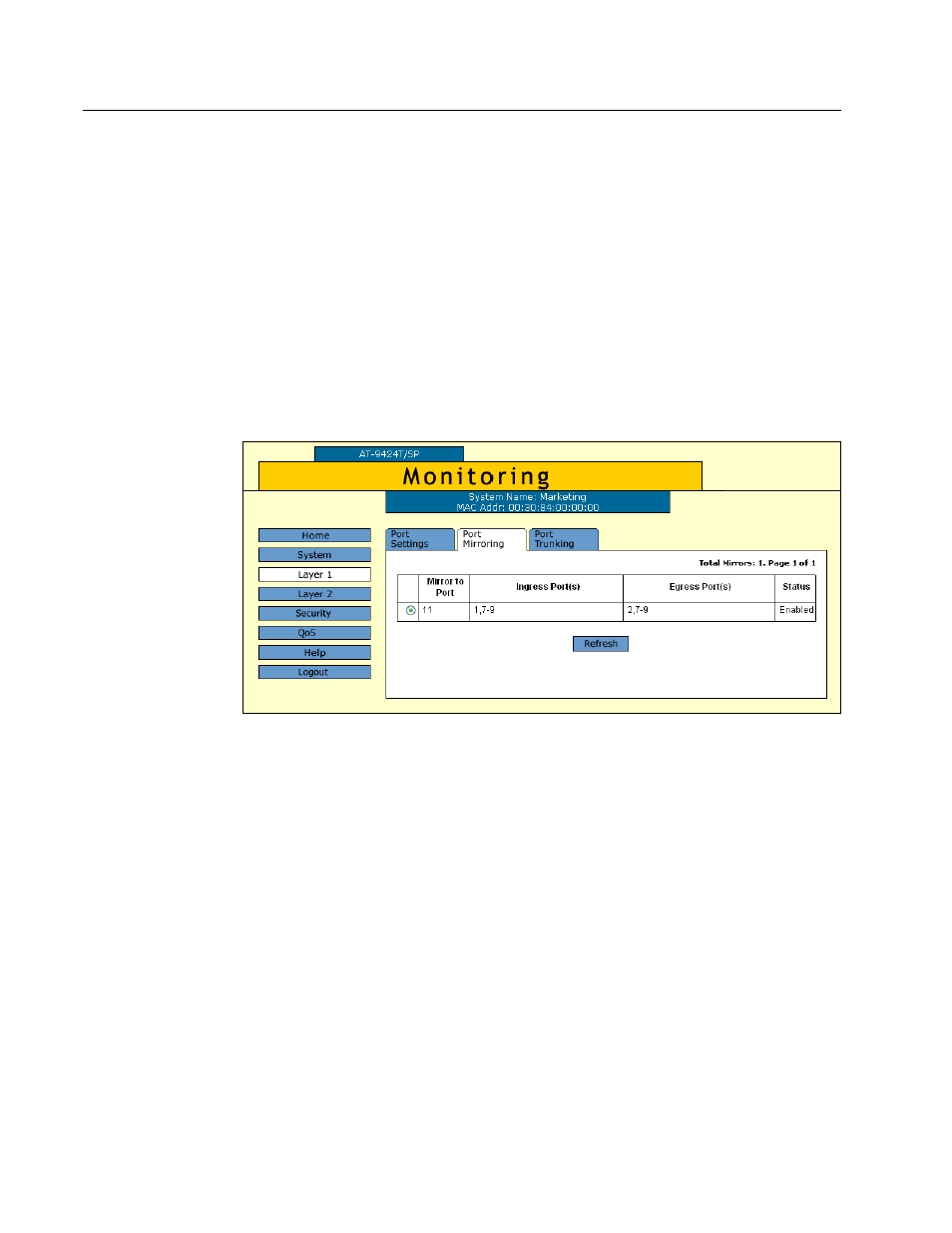

Figure 34. Port Mirroring Tab (Monitoring)
The Port Mirroring tab displays a table that contains the following
columns of information:
Mirror to Port
The destination port to which the traffic is copied and where the
network analyzer is located.
Ingress Port(s)
The source ports whose ingress traffic is mirrored to the
destination port.
Egress Port(s)
The source ports whose egress traffic is mirrored to the
destination port.
Status
The status of the mirroring feature. The possible settings are:
