Chapter 12: Quality of Service
146 Section II: Advanced Features

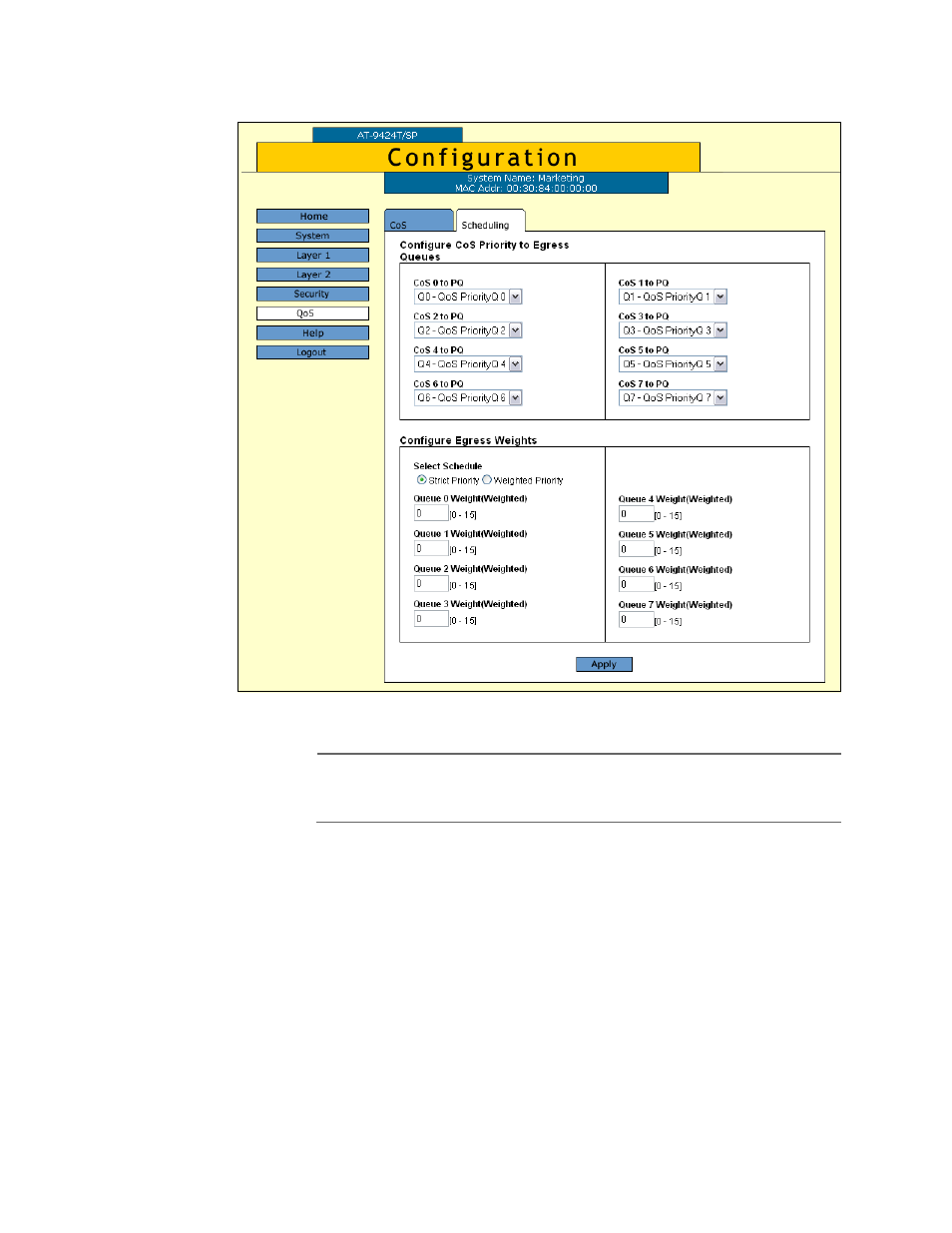

The Scheduling tab is shown in Figure 42.
Figure 42. QoS Scheduling Tab (Configuration)
Note
The Configure Egress Weights section in the tab is explained in the
next procedure, ”Configuring Egress Scheduling” on page 148.
4. In the Configure CoS Queues to Egress Queues section of the tab, click
the list for a CoS priority whose queue assignment you want to
change and select the new queue.
For example, to direct all tagged packets with a CoS priority of 5 to
egress queue Q3, you would use the list in CoS 5 to PQ and select
Q3 - QoS PriorityQ 3.
5. If desired, repeat Step 4 to change the egress queue assignment of
other CoS priorities.
6. Click Apply.
