AT-S63 Management Software Web Browser Interface User’s Guide
Section II: Advanced Features 135
Event
This item contains two parts. The first part is the name of the
module within the AT-S63 management software that generated
the event. The second part is a description of the event.
When you display the events in full mode, more information is
included. Figure 39 shows the same portion of the event log in
Figure 38 on page 134 but displayed in full mode.

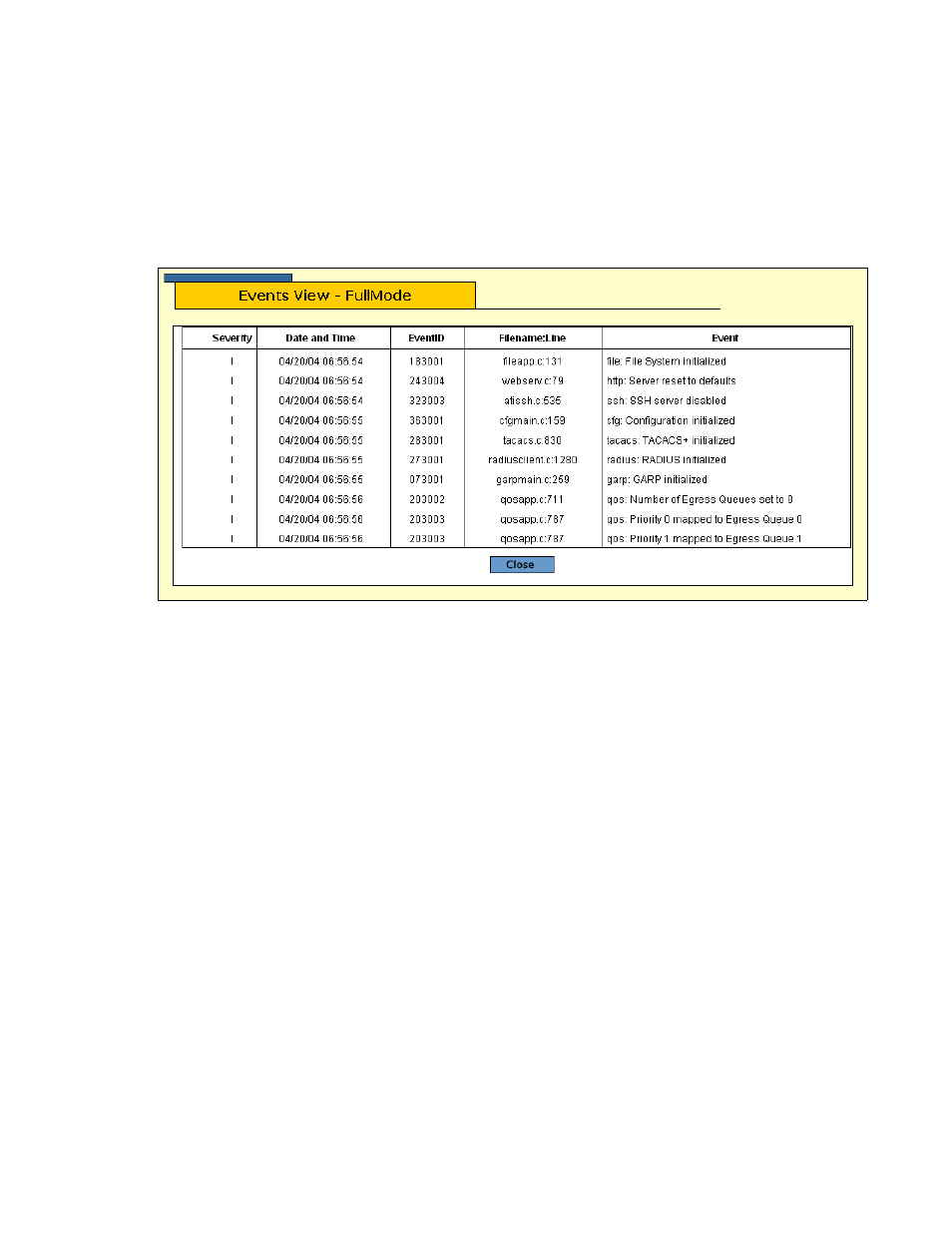

Figure 39. Event Log Example Displayed in Full Mode
In addition to the information displayed in Normal mode, the Full
mode also displays additional columns in the table, as described
below:
Event ID
A unique, random number assigned to each event.
Filename:Line
The AT-S63 software source file name and the line number in that
source file that produced the event.
9. Click one of the following buttons to scroll through the event log:
Last - Last page
First - First page
Next - Next page
Previous - Previous page
Close - Closes the log
