AT-S63 Management Software Web Browser Interface User’s Guide
Section I: Basic Features 63

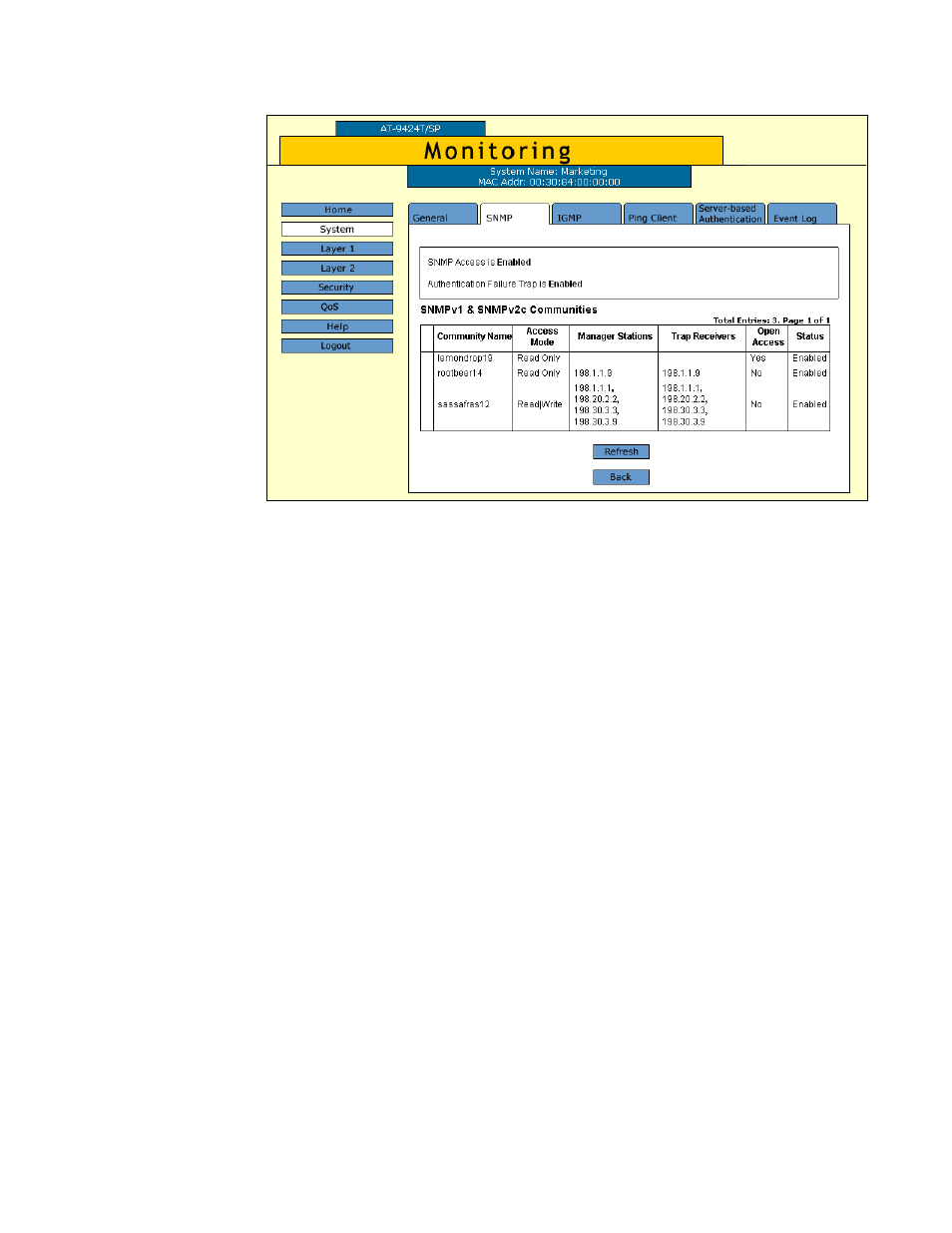

The SNMPv1 & SNMPv2c Communities tab is shown in Figure 14.
Figure 14. SNMPv1 & SNMPv2c Communities Tab (Monitoring)
The SNMPv1 & SNMPv2c Communities tab displays a table that
contains the following columns of information:
Community Name
The SNMP community name.
Access Mode
The access mode for access to that community. The possible
settings are Read Only and Read/Write.
Manager Stations
The IP addresses of the management stations that are allowed
SNMP access to the switch.
Trap Receivers
The IP addresses of up to 8 trap receivers on your network that can
receive traps from the switch.
Open Access
The status of access to the SNMP community by a management
station, one of the following settings:
Yes - Any management station can access the SNMP community.
No - Access to the SNMP community is only available to a
management station configured within this community.
