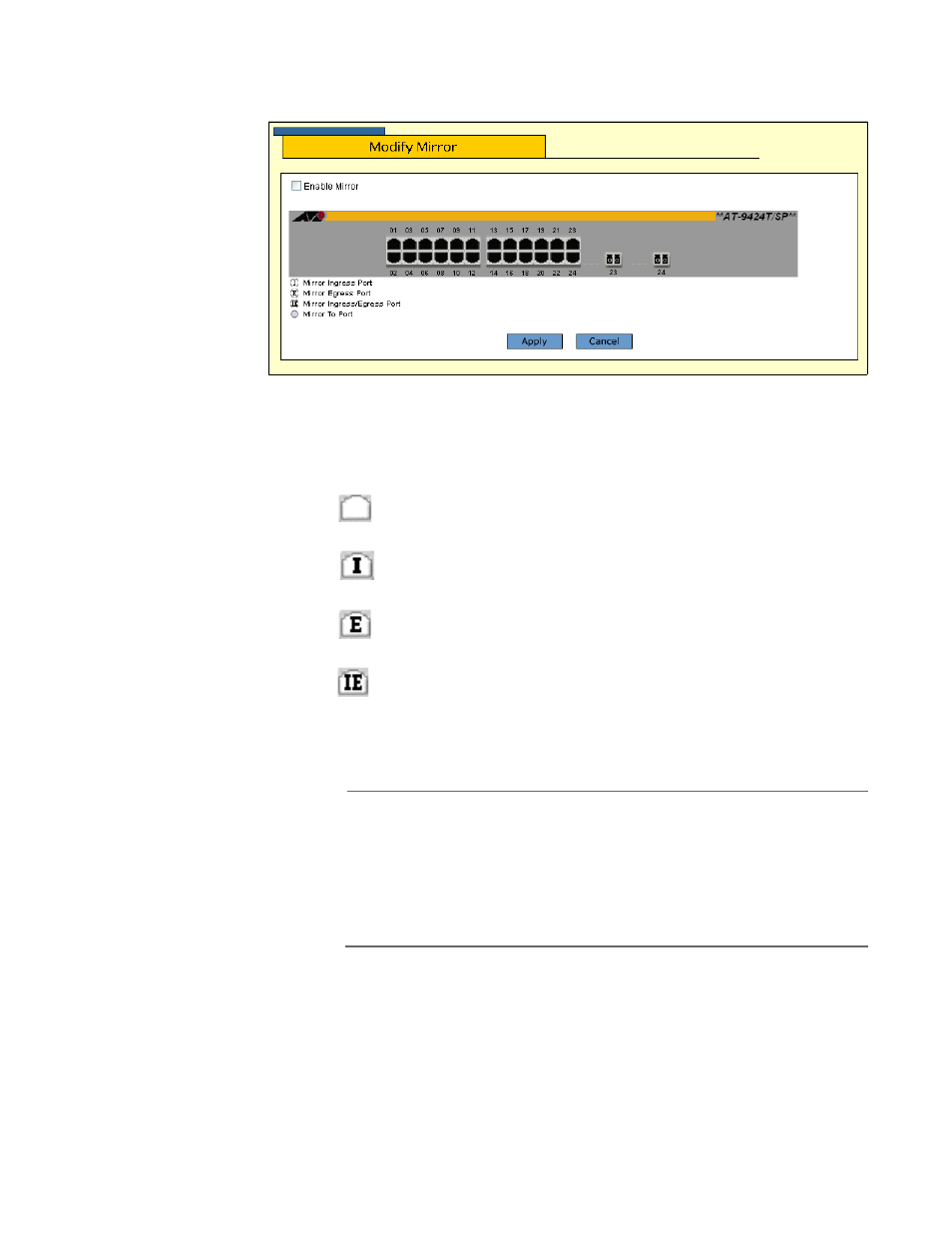

The Modify Mirror page is shown in Figure 32.
Figure 32. Modify Mirror Page
5. Click the ports of the port mirror. Clicking a port toggles it through the
possible settings, which are as follows:
The destination (mirror) port. There can be only one
destination port.
A source port. The port’s ingress traffic is mirrored to the
destination port.
A source port. The port’s egress traffic is mirrored to the
destination port.
A source port. The port’s ingress and egress traffic is
mirrored to the destination port.
You can mirror just one port, a few ports, or all of the ports on the
switch, with the exception, of course, of the destination port.
Note
When a transceiver is inserted into an uplink slot and a link is
established, that slot becomes a primary uplink port and the
corresponding backup port, 23R or 24R, automatically transitions to
redundant uplink status. Any settings for port mirroring remain
intact when the backup port makes the transition to a redundant
uplink state.
