88 AR700 Series Router User Guide
Software Release 2.7.1
C613-02047-00 REV A
Before You Start
1. Ensure that the routers you want to configure are connected as described in
the Installation and Safety Guide.
2. Connect a terminal to the console port (port 0) on each router as described
in the Installation and Safety Guide. Alternatively, you can connect a PC to the
console port and use a terminal emulation program like Windows™
Terminal.
3. Login to the MANAGER account on each router (see “Logging In” on
page 15 ).
Configuring IP
This example ( Figure 13 on page 88 ) illustrates the steps required to configure
TCP/IP using the router’s command line interface. Two routers running TCP/
IP will be connected together using the Point-to-Point Protocol (PPP) over a
wide area link.

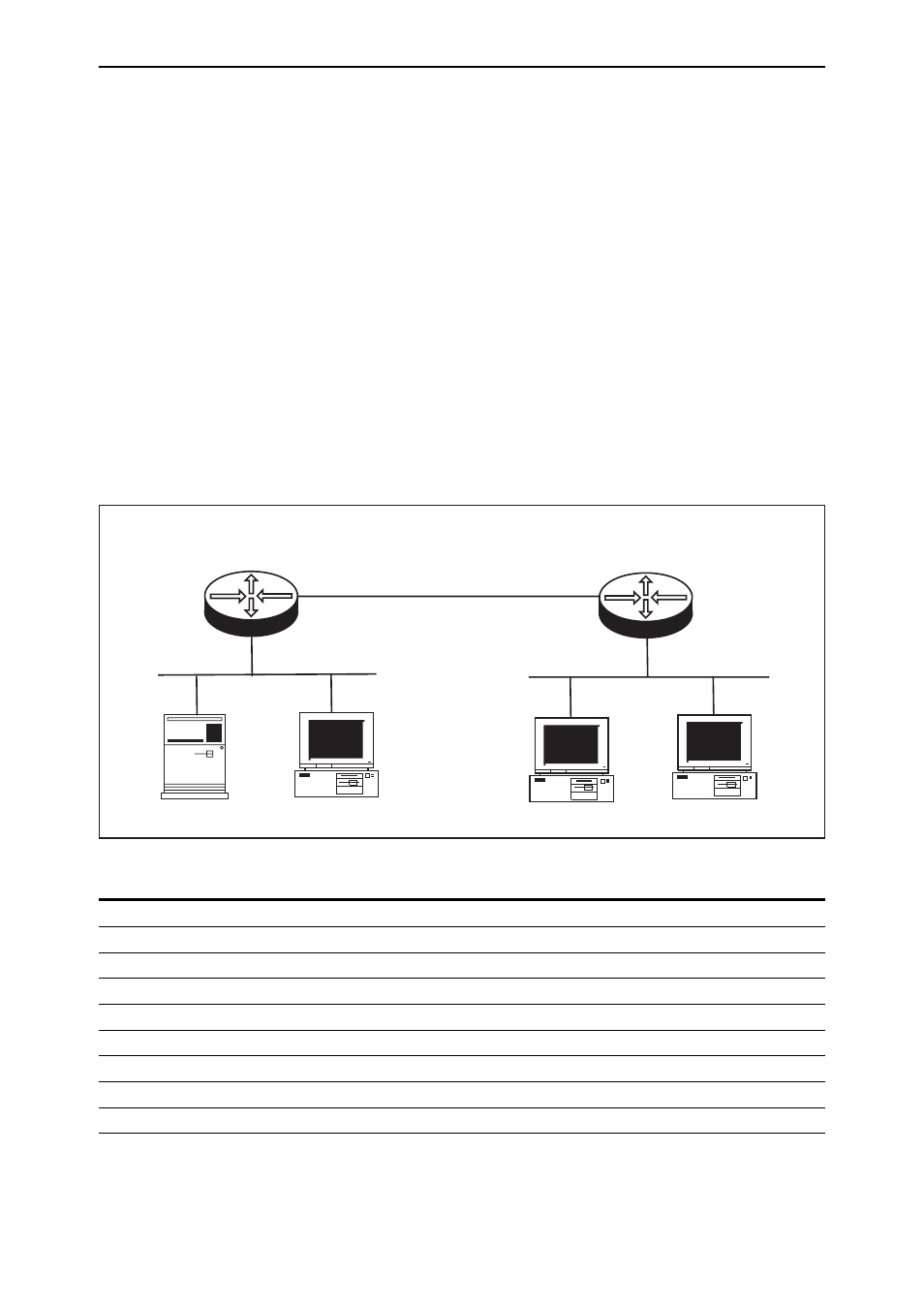

Figure 13: Example configuration for an IP network.
172.16.254.1 172.16.254.2
192.168.31.16 172.16.8.0
192.168.31.30 172.16.8.33
PPP Data Link
UGIP1_R
Head Office Router Remote Office Router
Table 11: Example configuration parameters for an IP network .
Parameter Head Office Router Remote Office Router
Eth interface eth0 eth0
Eth interface IP address 172.16.8.33 192.168.31.30
Eth IP subnet address 172.16.8.0 192.168.31.16
Eth LAN IP subnet mask 255.255.255.0 255.255.255.240
PPP interface ppp0 ppp0
PPP interface IP address 172.16.254.1 172.16.254.2
PPP interface IP subnet address 172.16.254.0 172.16.254.1
PPP interface IP subnet mask 255.255.255.0 255.255.255.0
