34 AR700 Series Router User Guide
Software Release 2.7.1
C613-02047-00 REV A

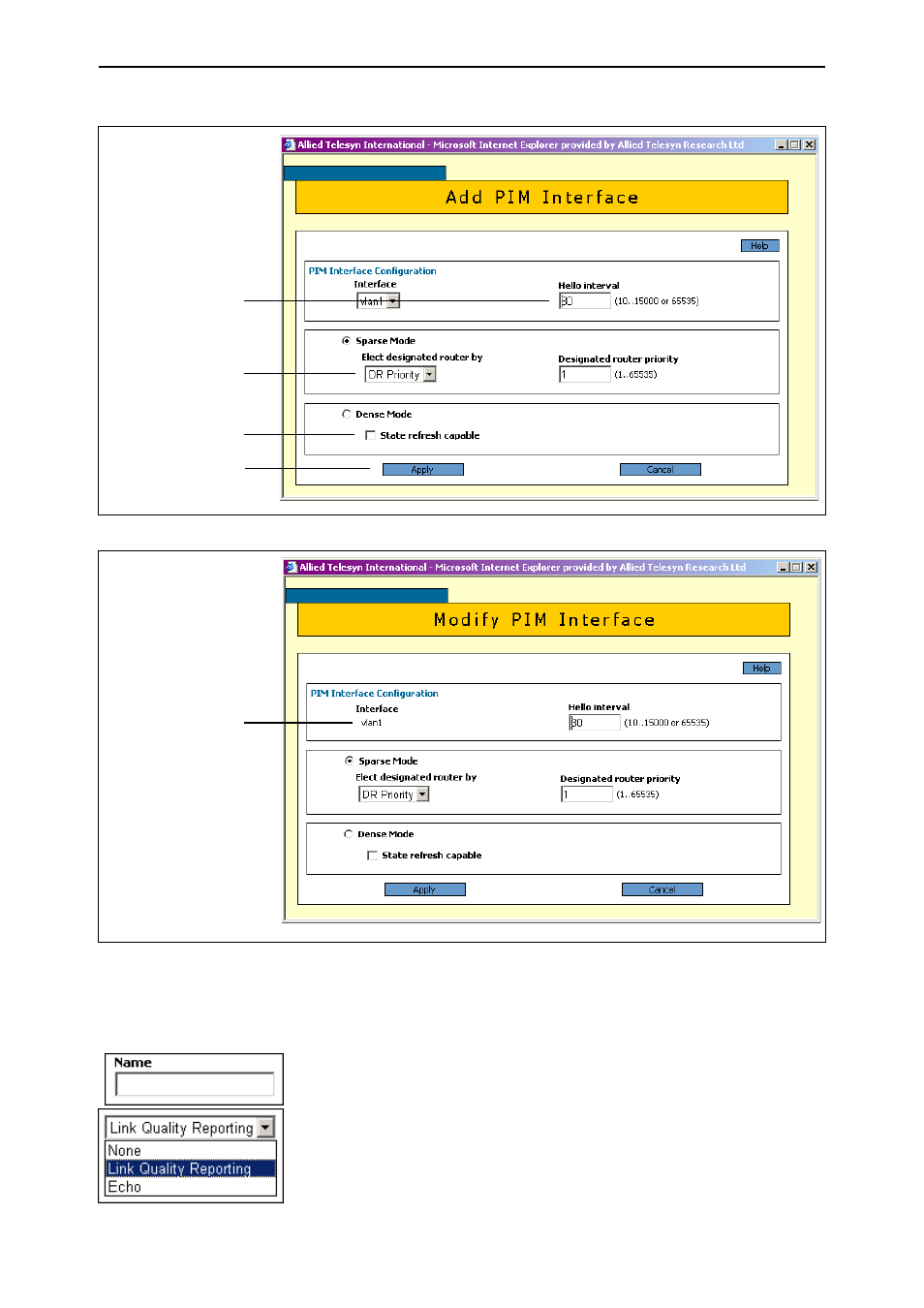

Figure 7: An example of a popup “add” page
Figure 8: An example of a popup “modify” page
Editable Fields
GUI pages allow you to enter values or select options through a range of field
types. These include:
• text fields, to enter character strings or numbers, especially for fields
where there are few limits on the entries (such as names). See the online
help for valid characters and field length
• select lists, to select one option from a small number of possibilities.
Only valid options are listed. For example, if you are asked to select an
IP interface from a drop-down list, the only interfaces displayed will be
those you have assigned an IP address to
Select list
Apply and Cancel
buttons
Checkbox
Text field
Non-editable field
