Use the menus and buttons on the GUI pages to navigate, not your browser’s
buttons, to ensure that the configuration settings are saved correctly.
The summary page displays a selection table of existing items and information
about them (for example, existing PIM interfaces; see
Figure 6 on page 33 ).
Below the selection table is a row of buttons, labelled Add, Modify and
Remove.
To add a new item, click the Add button. This opens the popup “add” page,
which lets you create a new item (for example, configure a new PIM interface;
see
Figure 7 on page 34 ).
To modify an existing item, select it by clicking on the option button at the
beginning of its entry in the selection table. Then click the Modify button. This
opens the popup “modify” page, which lets you expand or change the
configuration (for example, change the Hello interval for a PIM interface; see
Figure 8 on page 34 ).
To delete or destroy an item, select it by clicking on the option button at the
beginning of its entry in the selection table. Then click the Remove button.

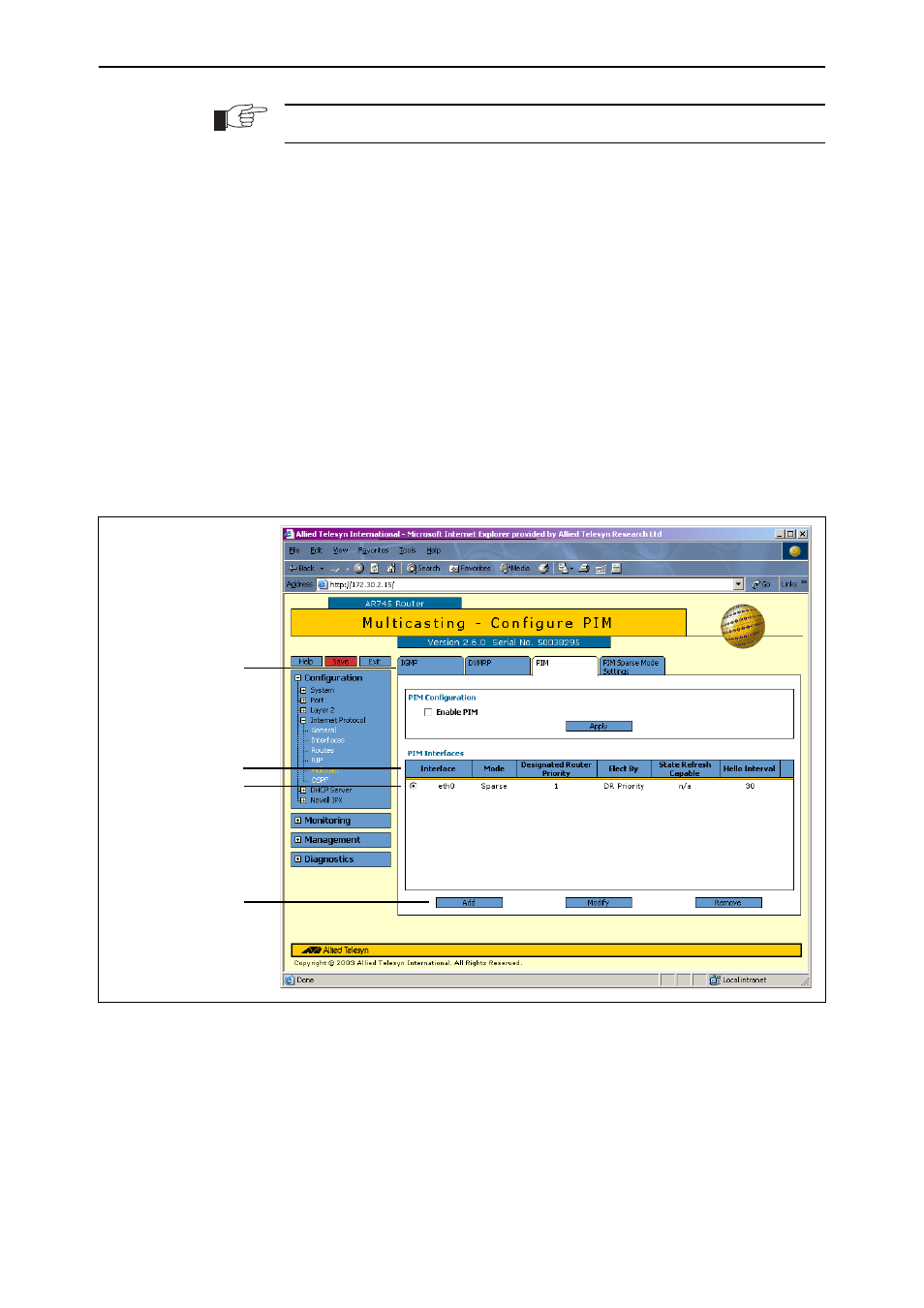

Figure 6: An example of a configuration page with a selection table
Heading row
Add, Modify and
Remove buttons
Radio button
Tabs
