EZ−Guide 500 to Rawson controller cable pinouts

The pinouts for the EZ−Guide 500 to Rawson controller cable (PN 69730) is shown below:

TO EZ−GUIDE 500
PINS

TO RAWSON
PINS

2

−−−−−−−−− 2

3

−−−−−−−−− 3

5

−−−−−−−−− 5

[−−−−−− 4

[−−−−−− 6

[−−−−−− 7

Note: Pins 4, 6 and 7 on the Rawson connector must be wired together.

Rawson Controller Setup

To configure the EZ−Guide 500 lightbar to communicate with the Rawson variable rate controller, do the
following:

EZ−Guide 500 lightbar setup

On the EZ−Guide 500 lightbar:

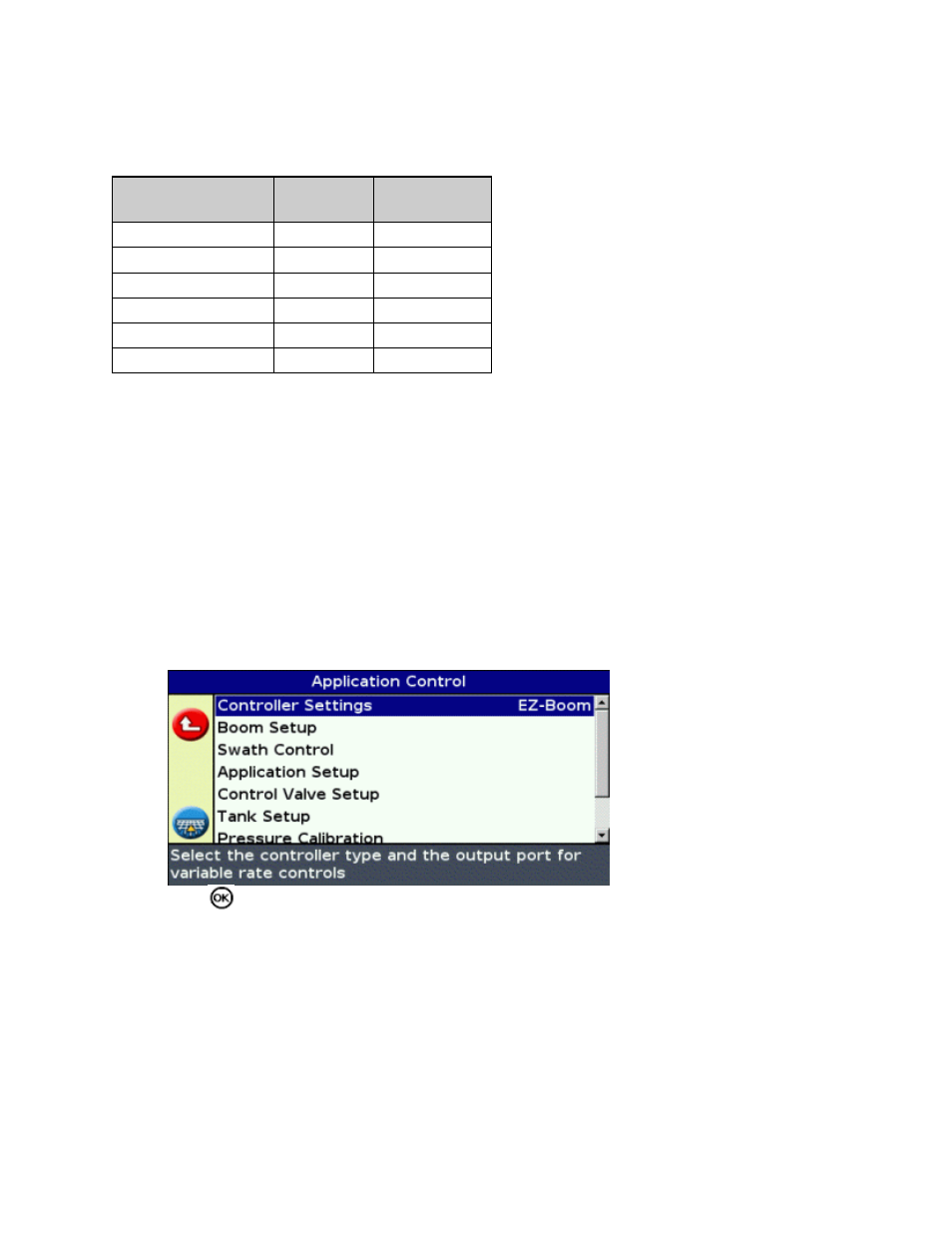

Select Configuration / Application Control / Controller Settings .

1.

Press

. The Controller Settings screen appears.

2.

Change Controller type to Rawson.

3.

34
