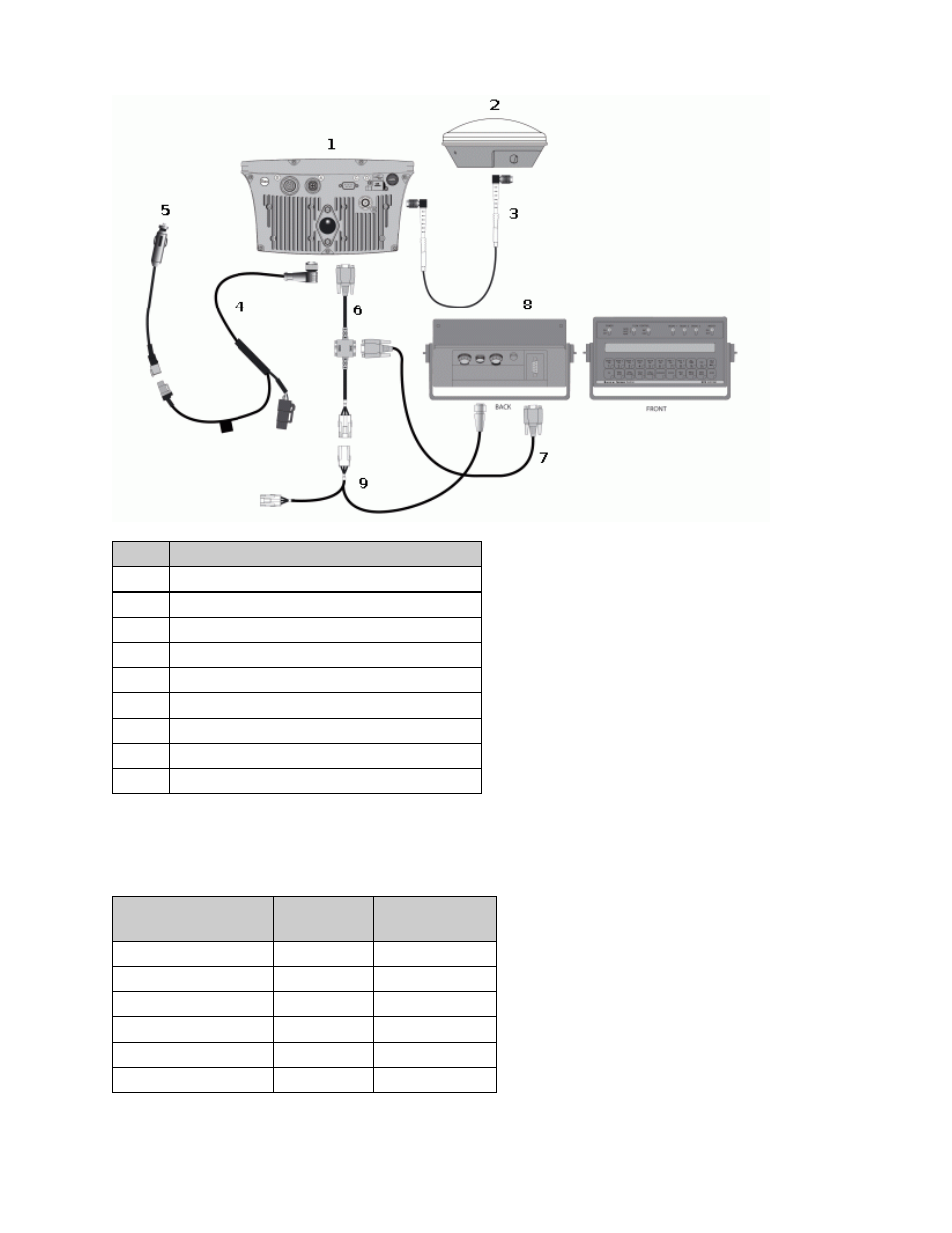

ITEM DESCRIPTION
1 EZ−Guide 500 lightbar
2 Ag 15 antenna
3 Antenna cable (PN 50449)
4 EZ−Guide 500 power cable (PN 62817)
5 To power
6 External interface cable (PN 62749)
7 Raven to EZ−Guide 500 cable (PN 69729)
8 Raven SCS 400 or 600 series controller
9 Radar cable (PN 54805−00)
EZ−Guide 500 to Raven controller cable pinouts
The pinouts for the EZ−Guide 500 to Raven controller cable (PN 69729) is shown below:
TO EZ−GUIDE 500
PINS TO RAVEN
PINS
2 −−−−−−−−− 3
3 −−−−−−−−− 2
5 −−−−−−−−− 5
[−−−−−− 4
[−−−−−− 6
[−−−−−− 8
Note: Pins 4, 6 and 8 on the Raven connector must be wired together.
