EZ−Boom 2010 System
Connecting the EZ−Boom 2010 System

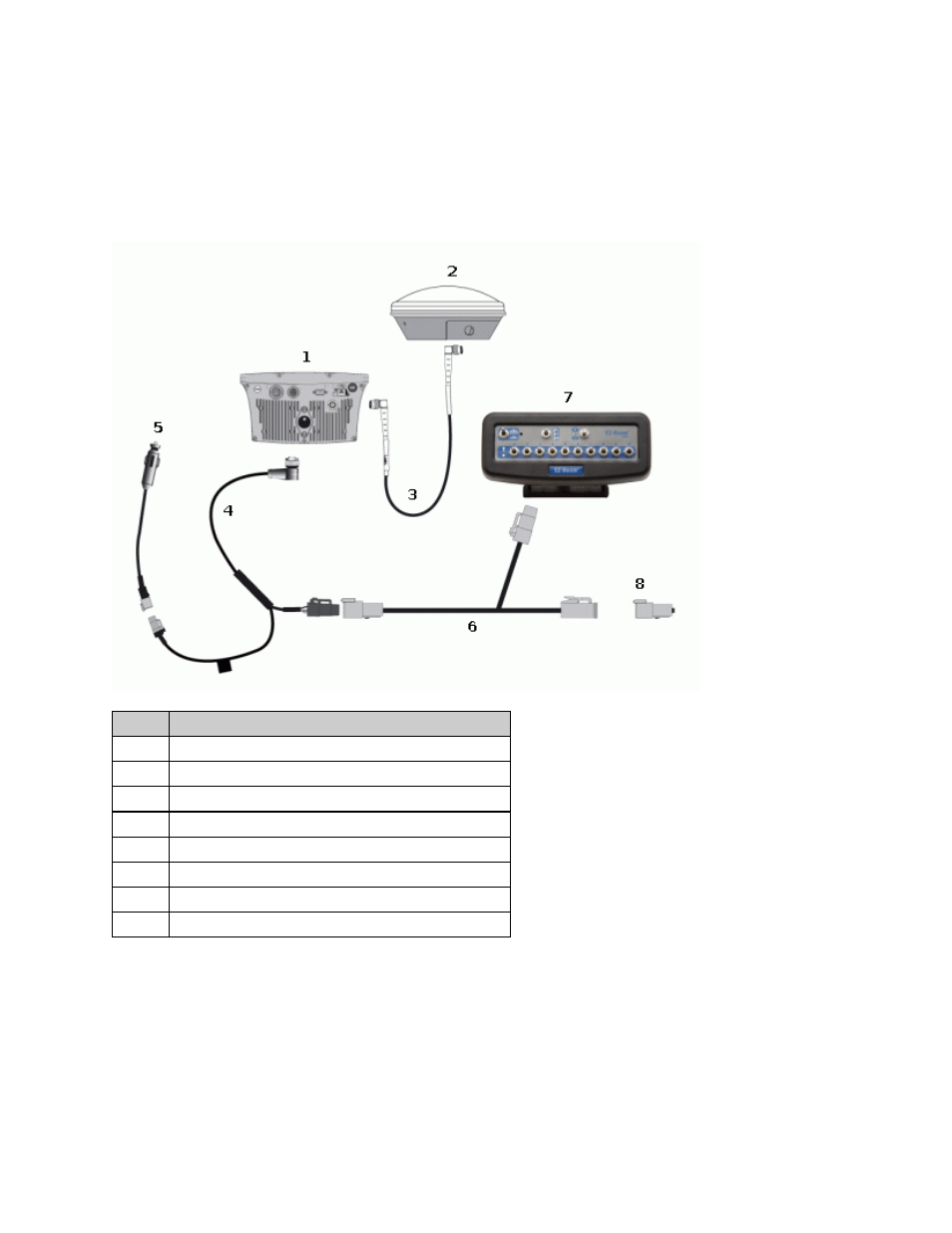

Connect the EZ−Boom 2010 system to the EZ−Guide 500 lightbar as shown below.
ITEM DESCRIPTION
1 EZ−Guide 500 lightbar
2 Ag 15 antenna
3 Antenna cable (PN 50449)
4 EZ−Guide 500 power cable (PN 62817)
5 To power
6 EZ−Boom to EZ−Guide 500 cable (PN 61437)
7 EZ−Boom controller
8 CAN terminator (PN 59783)
Connect the EZ−Boom 2010 system to the EZ−Steer 500 system as shown below.
9
