Mounting Options
Mounting Options
The repeater can be mounted on a Tripod, pole or other permanent location as described in the following sections.

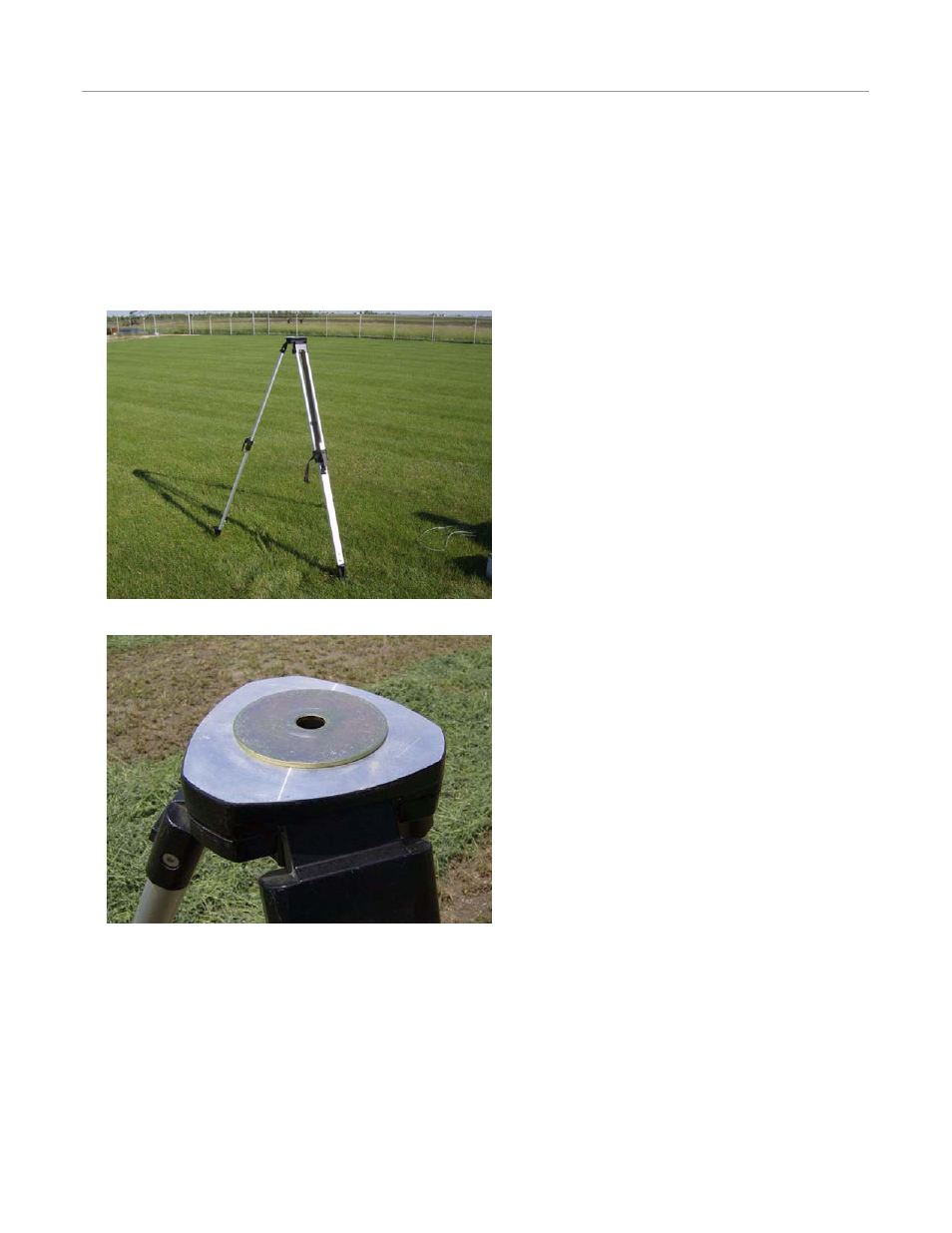

Tripod Mounting
If the optional Tripod (500-0163-01) has been ordered use the following procedure to set up the Repeater.
1. Set up the Tripod so the mounting plate is level.
2. Place the Washer on top of the Tripod base.
3. Firmly attach the repeater to the Tripod with the Tripod nut.
4. Verify that the antenna is perpendicular to the ground after it is set up.
