Hardware Installation Manual 61
Daisy Chaining

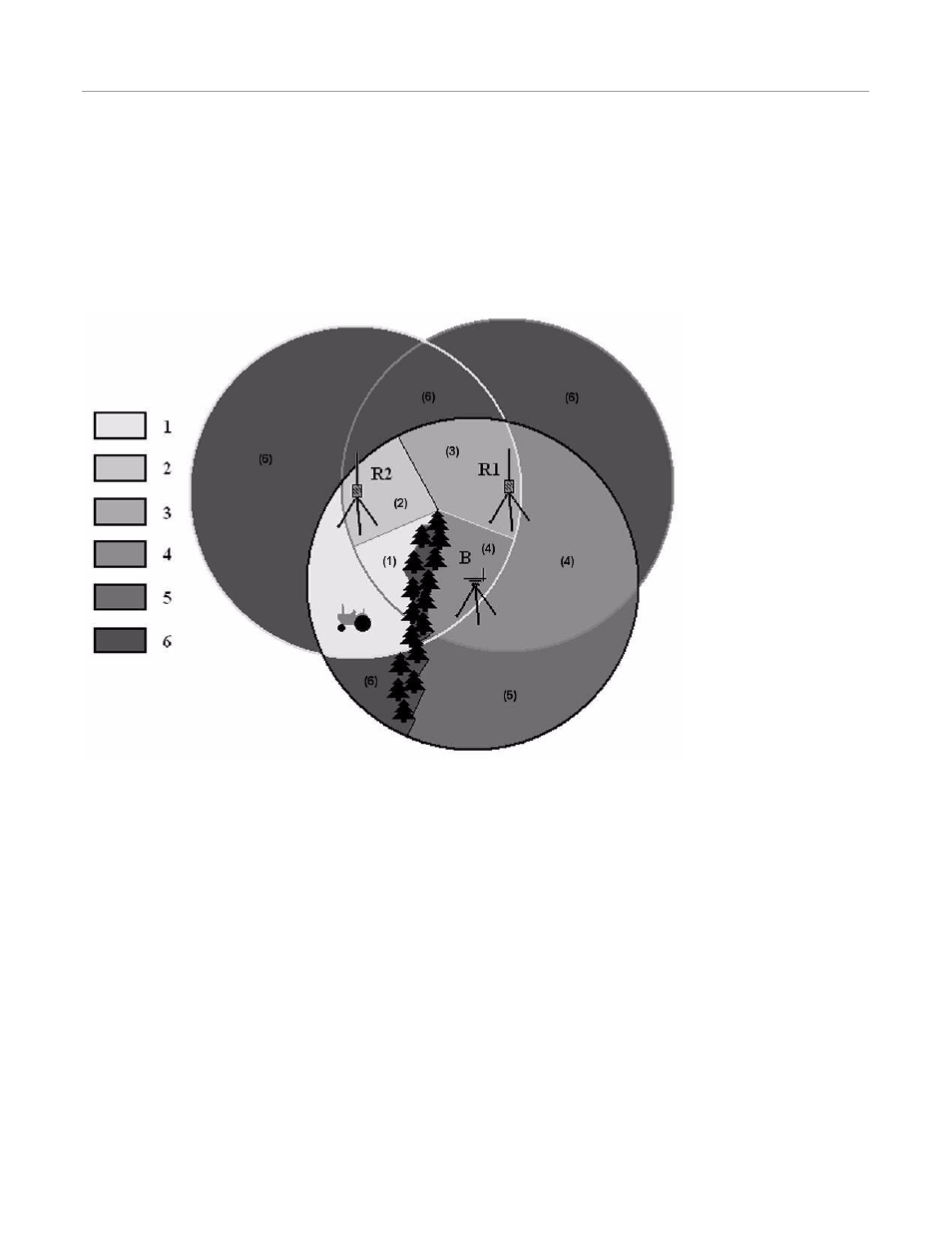

Figure 6-2 shows an example of repeaters being set up in a daisy chain configuration.
•
The shaded area labeled (6) no coverage by a RTK signal (or are outside the 6 mile (9.7 km) range of the Base Station).
•
The shaded area labeled (5) indicate coverage by the Base Station transmitter (B) only.
•
The shaded area labeled (4) indicate coverage by the Base Station and Repeater 1 (R1).
•
The shaded area labeled (3) indicate coverage by the Base Station, Repeater 1, and Repeater 2 (R2).
•
The shaded area labeled (2) indicate coverage by Repeater 1 and Repeater 2.
•
The shaded area labeled (1) coverage by Repeater 2 only.
Figure 5-2 Example of Repeaters Set up in Daisy Chain
