Hardware Installation Manual 29
Base Station Components

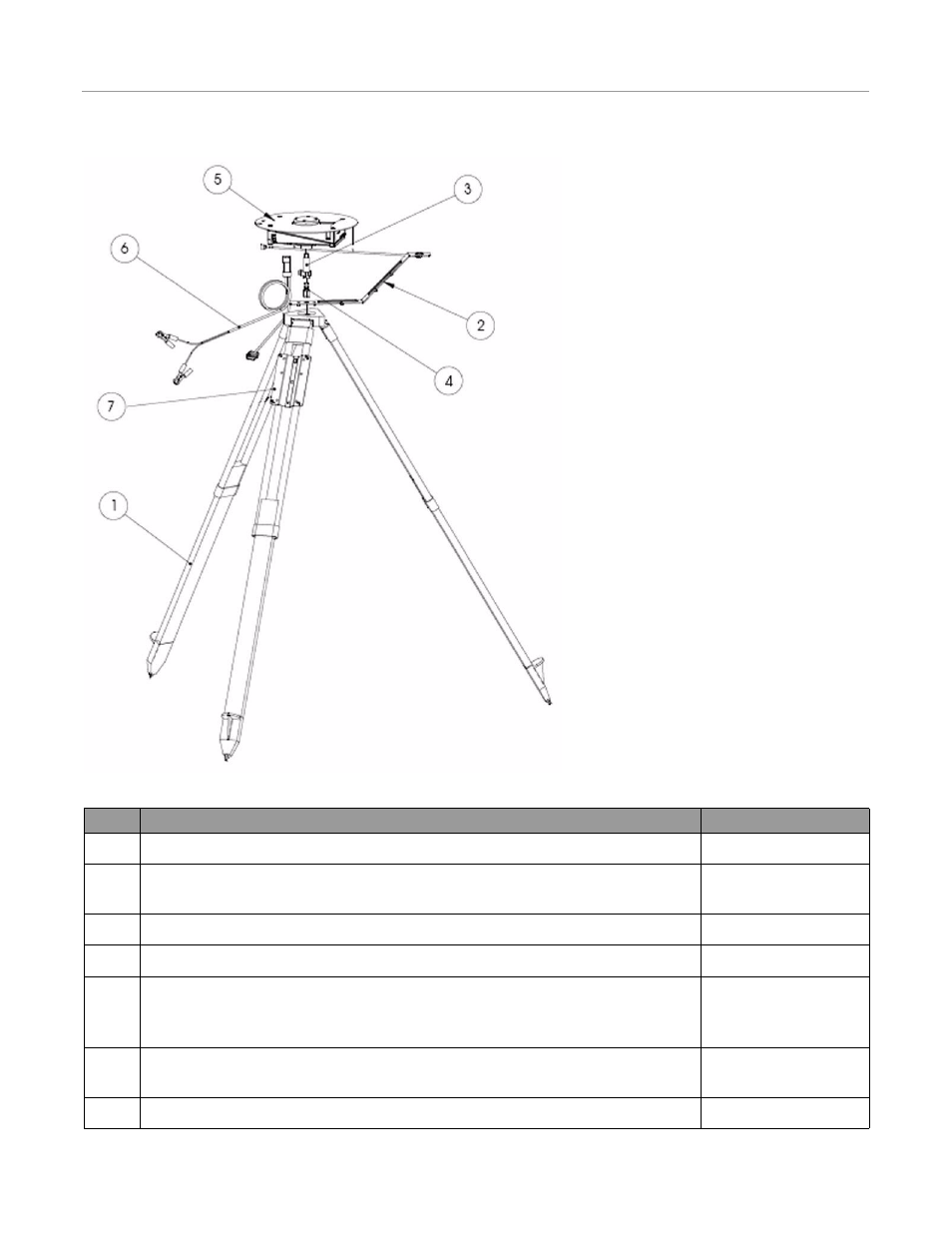

Figure 3-2 AFLink Mobile Base Station Components
Table 3-1 AFLink Mobile Base Station Component Definitions and Part Numbers
Part Description Part Number
1. Tripod 500-0163-01
2. Radio Modem Antenna Bracket Assembly (Includes bracket, Radio Modem Antenna
Cable, and cable fasteners) 202-0148-01
3. Female Quick-Release Coupler (To be attached to the Base Station) 311-0005-01
4. Male Quick-Release Coupler (To be attached to the Tripod mount) 311-0003-01
5. A5 Steer Base Without Radio Mobile Base Station (Base station has the following ports
and parts):
• Power Cable Plug-in (Located on the bottom of the Base Station)
200-0279-01
6. 12-Volt Battery Power Supply and Data Cable (A 12-volt marine-type, deep-cycle
battery must be supplied by the operator) 201-0226-01
7. Radio Modem Mounting Bracket Assembly 200-0197-01
