Hardware Installation Manual 33
Connecting the Components

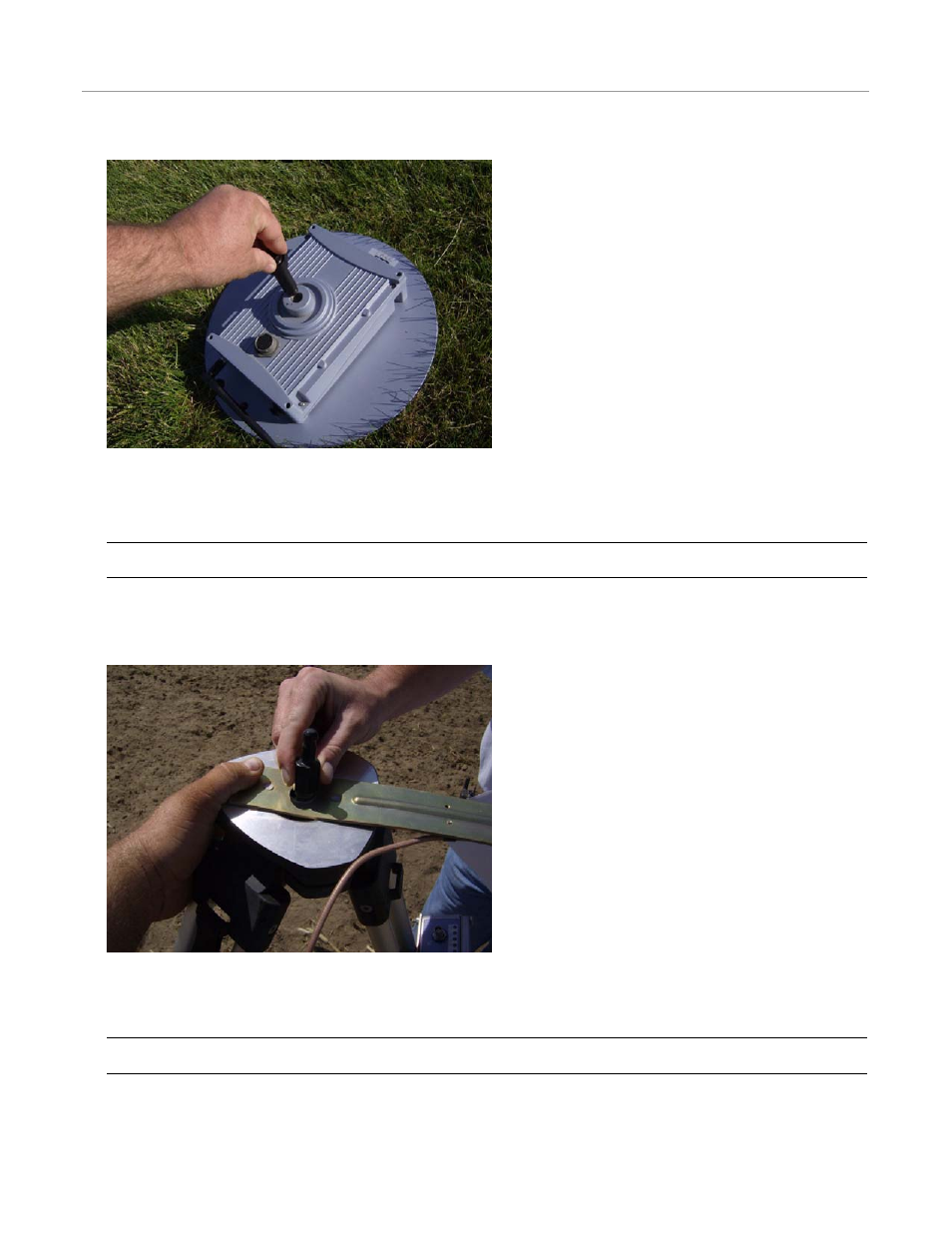

3. Attach the Female Quick-Release Coupler to the bottom of the Base Station.
4. Assemble the Radio Modem Antenna bracket as shown. Attach the Radio Modem Antenna to the bracket and then attached
to one end and the radio modem coax cable to the antenna. Secure the radio modem coax cable to the bracket using the
plastic clips.
Note: This assemble can be kept together when disassembling and storage.
5. Place the Radio Modem Antenna bracket on top of the mounting plate of the Tripod. Attach the Male Quick-Release
Coupler to the Tripod with the attached nut so that it holds the Radio Modem Antenna Mounting Bracket to the top of the
Tripod.
6. Mount the Base Station on top of the Tripod by connecting the female coupler to the male coupler.
7. Attach the Radio Mounting Bracket to the AFLink radio modem.
Note: This bracket can remain attached to the radio modem during transport and storage.
