Hardware Installation Manual
37
Breaking Down the Base Station

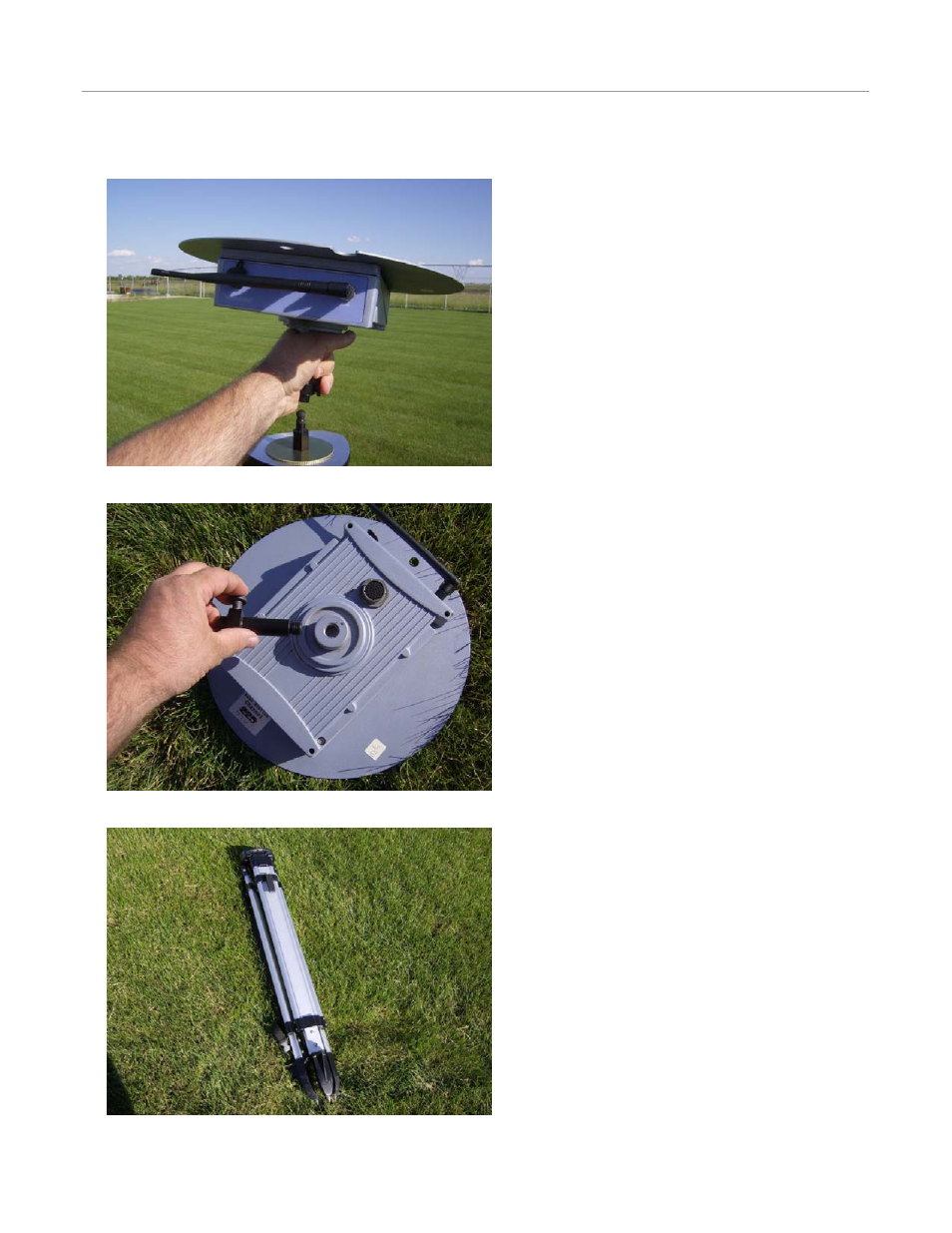

3. Fold the Radio Modem Antenna so it wraps around the Base Station. Press the Female Quick-Release Coupler button and
remove the Base Station from the Tripod.
4. Remove the Female Quick-Release Coupler from the Base Station.
5. Collapse the Tripod. The Washer and Male Quick-Release Coupler can stay attached to the Tripod.
