Ag Leader Base Station Hardware Manual User Manual
Page 54
52
AutoSteer System
Installing the AFLink Radio Modem

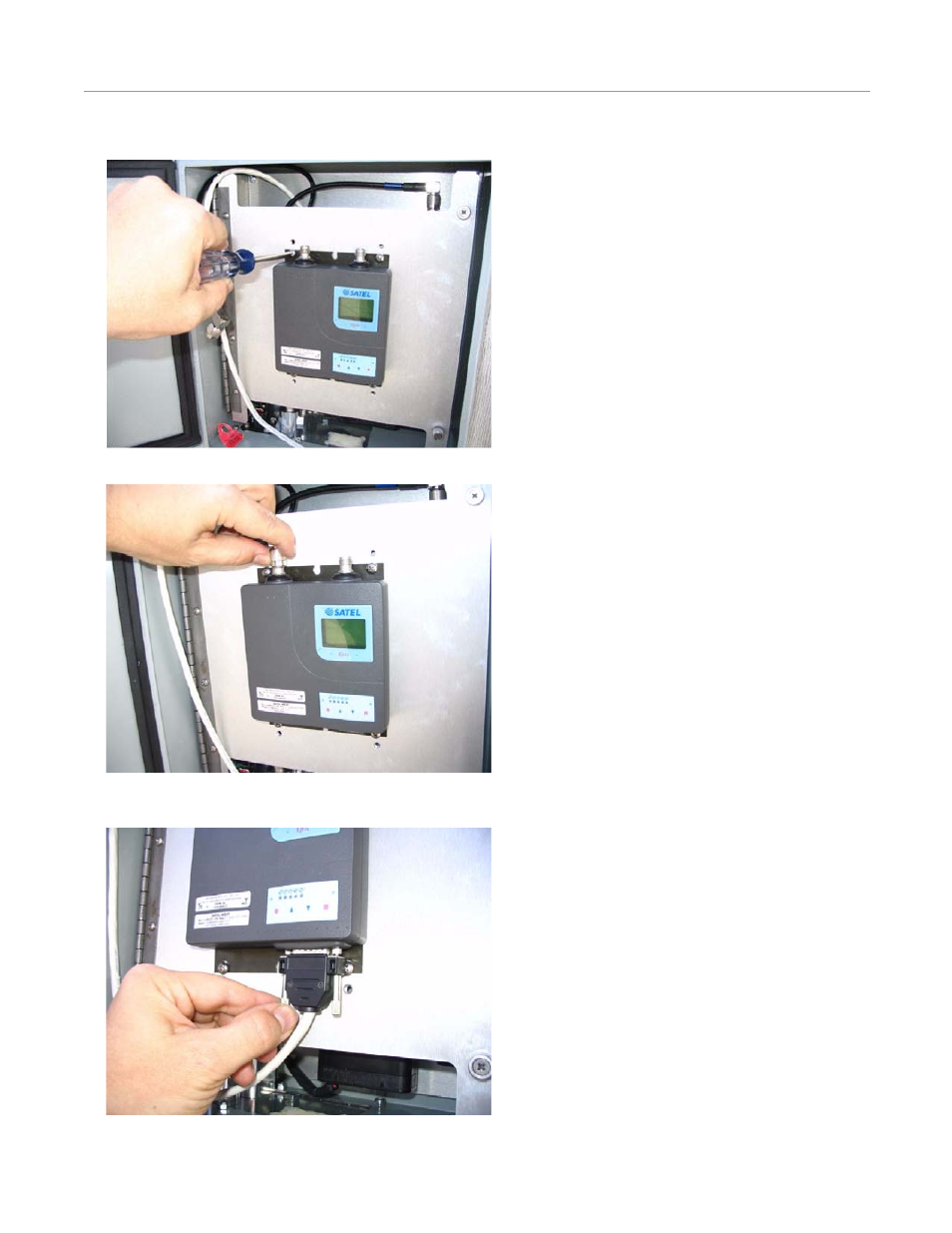

6. Install AFLink radio modem and reattach using screws that were just removed.
7. Connect the Radio Modem Antenna lead from the enclosure to the left antenna connector on the AFLink radio modem.
8. Connect the radio modem power/data cable from the Base Station Receiver to the power/data port of the AFLink radio
modem.
