34 Getting started
5. Choose one of the following options:
• To continue with the first step (setting the switch IP address), click OK. The Set Switch IP Address
dialog box ( Figure 17 ) opens. Go to step 6 .
• To skip the switch setup for now, click Cancel. (To set up the switch later, see the procedures in
Managing switches on page 43. If you do not complete switch set up before you exit Simple SAN
Connection Manager, the New Switch Setup dialog box will open again the next time you start the
application.)
The Set Switch IP Address dialog box ( Figure 17 ) shows the switch name and current IP address.

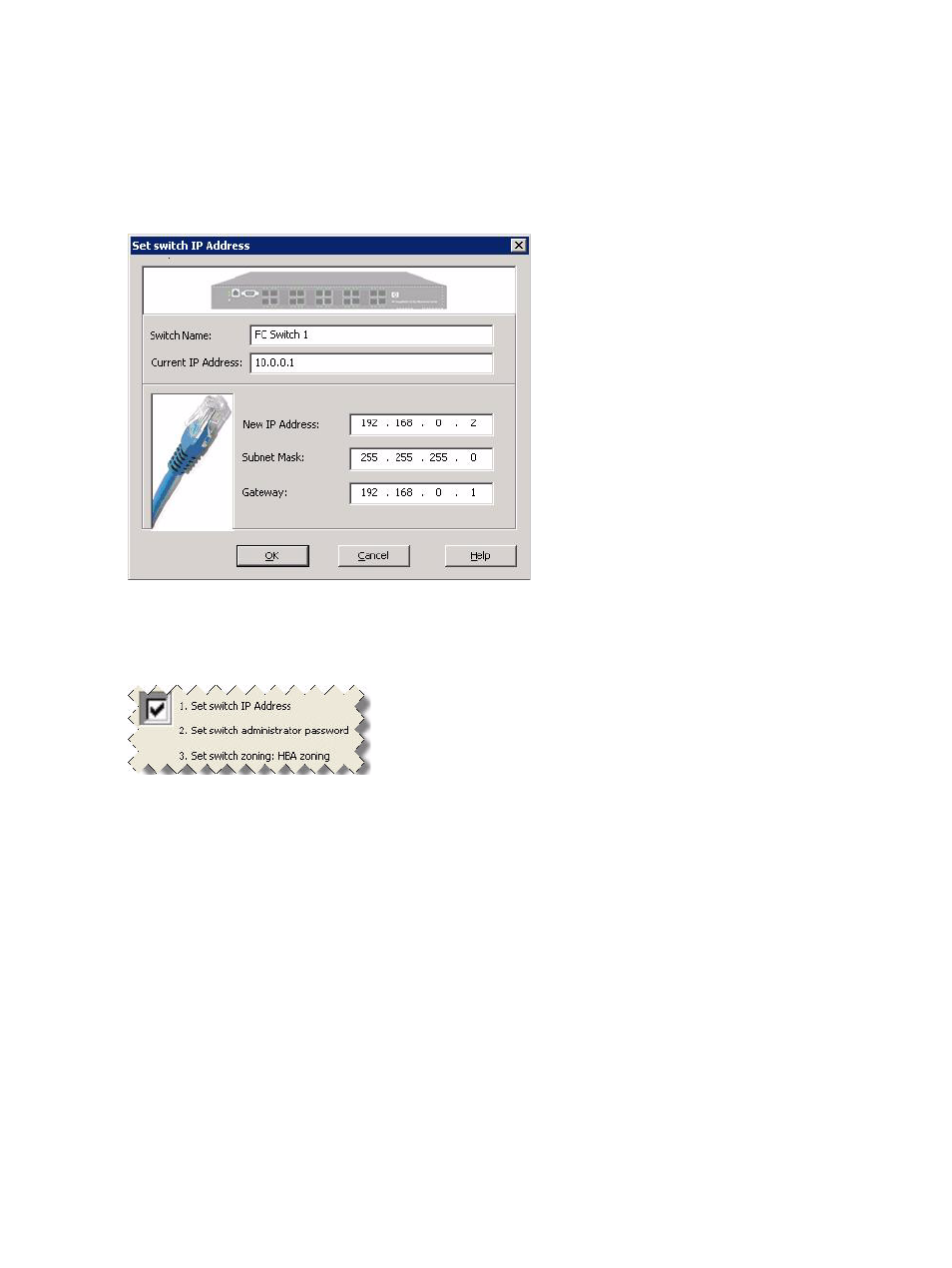

Figure 17 Set Switch IP Address dialog box
6. Enter a new IP address, subnet mask, and gateway, and then click OK.
The New Switch Setup dialog box now shows a check mark next to the first step, “Set switch IP
address,” ( Figure 18 ) indicating that you have completed that task.
Figure 18 First step of New Switch Setup completed
7. A message box asks if you want to change the factory default switch administrator password. Choose
one of the following options:
• To continue with the next step of switch setup, click Yes. The Set Switch Admin Password dialog box
( Figure 19 ) opens. Go to step 8 .
• To change the default password later, click No. (See Setting the switch admin password , page 46,
for a procedure for changing the switch admin password—either the default or the current
password—to a new password).
