Page 28
28
Getting started
shows an example of the application window.

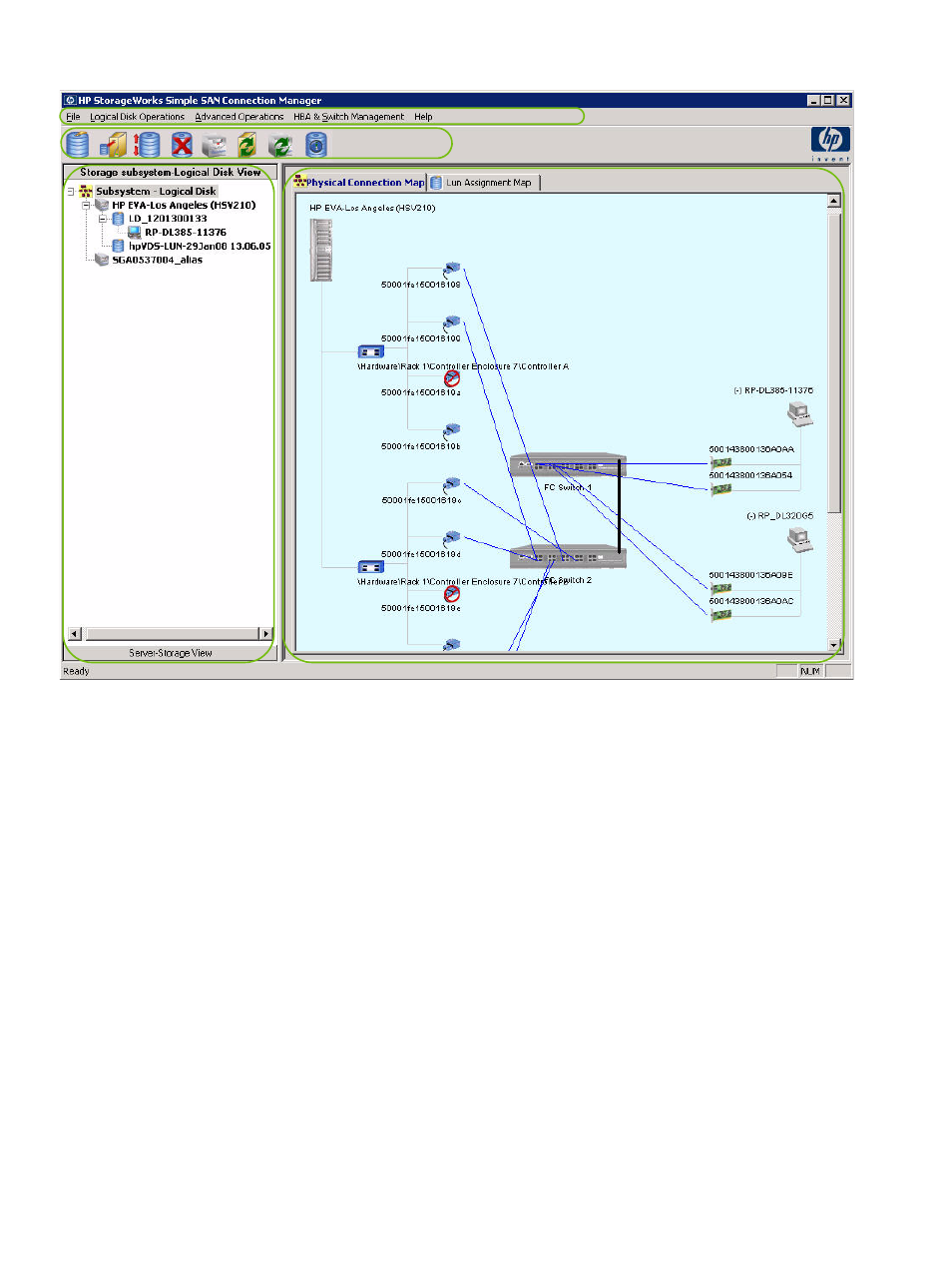

Figure 14
Simple SAN Connection Manager user interface
Menu bar
The Simple SAN Connection Manager menu bar contains the following menus, each of which is described
in detail in this section:
• Logical Disk Operations menu
• HBA & Switch Management menu
Toolbar
Menu Bar
Content Pane
Navigation Pane
