8. Install the Integrated Array Bypass assembly, as shown in Figure 4-10.

IMPORTANT: The Integrated Array Bypass assembly cable comes as a standard
accessory in the hardware option kit.

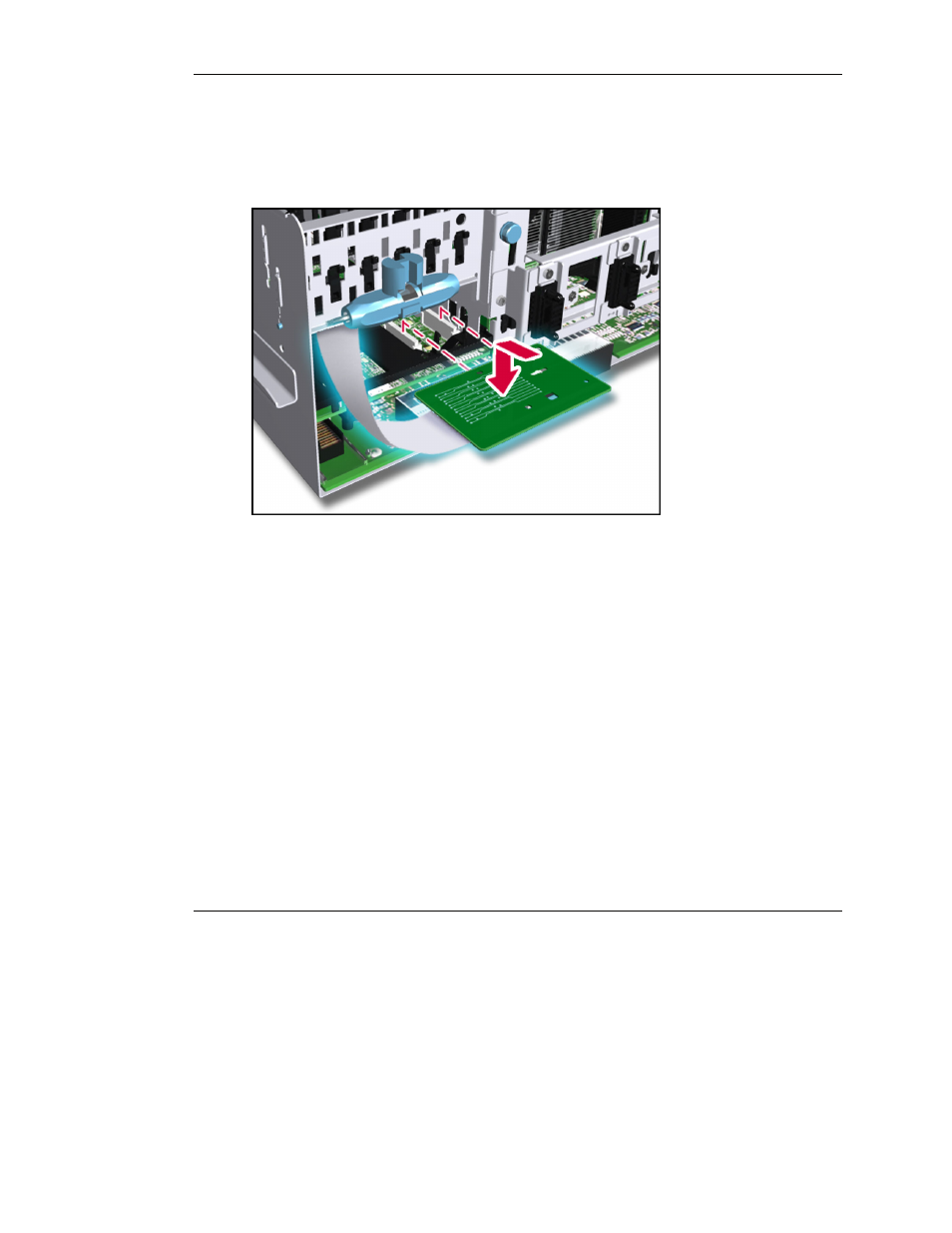

Figure 4-10: Installing the Integrated Array
Bypass assembly
