Installing the Server in a Rack

Installing the Rack Rail Assemblies

To install the rack rail assemblies in the rack:

1. From the front of the rack, identify the rear rack holes on the inside of the

vertical rack that you marked with the template.

2. Pull the rail compression lever toward you.

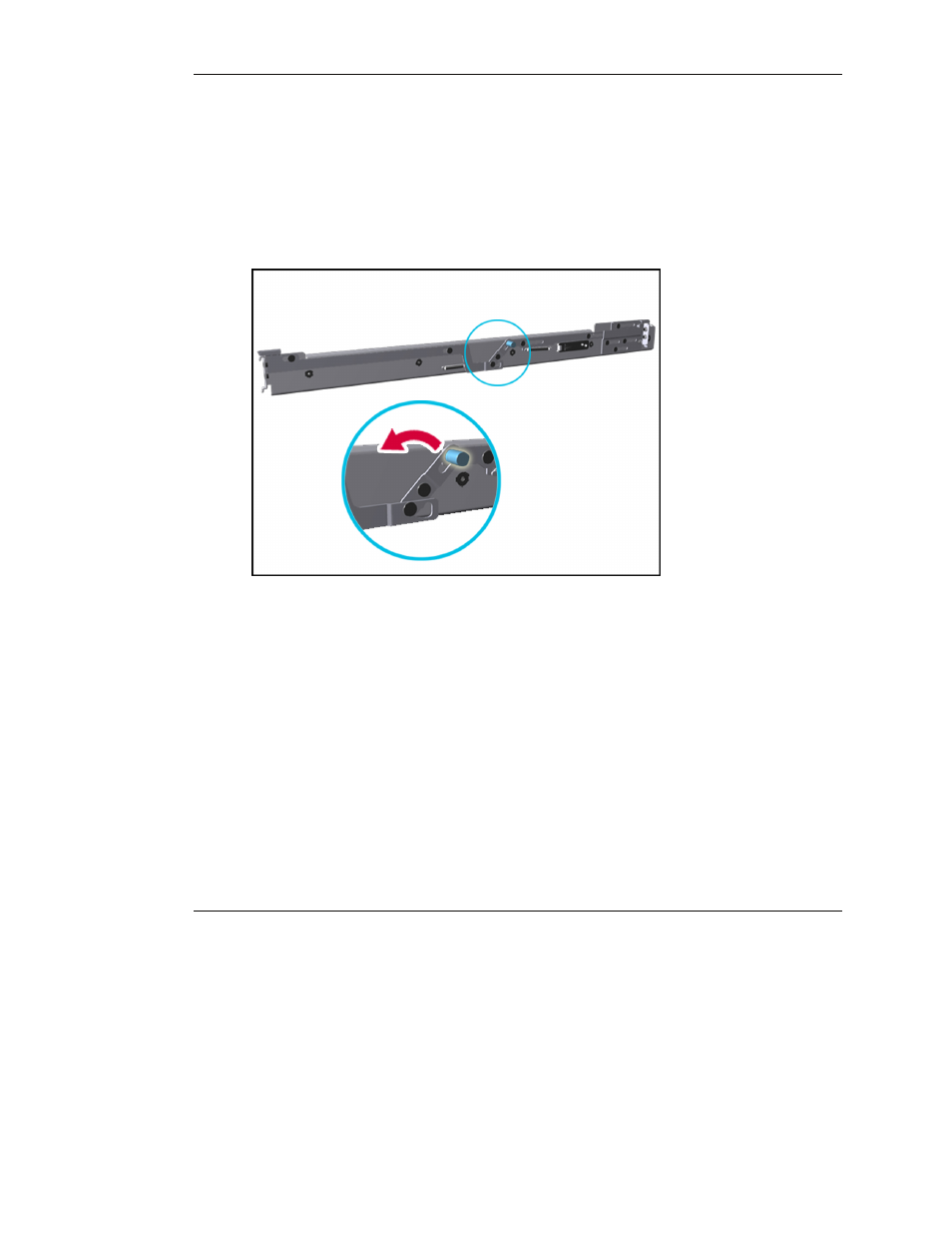

Figure 2-3: Pulling the rail compression lever
