HP Storage Mirroring V4.5 Software - Manual (Page 66)

5 - 19

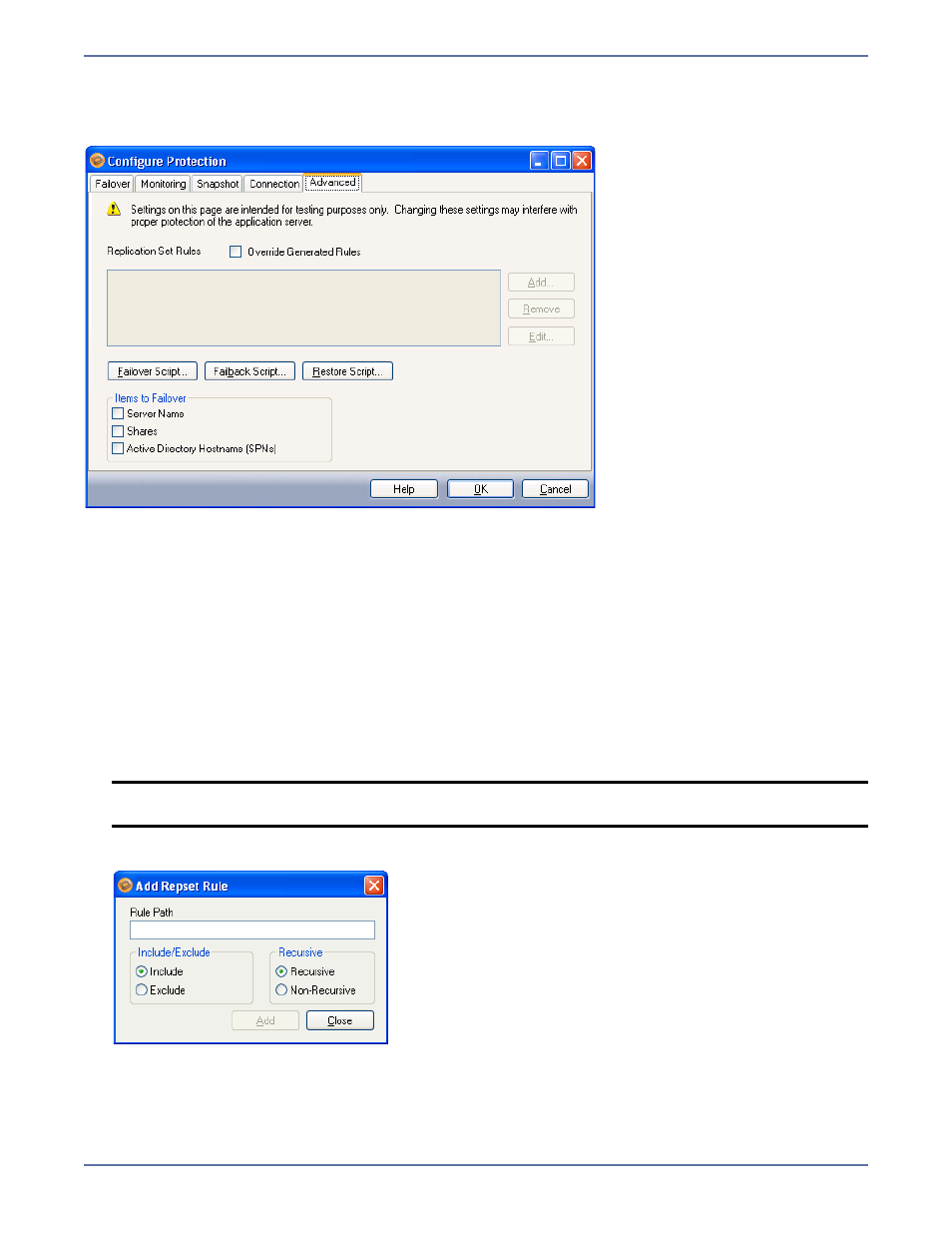

Advanced settings
The Advanced tab includes advanced configuration options.
Replication set rules
A replication set defines what directories/files are to be protected by Storage Mirroring. By default,
Application Manager selects all of the necessary directories/files to protect SQL based on your source
server configuration. These include the SQL application data and transaction logs, tempdb files, and
SQL error logs. By default, the Application Manager-generated replication set will be named
sqldag01__
.
You should only modify the replication set rules if there are additional directories/files specific to your
configuration that must also be protected with SQL. Modifying the default configuration for replication
set rules may affect whether data can be successfully replicated. Do not modify the replication set
unless you are very familiar with Storage Mirroring and SQL.
To change the replication set rules:
1. Select the Override Generated Rules checkbox.
2. To add a replication set rule, click Add. The Add Repset Rule dialog box will appear.
3. In the Rule Path field, type the directory that you want to protect or exclude.
4. In the Include/Exclude area, select whether to include or exclude the path from the replication
set.
NOTE: When this box is selected, the Protected Databases control on the Connection tab will
be disabled. For more information, see Protected Databases on page 5-14.
