8 - 11
Connection settings

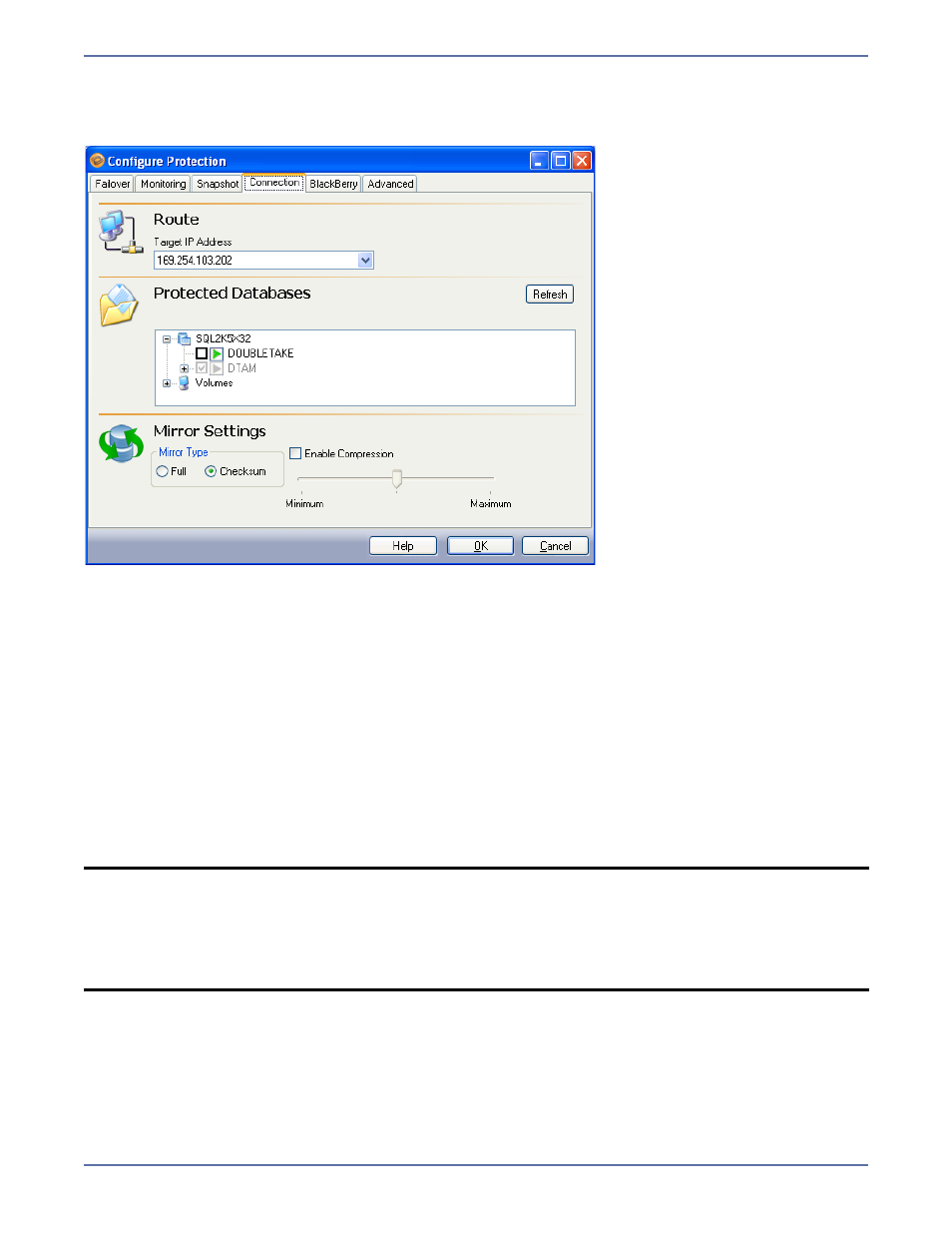

The Connection tab includes options that will be applied to the specified source/target connection.
Route
This setting identifies the Target IP Address that the Storage Mirroring data will be transmitted
through. You should only change this setting if you want to select a different route for Storage
Mirroring traffic. On a machine with more than one NIC, this increases the flexibility of configuring
Storage Mirroring activity. For example, you can separate regular network traffic and Storage
Mirroring traffic on a machine. The default ports will be used.
Protected Databases
Select the databases to protect. You can also select non-application specific data under the Volumes
folder.
To refresh the tree view to show new source directories or files that may have been added or
removed, select the logical node, then click the Refresh button. If a node in the volumes branch is
selected, then the items under that node will be refreshed.
Mirror type
The following options specify what files you want sent from the source to the target during a mirror.

Full—Copies all of the directories and files in the replication set to the target machine. If a mirror
has already been completed, another full mirror will overwrite the data on the target.
NOTE: You cannot un-select the databases holding the BES or MDS information.
If you do not want to protect the MDS database, clear the checkbox next to Protect MDS
services on the BlackBerry tab. For more information, see BlackBerry settings on
page 8-12.
If you need to reduce the amount of mirroring and replication traffic, you may choose to
deselect the tempdb database if it is not necessary.
