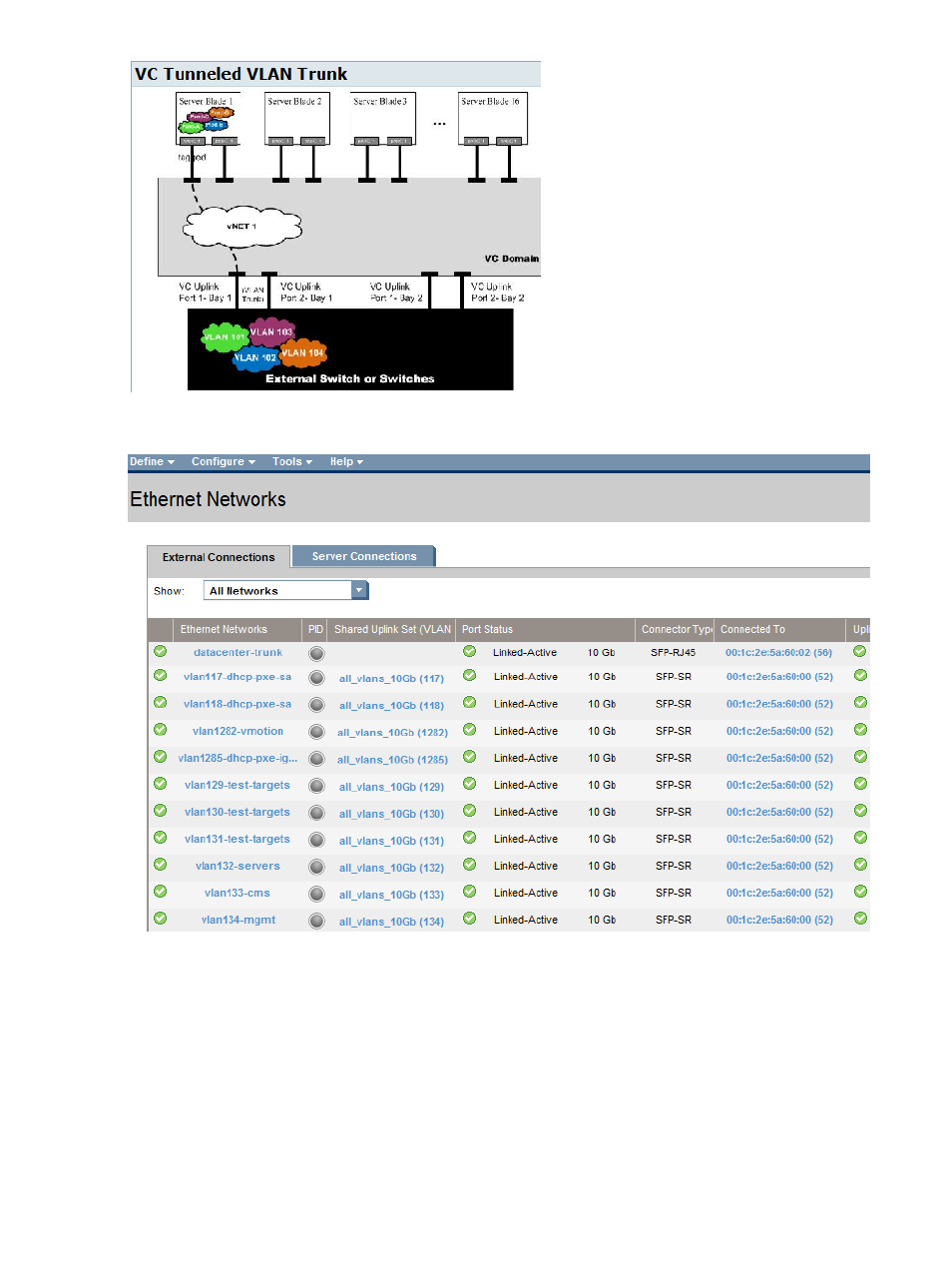

Following is an example of a Virtual Connect tunnel trunk configuration.
Physical networks discovered from Virtual Connect are represented as a subnet whether they are
a single network or a tunneled trunk network carrying multiple subnets.
Matrix infrastructure orchestration represents Virtual Connect networks based on the VC network
configuration. Following are characteristics of tunneled trunk Virtual Connect networks:
•
Subnets can be designated as a tunneled trunk
•
Set of subnets carried on the tunneled trunk can be defined
•
Tunneled trunks are designated as "Tunnel VLAN tags" in the network configuration
•
All traffic from an uplink port is tunneled through VC to the downlink port without modifying
VLAN tags
