5
3 PREPARATION
3.1 Inserting the Batteries
The CyberScan is packaged with 4 “AAA” alkaline batteries required for operation. To insert
the batteries into the CyberScan, follow the procedure outlined below.
1. Use a Phillips Head screwdriver, remove the two screws (Figure 4) with the hinge closed.
2. Remove the battery cover. Note the polarity and insert the batteries into the battery
compartment correctly (Figure 5).
3. Replace the battery cover into its position and screw back using the two screws removed
earlier.
Your CyberScan hand-held meter is now ready for operation.

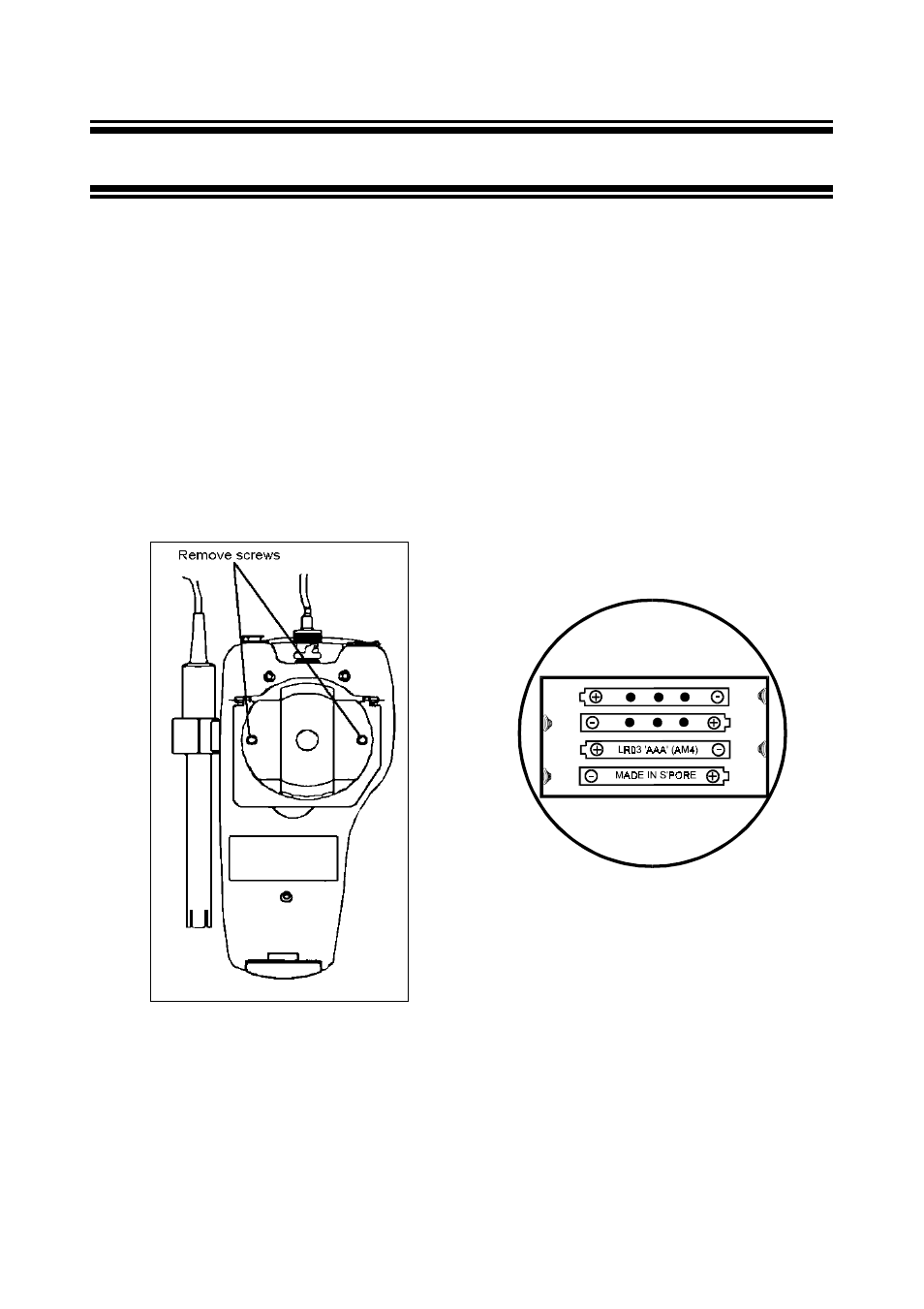

Figure 5: Battery position
Figure 4: Take out battery cover by
removing 2 screws
