45

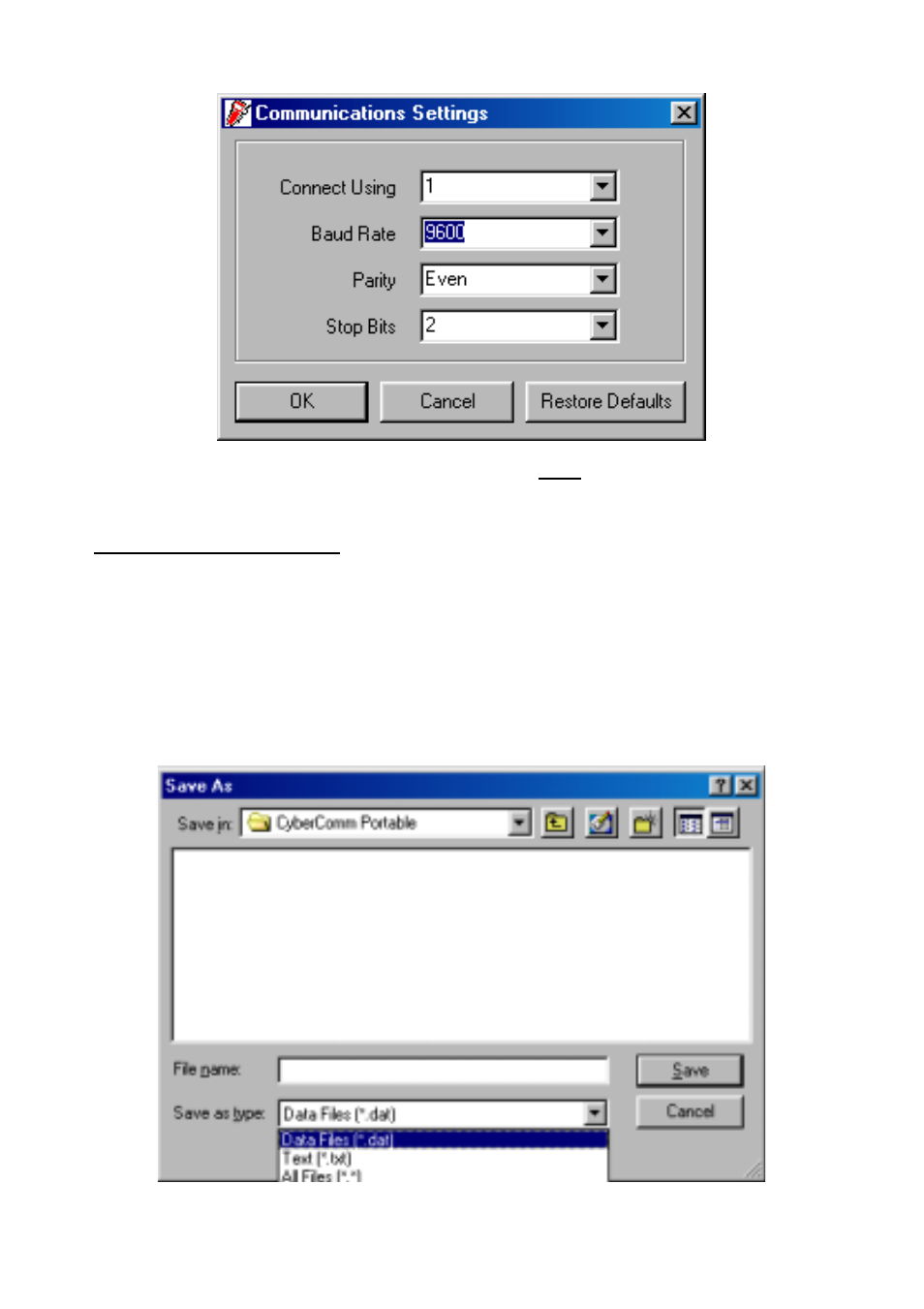

Figure 53 - Communication Settings for computer's Com port. It must match with COM port settings on CyberScan
pH 100 meter. Please refer to Section 3.4.1 “RS232C Configuration” for the settings.
COMMUNICATION SETTINGS
•
Connecting Use - To select communication port, 1 or 2.
•
Baud Rate - To select different baud rate, 2400, 4800, 9600 or 19200 bps (bits per
second).
•
Parity - To select different parity, Even, Odd or None.
•
Stop Bits - To select different stop bits, 1 or 2.
Figure 54 - Under SAVE AS menu, you can save your data as *.dat or *.txt formats
