Thermo Fisher Scientific CyberScan pH 10/pH 100 - Manual (Page 11)

7
3.2.3 Attaching the electrode onto the electrode Holder
The CyberScan pH meter is packed with two electrode holders (provided). They are designed
for easy use and installation. Care must be taken to avoid use of excessive force in the
process of attaching these components.
1. Locate the slot on the right-hand side of the meter.
2. Gently slide the flange of the holder into the slot on the meter. Make sure the holder is
secured properly into the slot (Figure 8).
3. You can attach the electrode holder in different positions (Figure 10).
3.2.4 To attach a second electrode holder:
The electrode holder is designed such that you can attach one holder onto another. Up to two
electrodes (using the BNC connector and phono-jack) can be used with the CyberScan meter
at any one time.
1. Align the flange of the second electrode holder with the slot of the first holder (Figure 9).
2. Slide the flange of the second holder into the slot of the first holder until the tops of the
holders are aligned and secure.

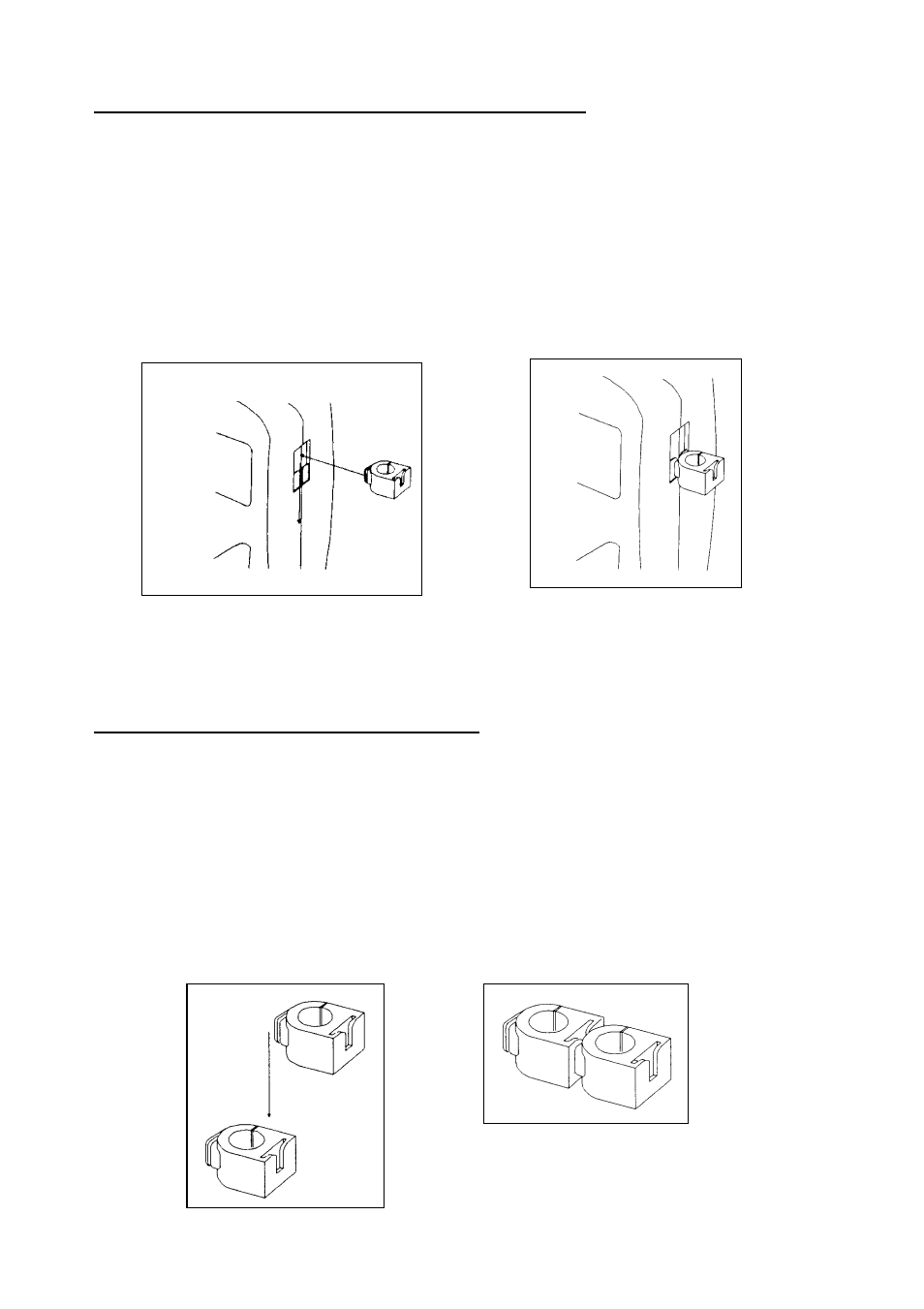

Figure 8: Slide in the electrode holder
Figure 9: Connecting 2 electrode
holders together
